For ice manager diverter valve

Advertisement

HCD/HCF1810RMS, HCD/HCF2110RMS
HCD1810NMS, HCD2110NMS
(See model number configurator on page 2 for details.)
Order parts online
www.follettice.com

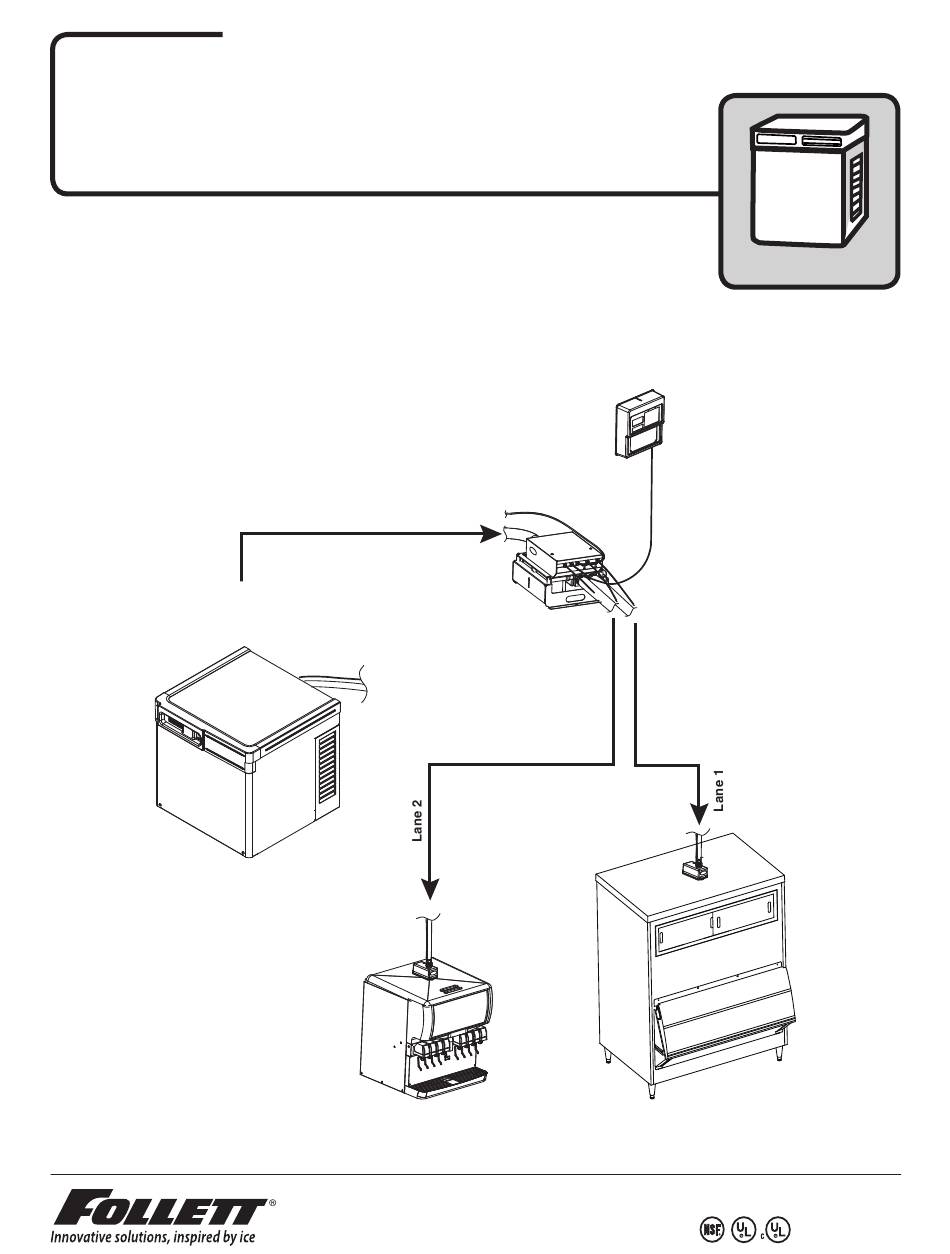

(1) Horizon
Chewblet
®
(purchased separately)
Horizon Elite
Ice Machine Models with RIDE
Installation Instructions for Ice Manager
Ice Machine
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Manager
Control Panel
Ice Manager
Diverter Valve
(2) ice storage units
(purchased separately)
Any combination of bins or dispensers
Technology
®
Diverter Valve
remote condensing
01157924R01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon Elite series and is the answer not in the manual?

Questions and answers

Summary of Contents for Follett Horizon Elite series

  • Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ® Installation Instructions for Ice Manager Diverter Valve ™ HCD/HCF1810RMS, HCD/HCF2110RMS HCD1810NMS, HCD2110NMS (See model number configurator on page 2 for details.) Order parts online www.follettice.com remote condensing Ice Manager Control Panel Ice Manager Diverter Valve (1) Horizon...
  • Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
  • Page 3 Horizon ice machine for use with Ice Manager diverter valve system The Ice Manager diverter valve system delivers ice to two ice storage units enabling a single Follett Horizon ice machine to meet demand for ice at two locations. The system’s sensors monitor ice levels in each storage unit and automatically switch ice delivery to the appropriate location.
  • Page 4: Unpack Ice Machine

    Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ ICE MANAGER remote condensing...
  • Page 5: Prepare The Installation Site

    • 10-70 psi (69-483kpa) • 45-90 F (7-32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes Drain ➌...
  • Page 6: Before Proceeding

    Louvered docking assembly Install the louvered docking assembly. BEFORE PROCEEDING Prior to installing the louvered docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation. An optional straight drain fitting is also supplied. You may need to remove the back panel of the docking assembly in order to re-orient or change the drain fitting.
  • Page 7 Undercounter installation requirements Top View ➌ ➊ 3.25" (83 mm) min. Access panel/ door on counter 22.25" min. (656 mm) 24" min. (609 mm No Lip ➋ DOCKING STATION • Prior to installing the louvered docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation.
  • Page 8: Ice Transport Tube

    Ice transport tube Install the ice transport tube. Ice transport tube installation. ➍ ➋ Hot Water 160 F (71 C) ➏ ➎ ➐ ➊ 1/4" ➌ Ice transport tube tips ➊ • Insulate entire length of ice transport tube ➋ •...
  • Page 9: External Connections

    External connections Connect utilities to louvered docking assembly. CAUTION • Plug must be accessible after final installation. Refrigerant Water and drain ➊ ➋ ➊ ➌ Minimum 8" ➏ radius 2 ft. x 1" OD silicone tubing • Braze supplied quick-connect lines onto stub-ins ➊...
  • Page 10: Internal Connections

    Internal connections Connect louvered docking assembly to ice machine. Ice transport tube installation Water line ➋ ➊ ➊ • Slide ice machine into louvered docking • Insert potable water line into valve ➊ assembly ensuring that drain tube is fully seated on barbed drain fitting ➊...
  • Page 11 TDS switch Power cord HIGH CLEAN • Set the TDS switch on the electrical box: • Position plate into opening and secure with supplied screw HIGH: for extended service life LOW: for low-scale water ICE MANAGER remote condensing...
  • Page 12: Front Cover

    Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ • Slide ice machine cover over machine ensuring that tabs on back of cover slip under louvers on back of louvered • Complete installation of condensing unit docking assembly ➊...
  • Page 13 Long tube run recommendations max. 2 ft (.6m) 1/4" • Pitch ice transport tube to allow melt water to drain towards ice machine ➊ • Secure insulated ice transport tube at least every 2 ft (.6m) to prevent dips or traps ➋...
  • Page 14 ICE MANAGER remote condensing...
  • Page 15 ICE MANAGER remote condensing...
  • Page 16 Horizon, Horizon Elite, Maestro, Harmony, Ice Manager, SafeCLEAN, Sani-Sponge and Vision are trademarks of Follett LLC. Chewblet, RIDE and Follett are registered trademarks of Follett LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA 01157924R01 Toll free (877) 612-5086 • +1 (610) 252-7301 www.follettice.com...
