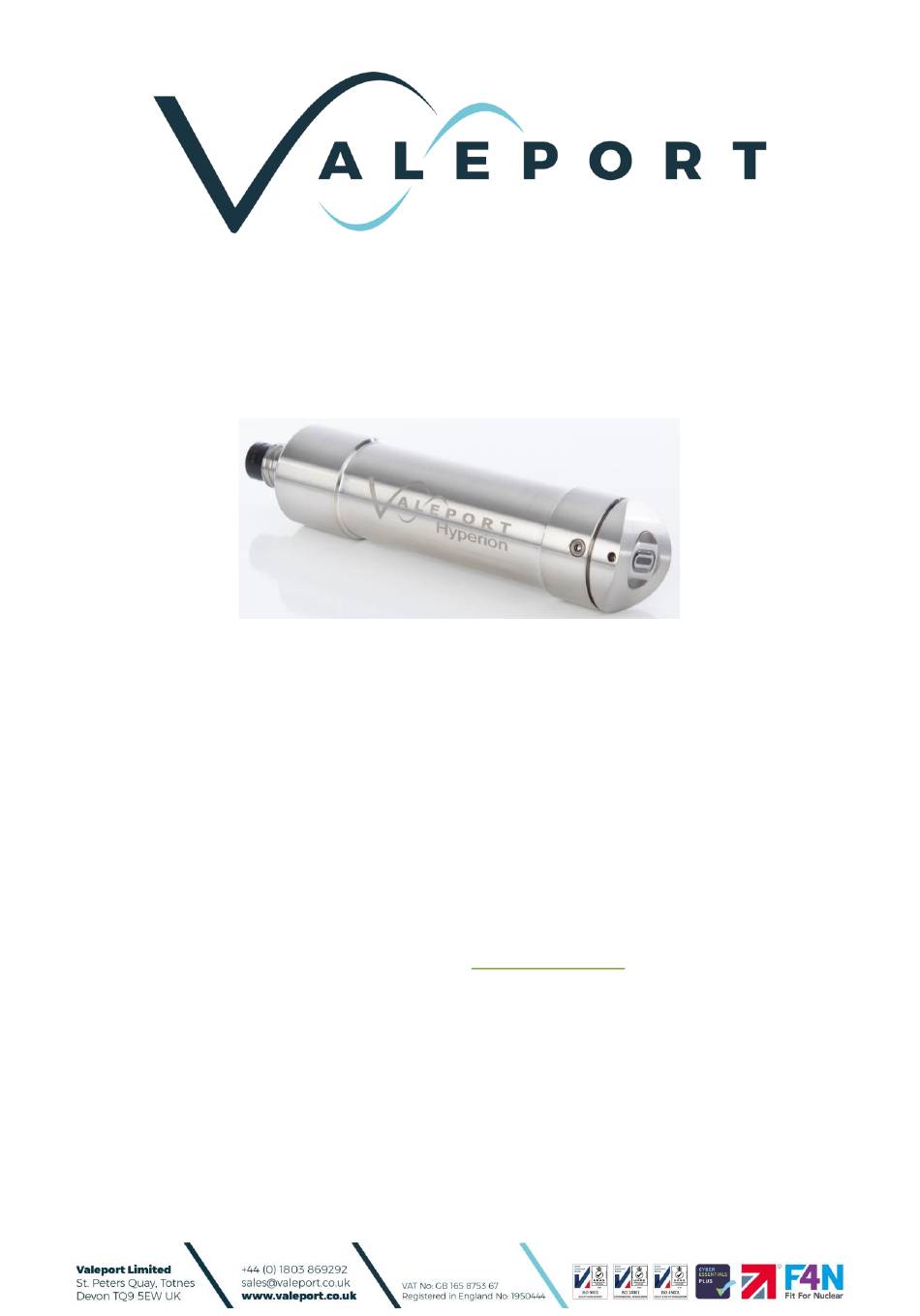

HYPERION OPTICAL SENSORS
OPERATING MANUAL
Document No:
MANUAL-1013637447-3 | issue: 1.6
Date:
January 2022
This document was prepared by Valeport Limited, the Company, and is the property of the
Company, which also owns the copyright therein. All rights conferred by the law of the copyright
and by virtue of international copyright conventions are reserved to the Company. This document
must not be copied, reprinted or reproduced in any material form, either wholly or in part, and the
contents of this document, and any method or technique available there from, must not be
disclosed to any other person whatsoever without the prior written consent of the Company.
Valeport Ltd
St Peter's Quay
Totnes, Devon TQ9 5EW
United Kingdom
As part of our policy of continuous development, we reserve the right to alter, without prior notice,
all specifications, designs, prices and conditions of supply for all our equipment
Phone:
+44 1803 869292
email:
sales@valeport.co.uk
Web:
www.valeport.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Valeport Hyperion Chlorophyll a
Summary of Contents for Valeport Hyperion Chlorophyll a
- Page 1 Date: January 2022 This document was prepared by Valeport Limited, the Company, and is the property of the Company, which also owns the copyright therein. All rights conferred by the law of the copyright and by virtue of international copyright conventions are reserved to the Company. This document...
-
Page 2: Table Of Contents
Mode M - Continuous Measurement ................21 Hash (#) Codes ......................22 Care and Maintenance ................... 23 Software ......................... 24 DataLog x2 ........................24 Valeport Configure App ....................24 8.2.1 Interface to the Hyperion .................... 25 8.2.2 Configure the Instrument .................... 26 8.2.3... -
Page 3: Introduction - Hyperion Optical Sensor
Instrument has a wide range (9-28V DC) isolated power supply, data output up to 16Hz and RS232, 485 and Modbus communication protocols. The Hyperion sensors can also be integrated into Valeport's SWiFT, rapidPro CTD and fastCTD profilers and interfaced to MIDAS CTD+ type instruments. -
Page 4: Sensors
(pre SN 75100: 2 gain settings: 0-25 and 0-500 (software controlled)) Instrument Detection limit: <0.01 ppb* Actual Detection limit: 0.03 ppb** Linearity: 0.99 R Response Time: 0.03 to 2 sec * 3x SD in RO water ** Calibrated against Fluorescein solution © 2022 – Valeport Ltd Page | 4... -
Page 5: Phycocyanin
0-1000 ppb Instrument Detection limit: <0.03 ppb* Actual Detection limit: <1 ppb** Linearity: 0.99 R Response Time: 0.03 to 2 s * 3x SD in RO water ** Calibrated against Sulforhodamine B solution © 2022 – Valeport Ltd Page | 5... -
Page 6: Linear Observation Range
To perform a quick linearity check, dilute the sample 1:1 with RO water. If the reading decreases by 50%, the sample is in the linear range. If the reading decreases by less than 50% or even increases, the sample is above the linear range. © 2022 – Valeport Ltd Page | 6... -
Page 7: Quenching
Photo-bleaching is dependent on exposure (intensity of light and duration) and wavelength (UV is more damaging than longer wavelengths). Use of more robust fluorophores is recommended to avoid photo-bleaching. * Reverse Osmosis ** De-Ionised © 2022 – Valeport Ltd Page | 7... -
Page 8: Turbidity
A photometric test report was commissioned by Valeport in accordance with BS EN 62471. For this the LED was set to 25 times the operational power and the sensor was classified as exempt. However, it is best practice to avoid extended exposure to the LED and it is recommended not to look directly into the sensor windows. -
Page 9: Physical Characteristics
Dimensions: 40mmØ x 179.5mm (including connector) Weight 0.50 kg (in air) 0.26 kg (in water) Operating Temperature: 60°C max (without damaging the optical sensor) 2.5.1 Dimensions As part of a miniTYPE instrument © 2022 – Valeport Ltd Page | 9... -
Page 10: Data Acquisition
Prior to November 2020 (Serial No: 75100) a Hyperion was set to the default range, for its specific analyte, before leaving Valeport. After November 2020 MK2 PCBs were installed in all Hyperions and that removed the need to set the gain. If you have bought your Hyperion after November 2020 you can ignore this section. - Page 11 0903705A9 hyperion Nov 2 2020 14:03 >#038 Valeport tests >#401 ERROR PROTECTED >#401 ERROR PROTECTED >#401 ERROR PROTECTED >#401 ERROR PROTECTED >#401 ERROR PROTECTED >#401 ERROR PROTECTED >#401 ERROR PROTECTED ># ERROR ># ERROR >#400;5 ERROR PROTECTED © 2022 – Valeport Ltd Page | 11...
-
Page 12: Turbidity
3.3 Functional Check To perform a functional test connect the Hyperion to both power and PC using the supplied Y lead. Run DataLog x2, available from the Valeport Website as a free download - valeport.download Connect the Hyperion to DataLog x2 or Terminal x2 using the connect wizard:... - Page 13 Hyperion Optical Sensors - Operating Manual: MANUAL-1013637447-3 | issue: 1.6 Leave this dialogue in its default settings, then select Next: © 2022 – Valeport Ltd Page | 13...
- Page 14 Hyperion Fluorometers supplied after November 2020 (Serial No: 75100) do not require the range to be set. Ignore this setting, if you get an error concerning #400 commands simply ignore it, see above. Select Next © 2022 – Valeport Ltd Page | 14...
- Page 15 MANUAL-1013637447-3 | issue: 1.6 If there are any new settings to be up loaded to the instrument pressing Finish will send them: Check that data is being received (field 4) see Data Output Format © 2022 – Valeport Ltd Page | 15...
- Page 16 By altering the angle of the target, the magnitude of the reading should change thereby showing the correct operation of the sensor. If the test target is missing then a piece of good quality white paper can be used. © 2022 – Valeport Ltd Page | 16...
-
Page 17: Operation With 400 Series Instruments
Ensure the 400 unit internal Power source (from 0400550) for the Hyperion is connected as per cable form 0400C321. • Ensure the latest version of Hyperion interface code (04007181) is installed in the Quartzonix Board (0400513) © 2022 – Valeport Ltd Page | 17... -
Page 18: Electrical
RS232 GND RS232 RX (in to logger) RS232 TX (out of logger) J2, 2 way FCI Hyperion Power +’ve NO CONNECTION (Blank off to prevent shorting) Hyperion Power –‘ve J2, 2 way FCI © 2022 – Valeport Ltd Page | 18... -
Page 19: Communications
Parameter Units Units ug/l for Chlorophyll a ppb for Fluorescein Operating Mode String C02 (default) Check Sum An exclusive OR sum between all characters between the '$' and the '*'of the string © 2022 – Valeport Ltd Page | 19... -
Page 20: Data Output Format $Pvhy2 (Post November 2020)
If the sampling that has been setup such that only one measurement is used to produce a reading then no Standard Deviation is generated and the output becomes: Turbidity - $PVHY2,01,8,0.48705,,NTU,1.65588,,NTU,M1,*6D Fluorometer - $PVHY2,01,1,0.816,,ug/l,,,,C02,*24 Otherwise: Turbidity - $PVHY2,01,8,0.48705,0.012,NTU,141.65588,0.023,NTU,M1,*6D Fluorometer - $PVHY2,01,1,0.816,0.012,ug/l,,,,C02,*24 © 2022 – Valeport Ltd Page | 20... -
Page 21: Operating Modes
Other operational modes and filter settings are available - please contact Valeport with your specific requirements. 6.3.1 Mode C - Continuous Mode C is the default setting for Hyperion. -
Page 22: Hash (#) Codes
Read the averaging length Set fluorometer gain – MK1 PCB #400 fluoro_gain Redundant for Hyperions purchased after Nov 2020 (serial numbers below 75100) Report Fluorometer gain – MK1 PCB #401 fluoro_gain © 2022 – Valeport Ltd Page | 22... -
Page 23: Care And Maintenance
Organic solvents should not be used to clean the Hyperion Strong acids and bases should be avoided If fouling of the window is considerable, the unit should be returned to Valeport for servicing The instrument should be washed in fresh water before storage in the equipment case. -
Page 24: Software
As a minimum you must have version 0903707 or higher to use the App. If not, you will see a warning: "Warning! 0903707 Firmware Required" Contact Valeport for information on how to upgrade your firmware should it be required. © 2022 – Valeport Ltd... -
Page 25: Interface To The Hyperion
Click the button. 8.2.1.1 Valeport Configure App Without an Instrument If you do not have an instrument or would like to setup a configuration file to load into another instrument in preparation for a future deployment, select the tick box on the opening dialogue –... -
Page 26: Configure The Instrument
The Terminal window can also be used to send specific # commands to the instrument should that ENTER be necessary. Type into the bottom line in the window and press Click on the other Tabs to see relevant information and fine tune your set up, for example Communication: © 2022 – Valeport Ltd Page | 26... -
Page 27: Configure With Operation As Part Of An Envirolog System
To set the instrument into a Run Mode select the button at the bottom of the screen. 8.2.3 Configure with Operation as Part of an EnviroLog System © 2022 – Valeport Ltd Page | 27... - Page 28 You can follow the setup commands in the terminal window: Once complete the Hyperion is setup and ready to be interfaced to the EnviroLog system. You must ensure that if you are using multiple instruments each has a different Address. © 2022 – Valeport Ltd Page | 28...
-
Page 29: Ordering And Part Numbers
0901002-TU Hyperion-T, Turbidity Sensor Titanium housed, 6000m rated Supplied with: Y lead - power and comms DataLog x2 software Manual and transit case 9.3 Accessories Part No. Description 0901SA7 Ambient Light Shield © 2022 – Valeport Ltd Page | 29... -
Page 30: Declarations Of Conformity
Any changes or modifications to the product or accessories supplied, that are not authorised by Valeport Ltd, could void the CE compliance of the product and negate your authority to operate it. This product has demonstrated CE compliance under conditions that include the use of shielded cables. -
Page 31: Eu Declaration Of Conformity - Ce Marking
Hyperion Optical Sensors - Operating Manual: MANUAL-1013637447-3 | issue: 1.6 10.2 EU Declaration of Conformity - CE Marking © 2022 – Valeport Ltd Page | 31...
