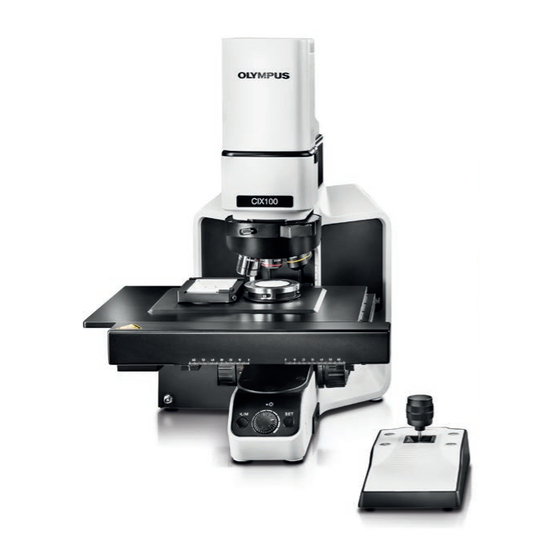

- Page 1 ® Installation Manual CIX Height Measurement Solution OLYMPUS Cleanliness Inspector System Optical Microscope and Accessories English...
- Page 2 Any copyrights relating to this manual shall belong to Olympus Soft Imaging Solutions GmbH. We at Olympus Soft Imaging Solutions GmbH have tried to make the information contained in this manual as accurate and reliable as possible. Nevertheless, Olympus Soft Imaging Solutions GmbH disclaims any warranty of any kind, whether expressed or implied, as to any matter whatsoever relating to this manual, including without limitation the merchantability or fitness for any particular purpose.
-
Page 3: Table Of Contents
Solution CIX Height Measurement Contents CIX Height Measurement Solution ......4 Safety instructions ...............4 Installing the objective ..............4 Installing the Solution..............8 Configuring the objective ............12 Calibrating the objective ............13 Installation Manual... -
Page 4: Cix Height Measurement Solution
Solution CIX Height Measurement CIX Height Measurement Solution This manual describes the installation of the objective as well as the installation and configuration of the software for the CIX Height Measurement Solution. Read this manual carefully before installing and configuring the system. Safety instructions Caution Pinching hazard... - Page 5 Solution CIX Height Measurement 4. Use the joystick to move the stage all the way back towards the frame. 5. Loosen the screw that holds the nosepiece using the hexagonal screwdriver. To do that, use the screw that is located at the microscope frame.
- Page 6 Solution CIX Height Measurement 6. Carefully pull the nosepiece forwards along the runner. 7. CIX90: The nosepiece is connected with a loose cable. Gently remove the plug. 8. Remove the cover on position 4 of the nosepiece. 9. Remove the objective from its packaging. 10.
- Page 7 Solution CIX Height Measurement 12. CIX100: Place the nosepiece in the runner on the microscope and push it slowly all the way to the back. 13. When the nosepiece is all the way back on the runner, tighten the screw with the hexagonal screwdriver.
-
Page 8: Installing The Solution
Solution CIX Height Measurement Installing the Solution A license key is required for the installation of the software. You can find the license key on the license certificate in the accompanying envelope. Insert the DL-DVD into your DL-DVD drive. The start dialog box of the installation program should be automatically displayed on your screen. - Page 9 Click the [Contact Server] button to complete the activation of the OLYMPUS Cleanliness Inspector Software. Note: If you are not connected to the Internet, but are able to exchange files with another computer that does have an Internet connection, please follow the steps in the next dialog box.
- Page 10 Solution CIX Height Measurement The following website is used for the activation. Installation Manual...
- Page 11 Note: If you are not connected to the Internet and are not able to exchange files with another computer that does have an Internet connection, you can activate the OLYMPUS Cleanliness Inspector Software by telephone. Call our Customer Service Center and follow the instructions below.
-
Page 12: Configuring The Objective
Solution CIX Height Measurement Configuring the objective 1. Start the software. 2. Click the [Hardware] button on your software’s start page. The [Device List] dialog box opens. 3. Click the [OK] button. The [Device Settings] dialog box opens. 4. -
Page 13: Calibrating The Objective
Solution CIX Height Measurement Calibrating the objective 1. Rotate the coarse focus adjustment knob to move the stage as high as it will go. 2. Perform the following calibration processes for the newly installed objective: [Stage Limits] [XY Objective Shift / Parfocality] ... - Page 14 Ground Floor, Tower-C, SAS Tower, The Medicity Complex, Sector- 38, Gurgaon 122001, Haryana, INDIA OLYMPUS KOREA CO., LTD. 8F Olympus Tower A, 446 Bongeunsa-ro, Gangnam-gu, Seoul, 135-509 Korea OLYMPUS AUSTRALIA PTY. LTD. 3 Acacia Place, Notting Hill VIC 3168, Australia OLYMPUS SINGAPORE PTE LTD.
