This analyzer employs a UIS (Universal Infinity System) optical design. By attaching the analyzer in a slider-compatible
revolving nosepiece, gout examination can be performed by operating the lever.
Applicable revolving nosepieces: U-D6RE, U-D7RE, U-D6REM, U-D5BDRE, U-D5BDREM, U-P4RE, U-P6RE
1

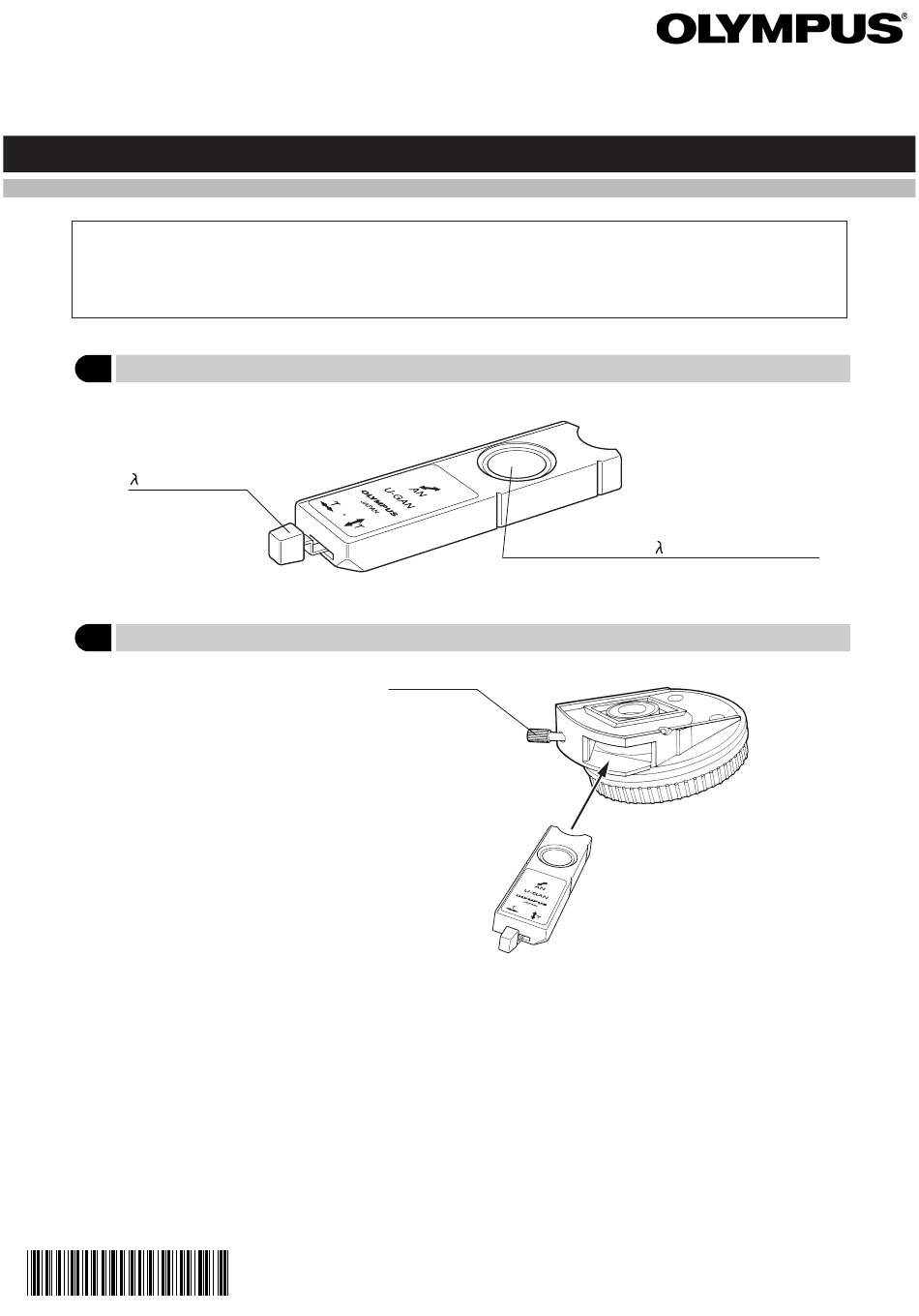

External View
-plate rotation lever
2
Installation
1. Loosen the clamping knob on the
revolving nosepiece and remove the
inserted slider or dummy slider.
2. Hold the U-GAN gout analyzer with
the labeled surface up, insert it all
the way, and tighten the clamping
knob.
3. Engage the U-POT polarizer or a po-
larizer with built-in condenser in the
light path.
A X 9 8 8 8

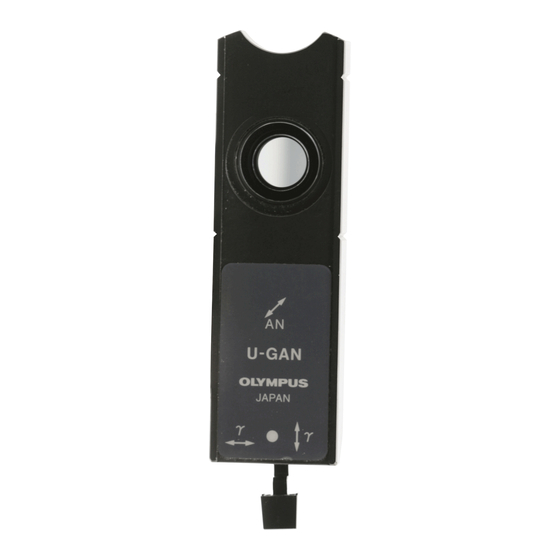

GOUT ANALYZER
U-GAN
With built-in analyzer and -plate (sensitive color plate)
Clamping knob
INSTRUCTIONS
Slider-compatible revolving nosepiece
Gout analyzer
U-GAN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Olympus U-GAN
Summary of Contents for Olympus U-GAN
- Page 1 1. Loosen the clamping knob on the Clamping knob revolving nosepiece and remove the inserted slider or dummy slider. 2. Hold the U-GAN gout analyzer with the labeled surface up, insert it all the way, and tighten the clamping Slider-compatible revolving nosepiece knob.
- Page 2 Other Observations Brightfield Observation Loosen the clamping knob of the revolving nosepiece clamping the U-GAN, pull out the U-GAN and stop at a click position. (Tighten the clamping knob there.) Now the -plate is disengaged from the light path so brightfield observation is available.
