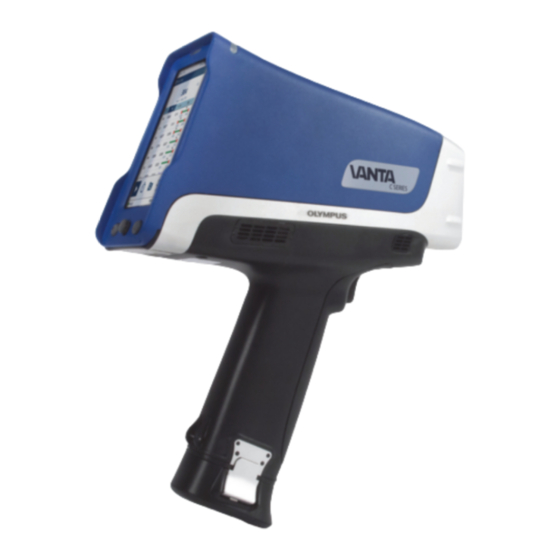

Vanta Family
X-Ray Fluorescence
Getting Started Guide

Intended Use

Vanta X-ray fluorescence analyzers are handheld energy dispersive X-ray fluorescence spectrometers,
generally referred to as XRF analyzers. Do not use the Vanta for any purpose other than its intended
use.

Instruction Manual

Before use, thoroughly review the Vanta Family User's Manual. Use the product as instructed. The
User's Manual contains essential information on how to use this Olympus product safely and
effectively. Keep the User's Manual in a safe, accessible location.

Safety Signal Word

CAUTION
Indicates a potentially hazardous situation and calls attention to a procedure, practice, or the like,
which, if not correctly performed or adhered to, may result in minor or moderate personal injury,
material damage, particularly to the product, destruction of part or all of the product, or loss of data.

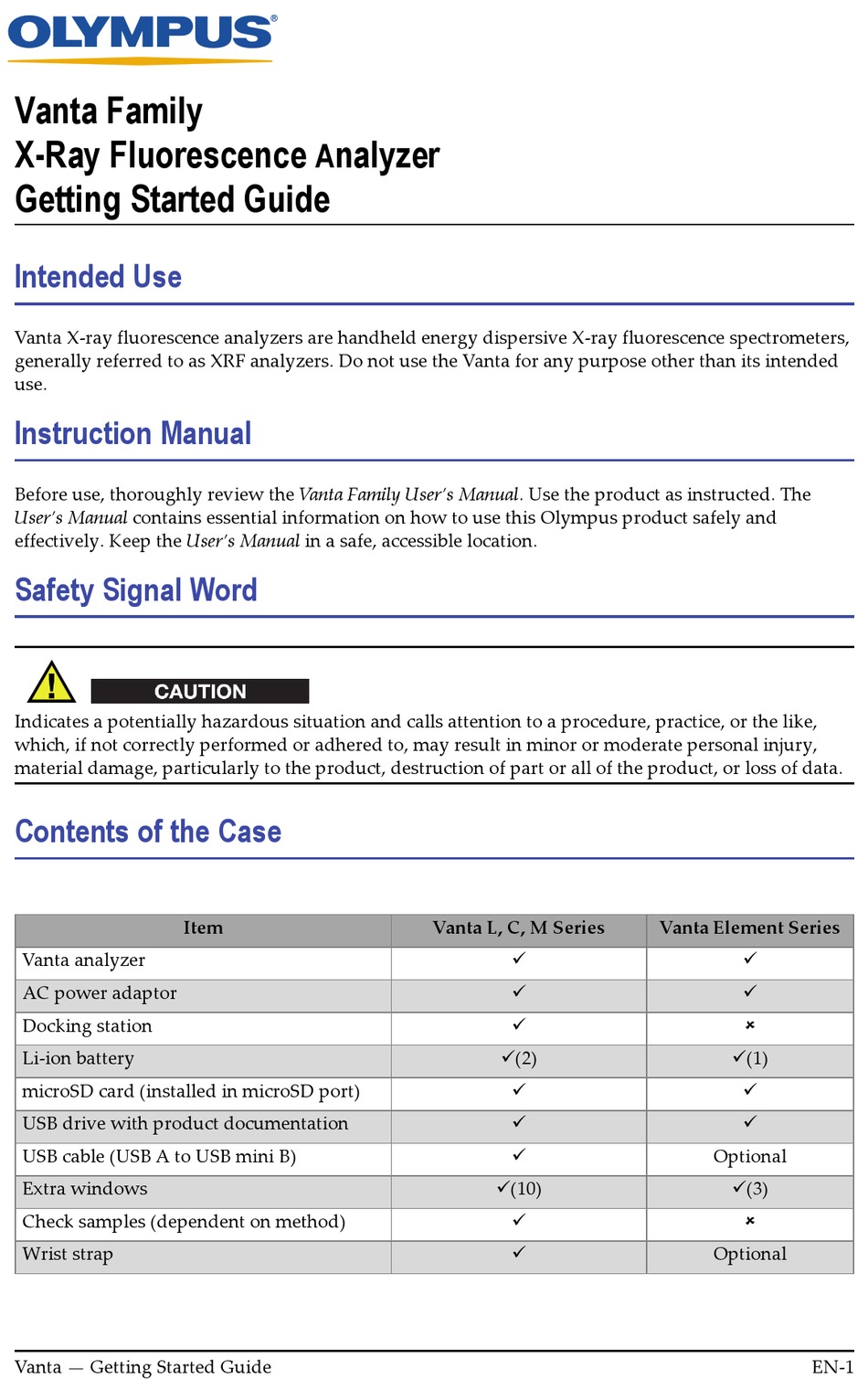

Contents of the Case

Vanta analyzer
Docking station
Li-ion battery
microSD card (installed in microSD port)
USB drive with product documentation
USB cable (USB A to USB mini B)
Extra windows
Check samples (dependent on method)
Wrist strap
Vanta — Getting Started Guide
nalyzer
A
Item
Vanta L, C, M Series
(2)
(10)
Vanta Element Series
(1)
Optional
(3)
Optional
EN-1
