- Page 1 ® System Setup Guide CIX100 OLYMPUS Cleanliness Inspector System Optical Microscope and Accessory...
- Page 2 Any copyrights relating to this documentation shall belong to Olympus Soft Imaging Solutions GmbH. We at Olympus Soft Imaging Solutions GmbH have tried to make the information contained in this documentation as accurate and reliable as possible. Nevertheless, Olympus Soft Imaging...
-
Page 3: Table Of Contents
Contents OLYMPUS CIX100 Cleanliness Inspector System ... . 5 Correct use of the system..........5 About this manual. - Page 4 Contents Proper selection of the power supply cord....32 Notes on conformity and disposal ......35 15.1 CE Conformity (Europe) .
-
Page 5: Olympus Cix100 Cleanliness Inspector System

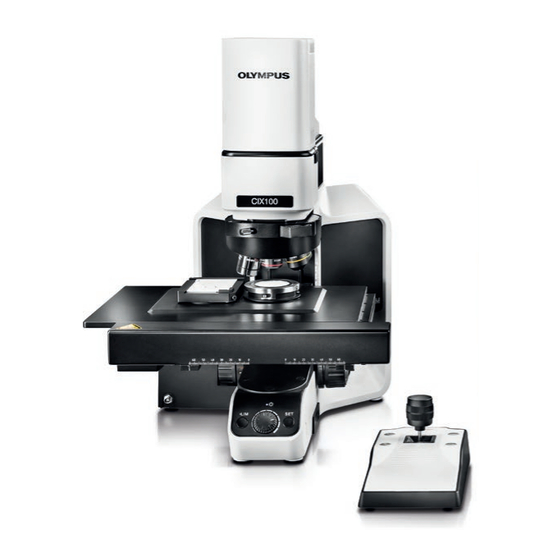

The OLYMPUS CIX100 Cleanliness Inspector System is designed exclusively for performing microscopic cleanliness analyses on circular filters. Undesignated use can result in injury or damage to property. Olympus Soft Imaging Solutions GmbH takes no responsibility for damaged caused by undesignated use. -
Page 6: Safety Instructions
OLYMPUS Cleanliness Inspector CIX100 2 Safety instructions Safety instructions Read and note the following safety instructions before setting up and using the OLYMPUS Cleanliness Inspector System. Symbols and safety instructions The following symbols and safety instructions warn of dangers when operating your system and give you useful tips. -
Page 7: Symbols On The Product
Use the light source exclusively to illuminate samples. Notes on cables Caution Always use the power cord provided by Olympus. The electrical safety and electromagnetic compatibility of the device can not be guaranteed if an unsuitable power cord is used. If no suitable power cord has been provided, you can find details of suitable power cords on page 32 of the “Proper selection of the power supply cord”... -
Page 8: Avoiding Device Damage
OLYMPUS Cleanliness Inspector CIX100 2 Safety instructions Avoiding device damage Attention Device damage through manual operation of the stage The stage can be damaged by manual operation. Use the joystick to move the stage or to change its height. Attention... -
Page 9: Notes On Placement
OLYMPUS Cleanliness Inspector CIX100 2 Safety instructions Notes on placement • The weight of the microscope system is approx. 18 kg. Consider this weight when selecting the work surface and method for lifting the microscope system. • Place the microscope system on a sturdy level table or bench, taking care not to block the ventilation slots on the underside of the frame. -
Page 10: Conditions For Placing, Operating And Storing
Conditions for placing, operating and storing • The maximum permissible range for the ambient temperature during operation of the CIX100 system is 5 °C to 35 °C. • The maximum relative humidity: 80% at temperatures up to 31 °C, linearly decreasing to 70% at 34 °C, 60% at 37 °C, and 50% relative humidity at... -
Page 11: Setting Up The System
4 Setting up the system Setting up the system Attention Only connect the modules specified by Olympus to the ports. Plug the individual connector plugs in the right way around and tighten the lock screws, if present. Unpacking and positioning the components Figure 2: Unpacking the components 1. - Page 12 OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system 3. Remove the box with the instructions and the box of cables (3 + 4). 4. Open the protective foil and put it over the edge of the box. Attention Device damage through improper lifting of the microscope system.
-
Page 13: Connecting The Cables
OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system Connecting the cables Camera cable Power cord and power adapter 1 (X) 2 (Y) Power cord 3 (Z) Power cord and power adapter Motor cable RS-232C cable DVI cable USB 2.0 cable... - Page 14 OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system Caution Always use the power cord provided by Olympus. The electrical safety and electromagnetic compatibility of the device can not be guaranteed if an unsuitable power cord is used. If no suitable power cord has been provided, you can find details of suitable power cords on page 32 of the “Proper selection of the power supply cord”...
- Page 15 OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system Connecting the mouse and keyboard with the computer 1. Plug the mouse's USB cable and the keyboard's USB cable into two of the computer's USB ports. Connecting the joystick to the computer 1.
- Page 16 OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system 2. Plug the other end of the RS-232C cable into the computer. Figure 8: RS-232-C cable and computer port 3. Connect the control box's power cord with the power adapter. 4. Plug the power adapter’s plug into the control box.
- Page 17 OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system Connecting the camera to the computer 1. Plug the camera's USB-3.0 cable into the computer's USB-3.0 PCI express card port. The camera's cable is located above the vertical illuminator. Figure 10: Camera cable and computer port Connecting the stage to the microscope and the computer 1.
- Page 18 OLYMPUS Cleanliness Inspector CIX100 4 Setting up the system 4. Connect the stage to the computer. To do this, plug the other end of the motor cable into the port on the computer. Figure 12: Motor cable and computer port 5.
-
Page 19: Connecting The Power Cord
Caution Always use the power cord provided by Olympus. The electrical safety and electromagnetic compatibility of the device can not be guaranteed if an unsuitable power cord or any other unsuitable cables are used. -
Page 20: Switching On The System
OLYMPUS Cleanliness Inspector CIX100 5 Switching on the system Switching on the system 1. Switch on the microscope. 2. First switch on the monitor, then the computer. Inserting hardware components Caution Pinching hazard When the stage moves, gaps appear. This creates a pinching hazard. -
Page 21: Starting Cix Asw
OLYMPUS Cleanliness Inspector CIX100 5 Switching on the system Starting CIX ASW 1. Double click the CIX button on the desktop. The software starts. 2. Selected a language for the user interface. 3. To do this, click the [System Information] >... -
Page 22: Changing The Language Of The Operating System
OLYMPUS Cleanliness Inspector CIX100 6 Changing the language of the operating system Changing the language of the operating system An English version of the Microsoft Windows 10 operating system is installed on the system’s computer. Language packs for German, French, Spanish, Japanese, Chinese and Korean are also available on the system. -
Page 23: Changing The Input Language
OLYMPUS Cleanliness Inspector CIX100 6 Changing the language of the operating system Changing the input language All of the languages that appear in the Language dialog box can also be used as an input language for the keyboard and as a keyboard layout. -
Page 24: Changing The Language Of Microsoft Office
Microsoft Office Support website. Software updates Please contact the local distributor from whom you acquired the product to inquire about software updates for the OLYMPUS Cleanliness Inspector Software (CIX ASW). System Setup Guide... -
Page 25: Care And Maintenance
OLYMPUS Cleanliness Inspector CIX100 9 Care and maintenance Care and maintenance Your OLYMPUS CIX100 Cleanliness Inspector System doesn't require any maintenance. If you have any questions or problems, please contact our customer service: • E-mail: support@olympus-sis.com • Phone: (+ 49) 251-79800-6444, fax: (+ 49) 251-79800-6445 Cleaning the particle standard device Make sure to keep the particle standard device clean and free of dust. - Page 26 OLYMPUS Cleanliness Inspector CIX100 10 Troubleshooting When the images have been assembled this way, it indicates that the [Camera-to-Stage Rotation] calibration is no longer valid. Solution 1. Perform the calibration processes [Manual Magnification Calibration] [Camera-to-Stage Rotation]. Clicking the [Calibration] button on the home page of the software opens the dialog box that contains the calibration processes.
-
Page 27: System Diagram
OLYMPUS Cleanliness Inspector CIX100 11 System diagram System diagram Camera Camera Adapter Single port tube with lens Vertical illuminator Revolving nosepiece System Computer and monitor microscope Objectives 1,25x 5x 10x Control box Joystick Motorized focus CIX ASW drive Microsoft Office 2016... -
Page 28: System Components
OLYMPUS Cleanliness Inspector CIX100 12 System components System components The OLYMPUS CIX100 Cleanliness Inspector System is composed of the following components. CIX100 Microscope system System microscope Power cord Motorized focus drive Vertical illuminator Revolving nosepiece Objectives Camera Camera Adapter Single port tube with lens... - Page 29 OLYMPUS Cleanliness Inspector CIX100 12 System components Computer HP Workstation Power cord Mouse Keyboard How to... Monitor Touchscreen monitor Power cord (Touchscreen Monitor) DVI connector cable (Touchscreen Monitor - HP Workstation) USB connector cable (Touchscreen Monitor - HP Workstation) How to...
-
Page 30: Specifications
OLYMPUS Cleanliness Inspector CIX100 13 Specifications Specifications Move Specifications parameters Camera SC50 Chip type CMOS Chip size 1/2.5 Inch Effective area 5.6 mm x 4.2 mm (width x height) Pixel size 2.2 μm x 2.2 μm Maximum resolution 2560 x 1920 pixels... - Page 31 OLYMPUS Cleanliness Inspector CIX100 13 Specifications Focusing Focusing unit: system Fine focus knob: Distance moved per rotation 0.1 mm Coarse focus knob: Distance moved per rotation 17.8 mm Equipped with tension adjustment mechanism and upper limit stopper mechanism Motorized MFD-2 Resolution typical 0.002 μm,...
-
Page 32: Proper Selection Of The Power Supply Cord
If no suitable power supply cord is provided, please select the proper power supply cord for the equipment by referring to "Specifications" and "Certification marks for power cords" below. OLYMPUS is not responsible for damage caused by the use of uncertified power cords with OLYMPUS devices. Specifications... - Page 33 OLYMPUS Cleanliness Inspector CIX100 14 Proper selection of the power supply cord Table 1 Certification marks for power cords The power cord has to have a certification mark from one of the bodies listed in Table 1 or it must use cable that has been tested by a body that is listed in table 1 or table 2.
- Page 34 OLYMPUS Cleanliness Inspector CIX100 14 Proper selection of the power supply cord Table 2 HAR Flexible cables Certification bodies and type of certification for the harmonization mark Certification body Printed or embossed harmonization mark (on the plug or cable insulation) Comité...
-
Page 35: Notes On Conformity And Disposal
15 Notes on conformity and disposal Notes on conformity and disposal 15.1 CE Conformity (Europe) The OLYMPUS CIX100 Cleanliness Inspector System conforms to the requirements of the following European directives: • Machinery Directive 2006/42/EC • EMC Directive 2014/30/EU • Low Voltage Directive 2014/35/EU This device complies with the requirements of the IEC/EN61326-1 standard with regards to electromagnetic compatibility. -
Page 36: Fcc Conformity (Usa)
OLYMPUS Cleanliness Inspector CIX100 15 Notes on conformity and disposal 15.4 FCC conformity (USA) This device complies with Part 15 of the FCC regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 37: China Rohs Conformity (China)
OLYMPUS Cleanliness Inspector CIX100 15 Notes on conformity and disposal 15.6 China RoHS conformity (China) System Setup Guide... - Page 38 Ground Floor, Tower-C, SAS Tower, The Medicity Complex, Sector- 38, Gurgaon 122001, Haryana, INDIA OLYMPUS KOREA CO., LTD. 8F Olympus Tower A, 446 Bongeunsa-ro, Gangnam-gu, Seoul, 135-509 Korea OLYMPUS AUSTRALIA PTY. LTD. 3 Acacia Place, Notting Hill VIC 3168, Australia OLYMPUS SINGAPORE PTE LTD.
