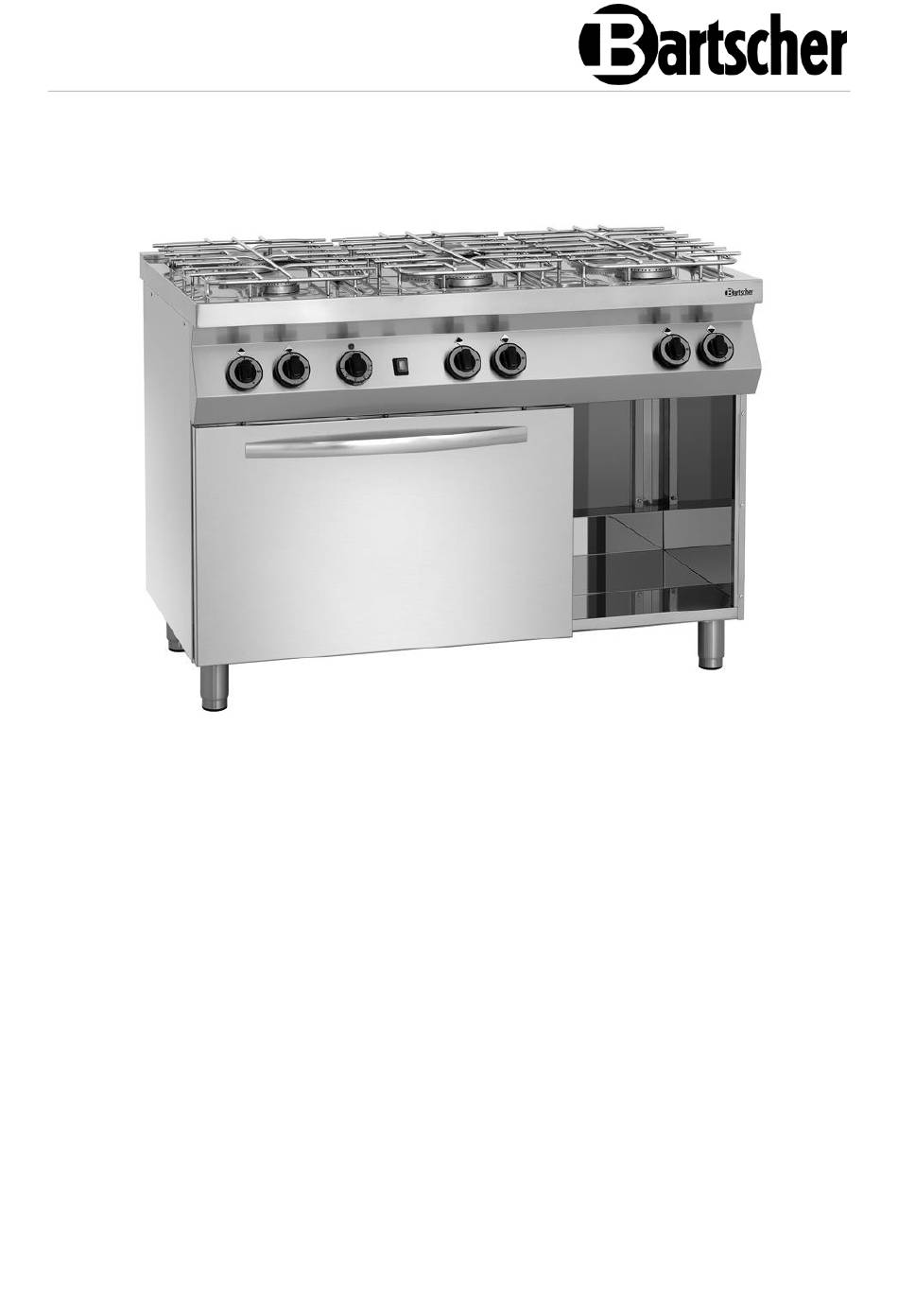

  • Page 1 Flex 7360 1583011...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com 1312CR6138 Version: 1.0 Date of preparation: 2021-06-18...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety • Use the appliance only with materials designed to this end and with correct temperature settings. Materials, food products and left-overs of food products remaining in the appliance may catch fire. • To avoid fire hazard, clean the appliance regularly. •...

  • Page 8: Intended Use

    Safety • The appliance may only be used when it is clean. • Use only original spare parts. Never attempt to repair the appliance on your own. • Do not introduce any changes in the appliance nor modify it. Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use.

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Name: Gas stove Flex 7360 1583011 Art. No.: Material: stainless steel Number of hobs: Distribution of hobs, in kW: 3 x 3,5 / 3 x 6 Size of hobs, in mm: 330 x 300...
  • Page 12 Technical Data Version / Characteristics • Type: standing appliance • Operating mode: gas/electric • Hob type: gas • Gas type: – natural gas, type G20 (20 mbar) – natural gas nozzles G30 (50 mbar) included • Gas burner: single-ring burner •...
  • Page 13 Technical Data Gas Pressure Table Appliance Supply pressure Destination country categories II2H3+ 20, 28-30/37 mbar IT, ES, GB, GR, IE, PT, CZ, SK, CY, CH, LT, SI, AL, MK, TR II2E+3+ 20/25, 28/37 mbar FR, BE II2E3B/P 20, 37 mbar II2E3B/P 20, 50 mbar II2H3B/P...
  • Page 14 Technical Data 3.5 kW (MAX, 6 kW (MAX, PILOT Category P [mbar] including including (0.24 kW) G20 / pilot) pilot) [1.5 kW (MIN, [1.8 kW (MIN, G30–31 including including pilot)] pilot)] Dim. 1/100 mm 1/100 mm 1/100 mm 1,40 G20 / 1,85 G20 / 0,40 G20 / 0,80 G30-31...

  • Page 15: Functions Of The Appliance

    Technical Data 3.5 kW (MAX, 6 kW (MAX, PILOT Category P [mbar] including including (0.24 kW) G20 / pilot) pilot) [1.5 kW (MIN, [1.8 kW (MIN, G30–31 including including pilot)] pilot)] Dim. 1/100 mm 1/100 mm 1/100 mm 1,45 G25 / 1,90 G25 / 0,40 G20 / 0,90 G30-31...

  • Page 16: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Cookware is not part of the delivery. Fig. 1 1. Burner (6 pcs) 2. Sliding grates (3 pcs) 3. Fume extractor 4. Hob 5. Control panel 6. Open base structure 7. Height-adjustable feet (4 pcs) 8.

  • Page 17: Installation Instructions

    Installation Instructions Installation Instructions Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law.
  • Page 18 Installation Instructions power (see appliance's rated plate). Additionally, accident prevention regulations should be observed. • In spite of this, we recommend installing the appliance under an extractor hood, so that fast and constant fume extraction is secured. • The attested gas cut-off valve must be installed in an easily accessible location between the gas supply installation and the appliance, so that, if needed, gas supply may be interrupted at any time.

  • Page 19: Electrical Connection

    Installation Instructions 600 mm between the appliance's surface and horizontal surfaces over the appliance. • If keeping the minimum clearance is not possible, walls should be isolated with non-combustible, thermo-insulation materials (e.g., films made of heat resistant materials, which may sustain temperature of at least 65°C). Follow fire protection regulations in force.

  • Page 20: Gas Connection

    Installation Instructions Gas Connection • Gas supply connection may be executed exclusively by a qualified gas fitter according to the current regulations. • Installation locations available in public should follow accident prevention regulations and safety norms with respect to fire occurrences and panic. •...
  • Page 21 Installation Instructions Pressure Check The appliance is approved and by factory default prepared to operate with the type of gas stated on the rating plate (liquid gas). Check if the gas type stated on the rating plate is concurrent with the available gas type.
  • Page 22 Installation Instructions 7. Re-fit the sealing washer and screw back on the pressure connection (A). 8. Re-fit the control panel back on the appliance. 9. Fix gas controllers. Switching to Different Gas Type • Switching to a different type of gas, e.g. from natural gas to liquid gas, is done through exchange of nozzles of the main burner, bypass burner and pilot burner.
  • Page 23 Installation Instructions Required Regulations Primary Air After replacement of nozzles check primary air settings for all burners. If the primary air was set correctly, the flame is stable; this means that there may not be any interruptions of the flame with a cold burner, nor there may not be any back-draft with a warm burner.
  • Page 24 Installation Instructions Reception and Operation Control When the appliance is installed, but before commissioning it to the user, check the appliance for the following points: – if the entire protective film was carefully removed from all external surfaces; – if all connections were executed pursuant to this installation instruction; –...

  • Page 25: Operating Instruction

    Operating Instruction after 15 minutes of operation and maximum capacity. Also, with every change from MIN to MAX, the flame must burn in a stable manner. Operating Instruction Operation • Prior to firs t operation, cl ean the appli anc e and its equi pment, obs er ving i nstr ucti ons in sect ion 6 'Cleaning'. Make sur e no water enters el ectric i nstallation and connec tion box. T hen thoroughl y dr y the appli anc e and the entire eq uipment. •...
  • Page 26 Operating Instruction Control Elements Fig. 3 1. Oven temperature controller 2. Heating-up indicator light (orange) 3. ON/OFF switch with integrated 4. Front right hob gas controller operation indicator light (green) 5. Rear right hob gas controller 6. Front centre hob gas controller 7.
  • Page 27 Operating Instruction • Prior to firs t operation, cl ean the appli anc e and its equi pment, obs er ving i nstr ucti ons in sect ion 6 'Cleaning'. Make sur e no water enters el ectric i nstallation and connec tion box. T hen thoroughl y dr y the appli anc e and the entire eq uipm ent. •...
  • Page 28 Operating Instruction • When using fat and oil during cooking, do not leave the appliance unsupervised, for they may get ignited by the flame if overheated. There is the fire hazard! • Use only flat-bottomed cookware. Fig. 5 • Place a suitable cookware on the sliding grate so that the flame is in the middle. Electric Oven 1.
  • Page 29 Operating Instruction 1. Set the required temperature for the selected food using temperature controller in the range of 50–270°C. The orange heating-up control light is lit until the appliance is heating itself up; it goes off, when the set temperature is reached. 2.

  • Page 30: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Close the gas supply cut-off valve before cleaning. • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning.
  • Page 31 Cleaning and Maintenance Electric Oven 1. Thoroughly clean guide rails, rack, oven chamber using warm water, a soft cloth or sponge and a cleaning agent for stainless steel. 2. Use a soft oven cleaning agent if required. Observe instructions of such a cleaning agent's manufacturer.

  • Page 32: Maintenance

    Disposal Maintenance ATTENTION! Unconditionally observe maintenance intervals! To keep the appliance operational, it must be subject to maintenance at least once a year. Before attempting any maintenance works, disconnect the power supply, close main gas tap and cool the appliance off. Maintenance may be performed by a qualified and authorised service technician only, and it should feature the following actions: –...
