Summary of Contents for Bartscher ITH 80-320

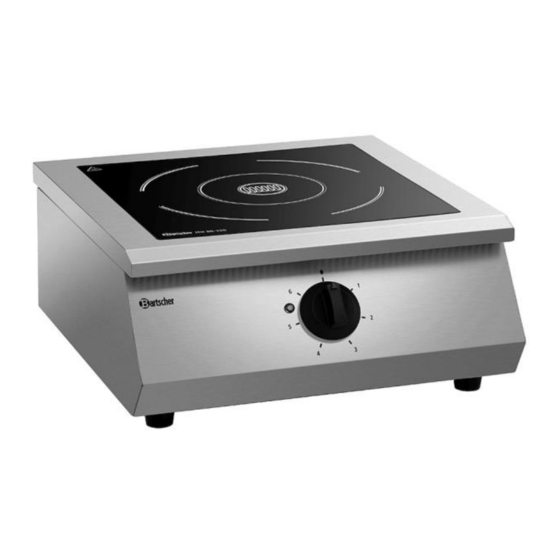

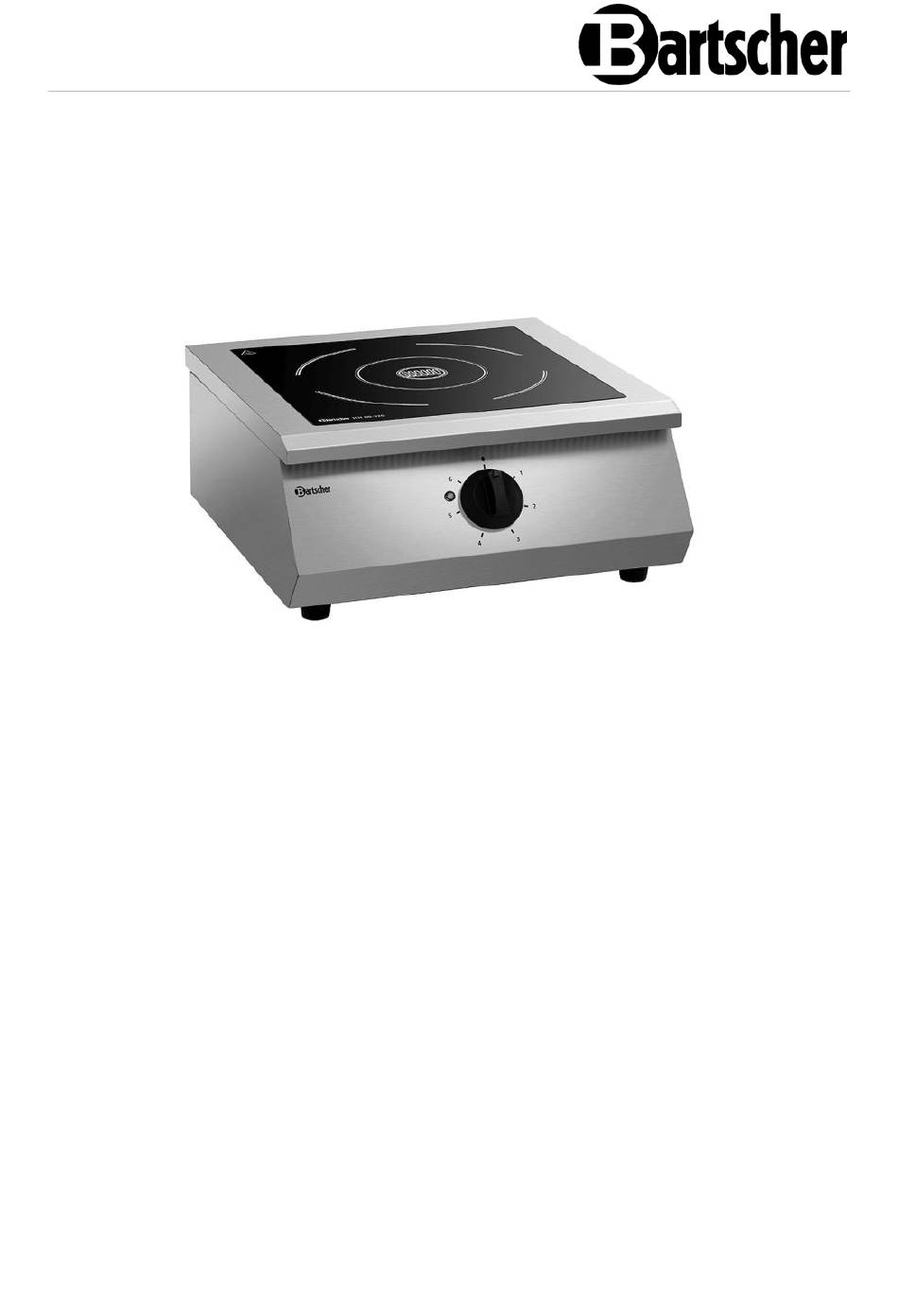

- Page 1 ITH 80-320 105978...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-08-25...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety • In order to avoid overheating, do not place any aluminium foil or metal plates on the heating surface of the appliance. • Do not heat up sealed containers, e.g. canned food, on the heating area of the induction cooker. Resulting overpressure may cause explosion (rupture) of a container or a can.
- Page 8 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 9: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 10: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Induction stove ITH 80-320 105978 Art. No.: Material: Stainless steel Heating plate material: Glass Number of hobs: Glass plate dimensions (W x D), in mm: 400 x 400 Hob diameter, in mm: Power output per hob: 8 kW No. -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Hob 2. Glass hob 3. Housing 4. Feet (4 pcs) 5. Power output controller 6. Indicator light Dust filter and grease filter The induction cooker is provided with 2 dust and grease filters. -
Page 14: Functions Of The Appliance
Installation and operation Functions of the Appliance The induction cooker is intended for preparation and heating of foods using appropriate cookware. Owing to the pot diameter of 320 mm and power of 8 kW, the mobile tabletop cooker may be used to prepare also large amounts of food. The power output is controlled in a simple way —... -
Page 15: Operation
Installation and operation • Do not place the appliance in the vicinity of devices or objects that are sensitive to magnetic fields (e.g. radio, television, etc.). • Leave at least 5 -10 cm clearance from flammable walls and other objects. Connection —... - Page 16 To obtain better results, use only pans/pots with a diameter of 16–40 cm. Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm...
- Page 17 Installation and operation Not Suitable Cookware • Containers with bulged bottoms • Aluminium, brass, copper cookware unless they are clearly indicated as suitable for induction • Pots/pans with a diameter below 12 cm • Cookware with feet • Ceramic cookware •...
- Page 18 Installation and operation Appliance Start-Up WARNING! Risk of burns! The hob and the appliance housing get very hot during the operation of the appliance due to hot cookware and they remain hot for some time still after switching off. Never touch the hot surface of the appliance. 1.
-
Page 19: Cleaning
Cleaning Cookware Detection Function The appliance is provided with the cookware detection function. When a cookware is removed from the hob during operation, the indicator light flashes red and signals that there is no cookware on the hob. Overheating Protection The appliance is equipped with overheating protection. -
Page 20: Cleaning
Disposal Cleaning 1. Clean the appliance regularly after the end of each working day, or more frequently if needed. 2. Wipe the glass plate, control panel and housing of the appliance with a soft, damp cloth. Use mild, non-scrubbing cleaning agent if required. 3.
