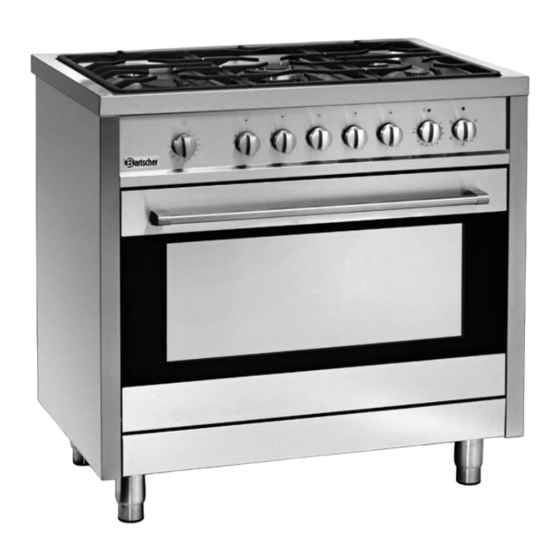

Bartscher 1509851 Instruction Manual

Hide thumbs Also See for 1509851:
Table of Contents

Advertisement

Quick Links

Download this manual
1509851
V1/0713

Advertisement

Table of Contents
loading

Related Manuals for Bartscher 1509851

Summary of Contents for Bartscher 1509851

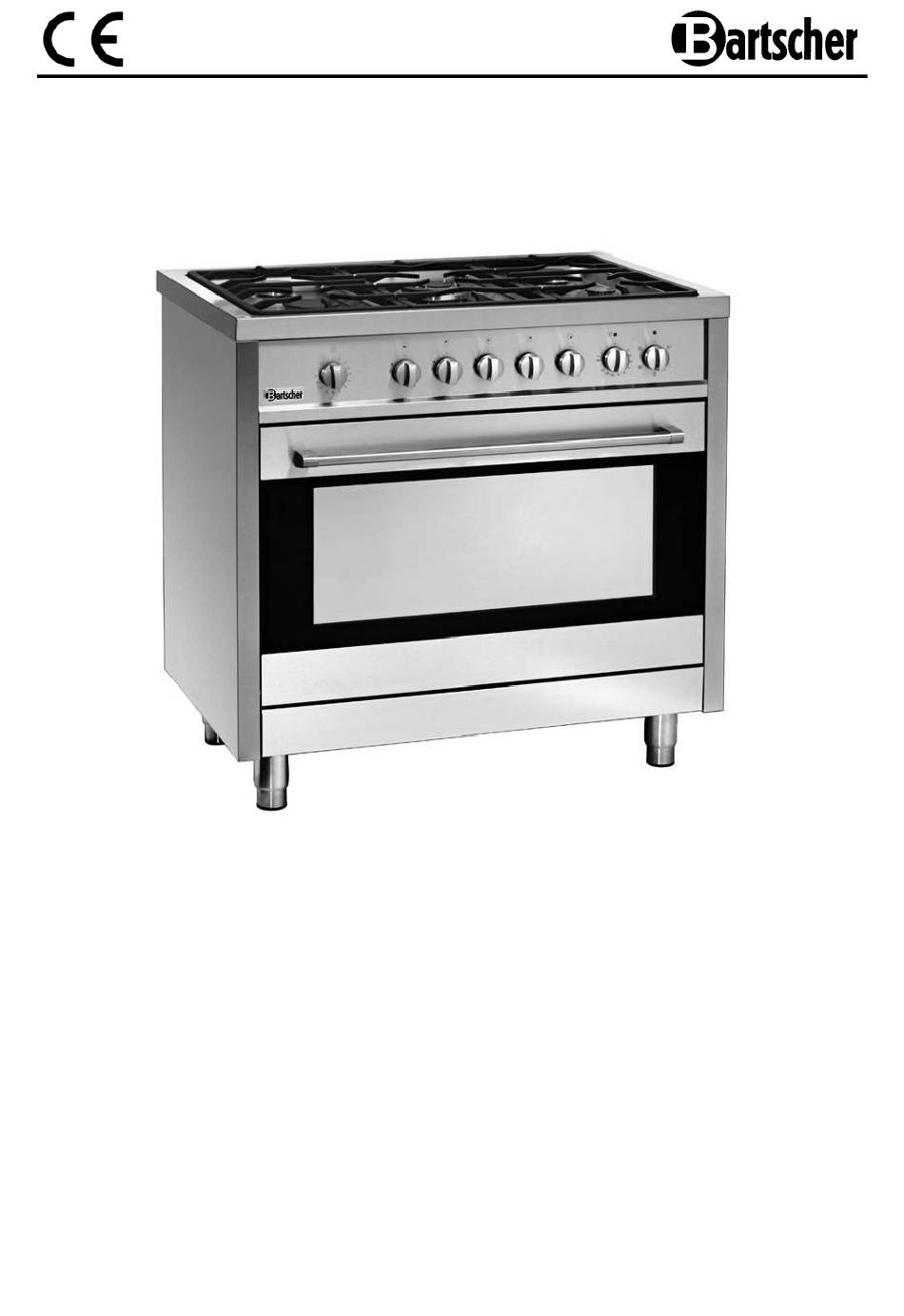

  • Page 1 1509851 V1/0713...

  • Page 2: Table Of Contents

    6. Cleaning and maintenance ..................49 6.1 Safety advice ....................... 49 6.2 Cleaning ......................49 6.3 Instructions for maintenance ................51 7. Possible Malfunctions .................... 51 8. Waste disposal ......................52 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone:+49 (0) 5258 971-0 Germany fax:...

  • Page 3: General Information

    1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Liability And Warrantees

    1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 5: Safety

    2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

  • Page 6: Intended Use

    CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.

  • Page 7: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 8: Technical Data

    4. Technical data 4.1 Technical specification Gas stove 5 burners with electric Name multifunction oven 1509851 Art. no.: 60 °C – 250 °C Temperature range: Gas power parameter: 11.2 kW Electric power 2.75 kW 50 Hz 230 V parameters: Oven capacity:...
  • Page 9 Gas categories in selected countries Gas pressure Country Categories Gas type (mbar) Austria G20 - G30/G31 20 - 50/50 2H3B/P Belgium G20/G25 - G30/G31 20/25 - 28-30/37 2E+3+ Bulgaria G20/G25 - G30/G31 20 - 30/30 2H3B/P Switzerland G20 - G30/G31 20 - 28-30/37 2H3+ Cyprus...
  • Page 10 Gas pressure Country Categories Gas type (mbar) Romania G20 - G30/G31 20 - 30/30 2H3B/P Sweden G20 - G30/G31 20 - 30/30 2H3B/P Slovenia G20 - G30/G31 20 - 30/30 2H3B/P Slovakia G20 - G30/G31 20 - 30/30 2H3B/P Turkey G20 - G30/G31 20 - 30/30 2H3B/P...
  • Page 11 Usage* Gas category (50) 2ELL3B/P Gas type G110 Power Power Power Power Burner Pass [kW] [kW] Quick 0,44 1,34(F3) 1,18(Y) 1,21(F2) 2,6(3) burner Standard 0,34 1,75 1,01(Y) 1,75 0,97(Z) 1,75 0,94(Y) 1,75 1,9(2) burner Efficient 0,29 0,82 0,72(X) 0,72(F1) 1,45(1) burner Triple 0,64...

  • Page 12: Overview Of Parts

    4.2 Overview of parts ① ② ⑩ ③ ④ ⑨ ⑤ ⑧ ⑥ ⑦ ① Cooking surface ② Control panel ③ Oven lighting ④ Shelf guides ⑤ Glass oven door ⑥ Glass door handle ⑦ Height-adjustable legs ⑧ Baking tray ⑨...

  • Page 13: Installation And Operation

    5. Installation and operation 5.1 Safety instructions  Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable. ...
  • Page 14 Installation location  Locate the device in a safe place, on a level surface capable of supporting the device's weight with the maximum amount of food products.  Never place the device on a flammable surface or one sensitive to high temperatures. ...
  • Page 15 Electrical connections WARNING! Danger of electric shock! Improper installation of the device can result in injury! Compare parameters of the local electricity network with the information on the device's rating plate. Only connect the device in the case of full compliance! ...
  • Page 16 o Ensure that the hose is not in contact with hot parts of the oven. Ensure that the metal hose can not be twisted or pulled. Only use approved clamps that meet the requirements for installation. Connection to a gas bottle If the device is connected to a gas bottle, it should be equipped with a pressure reducer, and connections installed in accordance with local regulations.
  • Page 17  remove the grill from the cooking surface;  remove the burner shield from the burner;  remove the jet using a 7 mm wrench;  replace the removed jet with one appropriate for the type of gas to be used (see information in the "Burner and jet properties"...

  • Page 18: Tips For The User

    CAUTION! The device functions properly only when the pressure in the gas installation is within the values given in the table labeled "Gas categories in selected countries". CAUTION!  Properly reassemble all parts after making alterations or recalibrating the device to ensure it is prepared for further use.
  • Page 19 Gas cooker Arrangement of gas burners on the cooking surface ① Quick burner ② Standard burner ④ Efficient burner ⑤ Triple ring Igniting burners  To ignite a burner, press in on the appropriate dial and turn it counter-clockwise, to the high-flame symbol. ...
  • Page 20  Place cookware so that the flame is in the middle.  To reduce gas use and improve performance, use cookware with a diameter appropriate for a given burner as in the table below. min. ∅ (mm) max. ∅ (mm) Burner of cookware of cookware...
  • Page 21 Temperature regulation  The temperature for cooking a particular dish is set using the temperature dial within a range of 60 °C – MAX. (approx. 250 °C).  The red control light over the temperature dial comes on when the device is warming up, and goes off when the device has reached the desired temperature.
  • Page 22 Convection Temperature range: 60 °C – MAX. (approx. 250 °C) When this function is selected, hot air circulates evenly inside the oven on all levels, ensuring best results while cooking several dishes at one time on different levels. The oven must be preheated before dishes are placed inside. This function is especially appropriate for baking cakes and preparing larger amounts of food.
  • Page 23 NOTE! The rules given concern general preferences concerning desired effects of cooking/baking. CAUTION! When finished using the oven, return all dials (time, temperature and function) to the position marked "OFF". Levels  The oven offers 4 levels: 1 lower, 2 middle, 1 upper. ...

  • Page 24: Cleaning And Maintenance

    6. Cleaning and maintenance 6.1 Safety advice o Before cleaning and before maintenance work, disconnect the device from its power source by removing the plug from its socket, close the main gas valve and wait for the device to cool. o Do not use any acid agents and make sure no water ingresses the device.
  • Page 25 o Do not use abrasive scouring pads or other products that may damage the enamel in the oven. o For easier cleaning of the oven's interior, the glass door can be removed by following these instructions: fully open the glass oven door; lift up the small bails on each hinge by turning them clockwise;...

  • Page 26: Instructions For Maintenance

    6.3 Instructions for maintenance o Inspect all of the device's control and safety mechanisms regularly. o Check the burner's ignition and its functioning at the lowest flame level. o Inspect the tightness of the gas installation's seals. o Regularly inspect the power cable for damage. Never use the device if the power cable has been damaged.

  • Page 27: Waste Disposal

    NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
