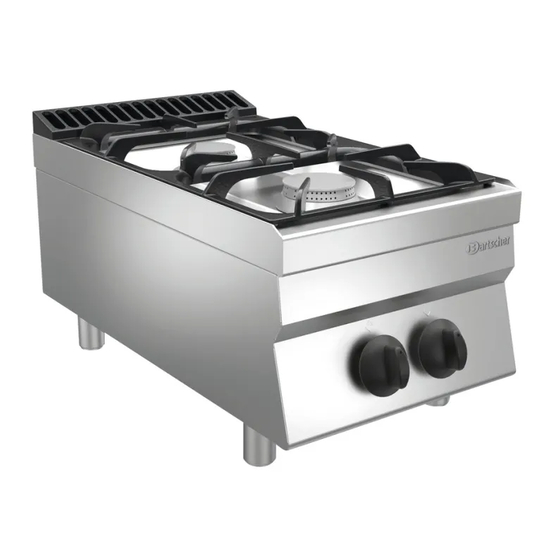

Bartscher 700FX-G20 Manual
  1. Manuals
  2. Brands
  3. Bartscher Manuals
  4. Stove
  5. 700FX-G20
  6. Manual

Bartscher 700FX-G20 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
700FX-G20 / 700FX-G40 / 700FX-G60
2831021 - 2831041 - 2832361

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700FX-G20 and is the answer not in the manual?

Questions and answers

Related Manuals for Bartscher 700FX-G20

Summary of Contents for Bartscher 700FX-G20

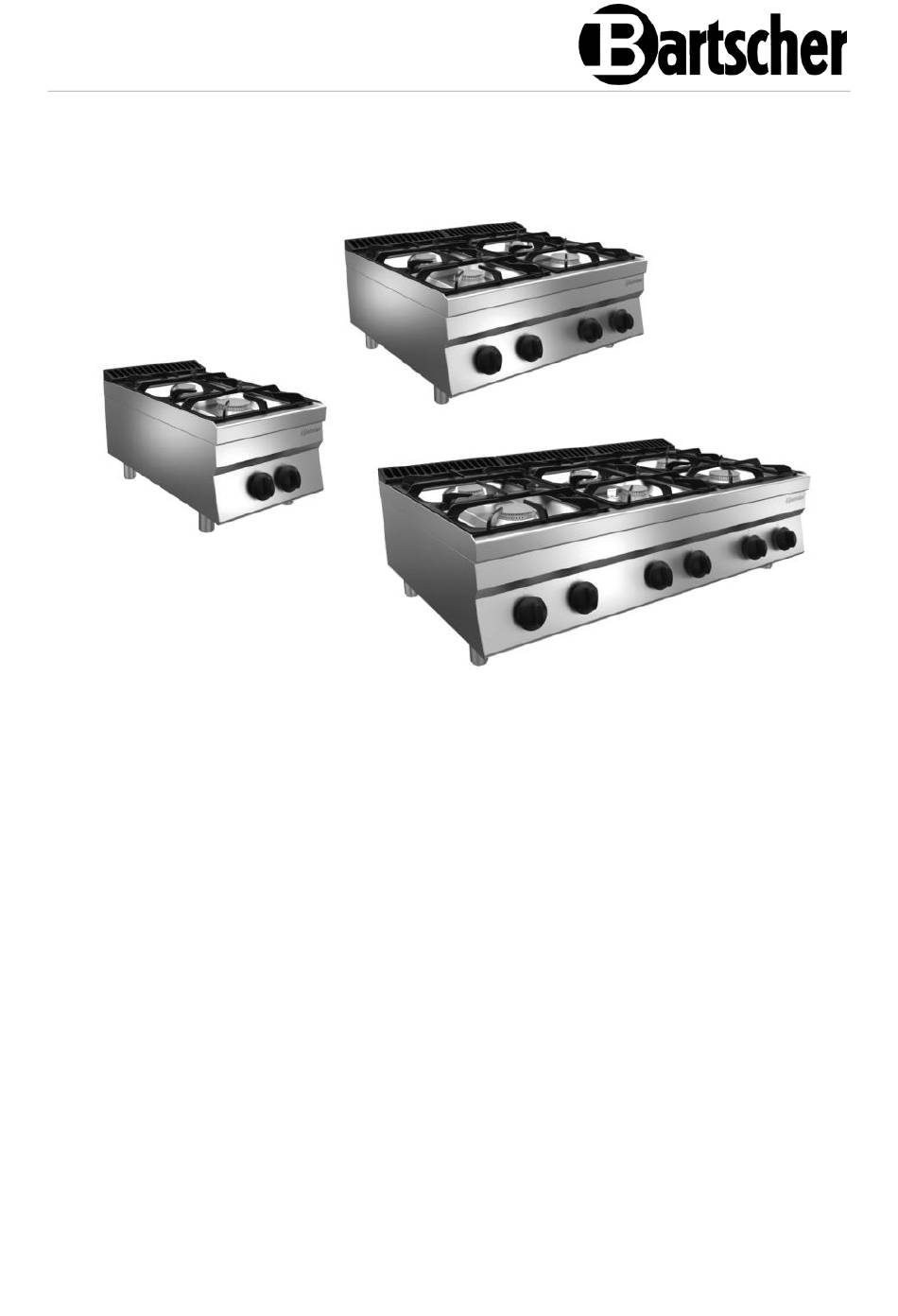

  • Page 1 700FX-G20 / 700FX-G40 / 700FX-G60 2831021 - 2831041 - 2832361...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com CE-0085DL0222 Version: 1.0 Date of preparation: 2022-10-10...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Residual Risks ..................7 Personal Protective Equipment ..............9 Intended Use ..................10 Unintended Use ..................10 General information ..................11 Liability and Warranty ................11 Copyright Protection ................

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlung s anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety • Use the appliance only with materials designed to this end and with correct temperature settings. Materials, food products and left-overs of food products remaining in the appliance may catch fire. • To avoid fire hazard, clean the appliance regularly. •...
  • Page 8 Safety • The appliance may only be used when it is clean. • Use only original spare parts. Never attempt to repair the appliance on your own. • Do not introduce any changes in the appliance nor modify it. 6 / 42 2831021...

  • Page 9: Residual Risks

    Safety Residual Risks Residual Risks Dangerous situation Warning Danger of slipping User may slip on the floor due to Wear non-skid safety or falling the presence of water or dirt. shoes when using the device. Burn Operator is deliberately touches the machine components.
  • Page 10 Safety Residual Risks Dangerous situation Warning Chemicals Operator is dealing with Appropriate precautions chemicals (e.g. cleaners, should be taken. Always descaling agents, etc.) follow the instructions on the safety data sheets and labels for the products you use. Use personal protection measures recommended in the safety data sheets.

  • Page 11: Personal Protective Equipment

    Safety Personal Protective Equipment Respiratory Safety Safety Hearing Head Gloves Eye protection tract clothing footwear protection protection protection Phase Transport Moving Unpacking Assembly Standard usage X (*) Settings Standard cleaning Special cleaning Maintenance X (*) Dismantling Disposal Personal protective equipment provided Personal protective equipment is available or must be used if required Personal protective equipment not provided...

  • Page 12: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature.

  • Page 13: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 14: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 15: Technical Data

    Technical Data Technical Data Technical Specifications Version / Characteristics • Type: table-top appliance • Supply type: gas • Gas type: – natural gas E – propane nozzles included • Hob type: gas • Ignition type: manual • Gas burner: double-ring burner •...
  • Page 16 Technical Data Name: Gas stove 700FX-G20 2831021 Art. No.: Material: stainless steel Number of hobs: Distribution of hobs, in kW, max.: 2 x 7,7 Size of hobs, in mm: 430 x 300 Gas connected load: 28.5 kW Dimensions (W x D x H), in mm:...

  • Page 17: Functions Of The Appliance

    Technical Data Name: Gas stove 700FX-G60 2832361 Art. No.: Material: stainless steel Number of hobs: Distribution of hobs, in kW, max.: 2 x 3,85 / 2 x 5,7 / 2 x 7,7 Size of hobs, in mm: 400 x 300 Gas connected load: 28.5 kW Dimensions (W x D x H), in mm:...
  • Page 18 Technical Data Gas Pressure Table Countries Appliance Connection pressure (mbar) categories pressure Rated Min. Max. (mbar) LU-PL I2EK G25.3 G30/G31 28-30/37 20/25 35/45 NO-NL-CY- I3B/P G30/G31 28-30 I3B/P G30/G31 G20/G25 20/25 25/30 BE-FR II2E+3+ G30/G31 28-30/37 20/25 35/45 II2ELL3B/P G30/G31 42,5 57,5 ES-GB-GR-IE-...
  • Page 19 Technical Data Countries Appliance Connection pressure (mbar) categories pressure Rated Min. Max. (mbar) AT-CH II2H3B/P G30/G31 42,5 57,5 II2HS3B/P G25.1 G30/G31 28-30 II2HS3B/P G25.1 G30/G31 42,5 57,5 II2EK3B/P G25.3 G30/G31 28-30 Tab. 1 2831021 17 / 42...
  • Page 20 Technical Data Nozzles and settings Countries Gas type Ref. Art. No. (mbar) 2831021 / 74GCTT 154 Qn (Max) Qn (Min) 150R AT-BE-BG-CH-CZ- DE-DK-EE-ES-FI- 30 (≤250W) FR-GB-GR-HR-IE- A(mm) OPEN IT-LT-LU-LV-NO- G20/ G25 20/25 PL-PT-RO-SE-SI- SK-TR 3,50 (kW) 165K 30 (≤250W) A(mm) OPEN 3,60 1,15...
  • Page 21 Technical Data Countries Gas type Ref. Art. No. (mbar) 2831021 / 74GCTT 154 BE-BG-CY-CZ-DK- EE-ES-FI-FR-GB- 20 (≤250W) 28-30 GR-HR-HU-IE-IT-LT- A(mm) OPEN G30/ G31 LU-LV-MT-NL-NO- 28-30 PT-RO-SE-SI-SK-TR 3,60 2,50 (kW) 20 (≤250W) A(mm) OPEN G30/ G31 3,75 2,00 (kW) AT-CH-DE-HU 20 (≤250W) A(mm) G30/ G31 3,85...
  • Page 22 Technical Data Countries Gas type Ref. Art. No. (mbar) 2831041 / 78GCTT 229 Qn (Max) Qn (Min) 190R AT-BE-BG-CH-CZ- DE-DK-EE-ES-FI- 30 (≤250W) FR-GB-GR-HR-IE- A(mm) OPEN IT-LT-LU-LV-NO-PL- G20/ G25 20/25 PT-RO-SE-SI-SK-TR 5,50 2,10 (kW) 205K 30 (≤250W) A(mm) OPEN 5,60 1,70 (kW) 195K 30 (≤250W)
  • Page 23 Technical Data Countries Gas type Ref. Art. No. (mbar) 2831041 / 78GCTT 229 BE-BG-CY-CZ-DK- EE-ES-FI-FR-GB- 20 (≤250W) GR-HR-HU-IE-IT-LT- 28-30 /37 A(mm) OPEN G30/ G31 LU-LV-MT-NL-NO- 28-30 PT-RO-SE-SI-SK-TR 5,70 2,70 (kW) 20 (≤250W) A(mm) OPEN G30/ G31 5,30 2,50 (kW) AT-CH-DE-HU 20 (≤250W) A(mm) OPEN...
  • Page 24 Technical Data Countries Gas type Ref. Art. No. (mbar) 2832361 / 712GCTT 345 Qn (Max) Qn (Min) 215K AT-BE-BG-CH-CZ- DE-DK-EE-ES-FI- 30 (≤250W) FR-GB-GR-HR-IE- A(mm) IT-LT-LU-LV-NO-PL- G20/ G25 20/25 PT-RO-SE-SI-SK-TR 7,50 2,80 (kW) 245K 30 (≤250W) A(mm) OPEN 7,70 2,30 (kW) 220K 30 (≤250W) A(mm)
  • Page 25 Technical Data Countries Gas type Ref. Art. No. (mbar) 2832361 / 712GCTT 345 BE-BG-CY-CZ-DK- EE-ES-FI-FR-GB- 20 (≤250W) GR-HR-HU-IE-IT-LT- 28-30 /37 A(mm) OPEN G30/ G31 LU-LV-MT-NL-NO- 28-30 PT-RO-SE-SI-SK-TR 7,60 3,40 (kW) 20 (≤250W) A(mm) OPEN G30/ G31 7,30 3,70 (kW) AT-CH-DE-HU 20 (≤250W) A(mm) OPEN...
  • Page 26 Technical Data Gas Consumption Model / Art. No. 2831021 / 74GCTT 154 Rated heat load, Qn 11,6 11,4 13,4 15,4 Total gas G20 (20) 0,81 1,01 1,22 1,21 1,42 1,63 consump- G25.3 (25) 0,79 0,95 1,19 1,18 1,38 1,59 tion G25 (20) 0,95 1,18...
  • Page 27 Technical Data Model / Art. No. 2832361 / 712GCTT 345 Rated heat load, 23,1 30,5 32,4 42,4 34,5 38,5 38,2 46,2 Total gas 0,69 2,44 3,23 3,42 4,48 3,65 4,07 4,04 4,89 consump- (20) tion G25.3 0,75 2,38 3,15 3,34 4,37 3,56 3,97...

  • Page 28: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance 2831041 26 / 42 2831021...
  • Page 29 Technical Data 2832361 2831021 1. Ventilation chimney 2. Cast-iron grate 3. Burner 4. Ignition burner 5. Housing 6. Knob 7. Feet (4 pcs) 2831021 27 / 42...

  • Page 30: Installation Instructions

    Installation Instructions Installation Instructions Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law.
  • Page 31 Installation Instructions – Respective IEC provisions – DVGW G600 (TRGI), 'Technical regulations for gas installations' – TRF, 'Technical regulations for liquid gas' – Directive and regulations of a gas supplying company (EUV) – DVGW G 631, 'Installation of commercial kitchen appliances for combustion of gas fuels' –...
  • Page 32 Installation Instructions • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Never place the appliance directly next to walls, furniture, or other objects made of flammable materials. Maintain minimum clearance of 200 mm between side and rear walls and the said objects and walls.
  • Page 33 Installation Instructions WARNING! Do not use open fire to test tightness. Checking Gas Pressure and Rated Heat Load • With first installation, the gas installation technician must verify the appliance's rated heat load, as well as conduct maintenance, and, if needed, resetting to other type of gas.
  • Page 34 Installation Instructions Fig. 1 Fig. 2 1. Remove the knob. 2. Remove cast-iron grates and burners. 3. Remove main burner's nozzle, UM (Fig. 1), and exchange it with a nozzle provided in Table 2 (part of the delivery). 4. Re-tighten main burner's nozzle, UM. 32 / 42 2831021...
  • Page 35 Installation Instructions Exchange of Ignition Burner Nozzle 1. Remove the front guard / operation panel. 2. Unscrew the R connection. 3. Remove the UP nozzle and exchange it with a nozzle provided in Table 2 (part of the delivery). 4. Re-tighten the R connection. 5.

  • Page 36: Operating Instruction

    Operating Instruction Operating Instruction Indications for the User • Read carefully this instruction manual. It contains important indications for installation, usage and maintenance of the appliance. • Before operating the appliance, make sure that its condition is flawless and that it is located in a well ventilated room.

  • Page 37: Operation

    Operating Instruction Operation WARNING Risk of burning! During operation, the housing and working surface become very hot and remain hot for a while after switching the appliance off. Do not touch the appliance! To control the appliance, use only designated control elements. The grease collection container and its contents are very hot.
  • Page 38 Operating Instruction 3. Install burners. 4. Correctly fix gas burner guards. Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9 5. Install cast-iron grates. 36 / 42 2831021...
  • Page 39 Operating Instruction • Reinigen Sie das Ger ät und Zubehörteile vor dem Gebrauch gründlic h nac h den Anweis ungen i m Absc hnitt 6 „R einigung“. Ac hten Sie darauf, das s keine F euchtigkeit i n die el ektrisc he Anl age bz w. den Sc haltkasten ei ndringt. N as tępni e dokładni e os usz yć urz ądzenie and the entire equi pment. •...
  • Page 40 Operating Instruction Heating Up / Keeping Food Warm WARNING! The food in containers may slide or fall if the appliance is not set on even and stable surface. Pay attention to the surface you are putting cookware taken off of the appliance. Never move the appliance with food on top of it;...

  • Page 41: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Close the gas supply valve before cleaning. • Leave the appliance to cool down completely. • Do not clean the appliance with a pressurized water jet. • Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp or pointed objects may damage the appliance.

  • Page 42: Maintenance

    Cleaning and Maintenance Maintenance ATTENTION! Any works interfering in the appliance must be performed by professional and qualified personnel. We recommend to order the maintenance of the appliance with the qualified and authorised maintenance technician at least twice a year. Perform the following maintenance works: –...

  • Page 43: Possible Malfunctions

    Possible Malfunctions Cleaning Performed by the Maintenance Technician At least twice a year, have the authorised maintenance technician perform the cleaning of the appliance's interior. Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service.

  • Page 44: Disposal

    Disposal Problem Possible Cause Solution Main burner does not Loss of pressure in gas Check gas supply switch on when the supply line ignition burner is on Clogged line or nozzles Contact the service company Damaged knob Contact the service company Main burner is damaged or Contact the service company gas outlet openings are...
