Summary of Contents for Bartscher G-1KB 1K680

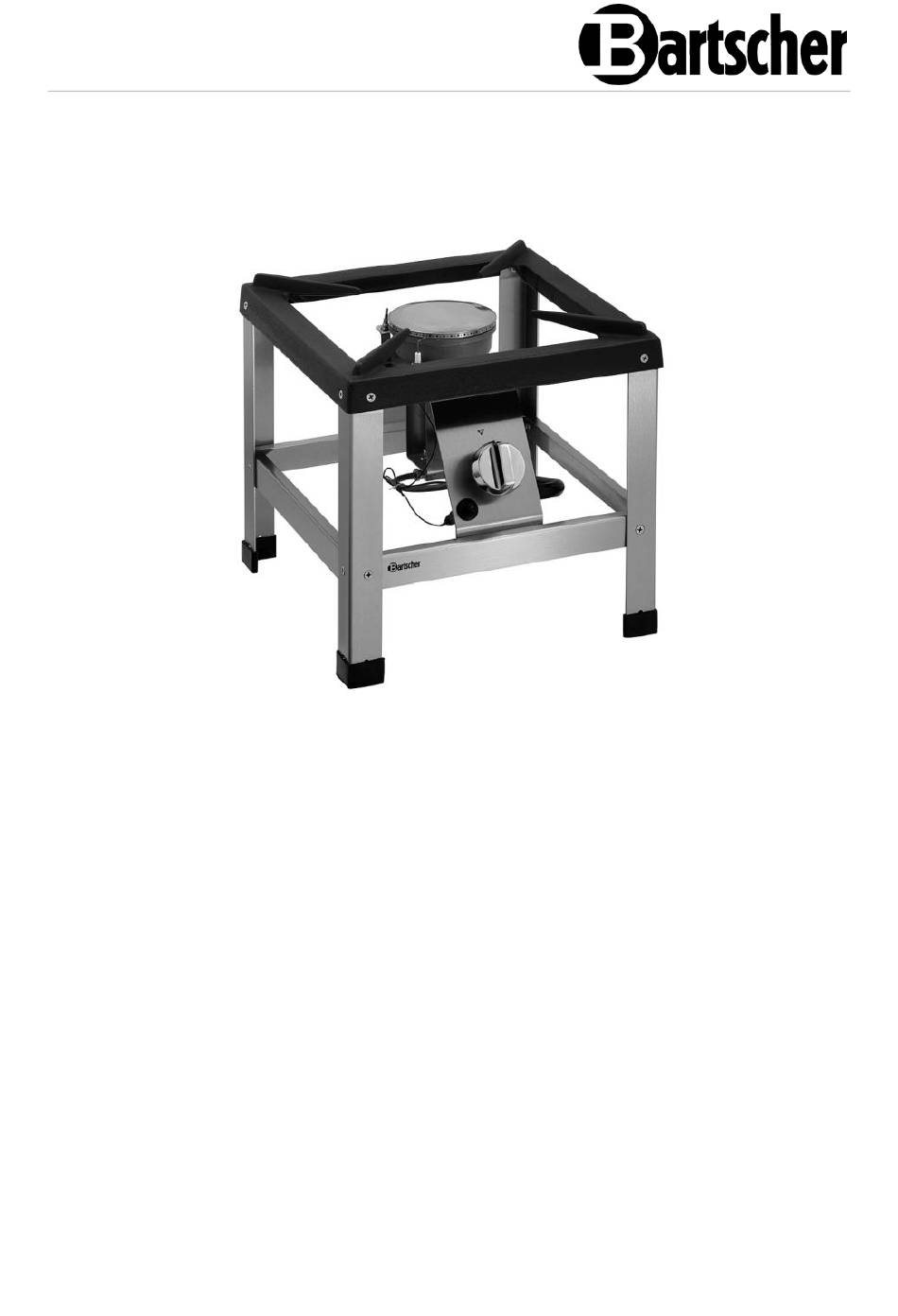

- Page 1 G-1KB 1K680 1054513...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com 2531CS-0085 Rev. 00 Version: 1.0 Date of preparation: 2020-09-18...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tl ichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tan dteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety – do not smoke; – do not operate any electric appliances in the vicinity of a gas-supplied appliance; – if you are not able to precisely locate the source of gas leakage, notify the fire service or gas supply company immediately. Flammable Materials •...
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. The appliance may be used outdoors only. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Stock-pot stove G-1KB 1K680 1054513 Art. No.: Material: CNS 18/10, cast Load-bearing capacity, max. in kg: Hob diameter, min.–max. in mm: 230 - 450 Tube length, in m: Power supply: 6.8 kW Dimensions (W x D x H), in mm:... - Page 12 Technical Data Gas Pressure Table / Destination Country Category Gas Type / Gas Pressure Destination Country G20:20 mbar AT, BG, CH, CZ, DK, EE, ES, FI, GB, GR, HR, HU, IE, IS, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR G20: 20 mbar DE, LU, PL, RO...
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Thermal flame control 2. Igniter 3. Burner's lid 4. Burner's cup 5. Cast-iron grate 6. Frame 7. Feet (4 pcs) 8. Gas connection 9. Gas supply 10. Gas controller 11. - Page 14 Dimensions: W 400 x D 400 x H 96 mm Weight: 2.2 kg Art. No. 105452 Fig. 4 Fig. 5 Support ring for small pots G-1KB 1K680 Material: high-alloy steel Cookware diameter: 175–230 mm Dimensions: W 395 x D 395 x H 20 mm Weight: 0.85 kg Art.
-
Page 15: Functions Of The Appliance
Installation and operation Functions of the Appliance The mobile stock-pot stove with powerful burner provides for many possibilities of using it outdoors. The available optional accessories, such as the support ring for small pots and wok attachment make it possible to use various cookware. Installation and operation Installation CAUTION! - Page 16 Installation and operation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. Remove the film slowly, so no glue residues are left.
-
Page 17: Gas Connection
Installation and operation Gas Connection Important Indications • Before installing the appliance and connecting it to gas supply, thoroughly check the fixed elements of gas installation, which should meet the provisions of construction law. • Depending on type of gas, the intersection of gas supply line must be selected according to regulations in force and properly installed. - Page 18 Installation and operation Appliance Connection 1. Connect one end of the included tube with the gas connection stub at the back of the appliance. 2. Connect the other end to the gas cylinder or gas supply connection in the installation location.
-
Page 19: Operation
Installation and operation 2. Lift and remove the burner's lid, burner's cup and burner's pipe. 3. Undo the burner's nozzle with a suitable wrench. 4. Install the nozzles suitable for a given type of gas. After switching from liquid gas to natural gas, the bypass nozzle should be undo by one turn. - Page 20 Installation and operation • Przed pier wsz ym uż yciem wycz yś cić urządz eni e i wypos ażenie zgodni e z e ws kazówkami z awartymi w pu nkcie 6 „Cz yszczen ie” . U waż ać, aby do ins tal acji elektr ycznej i s krz ynki roz dzi elcz ej ni e dostała si ę woda. N astępnie dokł adnie os usz yć urządz eni e i elementy wypos aż enia. •...
- Page 21 Installation and operation Food Preparation 1. Then set the flame suitable, as per the prepared food. To this end, set the controller (10) to the required position. 2. Place a suitable pot or pan on the cast-iron grate, with the necessary food products in it.
-
Page 22: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Close the gas supply valve before cleaning. • Leave the appliance to cool down completely. • Do not clean the appliance with a pressurized water jet. • Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp or pointed objects may damage the appliance. -
Page 23: Maintenance
Cleaning and Maintenance Maintenance ATTENTION! Unconditionally observe maintenance intervals! All maintenance and repair works must be performed by an authorized gas specialist only. To keep the appliance operational, it must be subject to maintenance at least twice a year. The maintenance includes: –... -
Page 24: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Problem Possible Cause Solution Burner does not Loss of pressure in gas Check gas supply, check ignite...
