Summary of Contents for Freescale Semiconductor MED-EKG

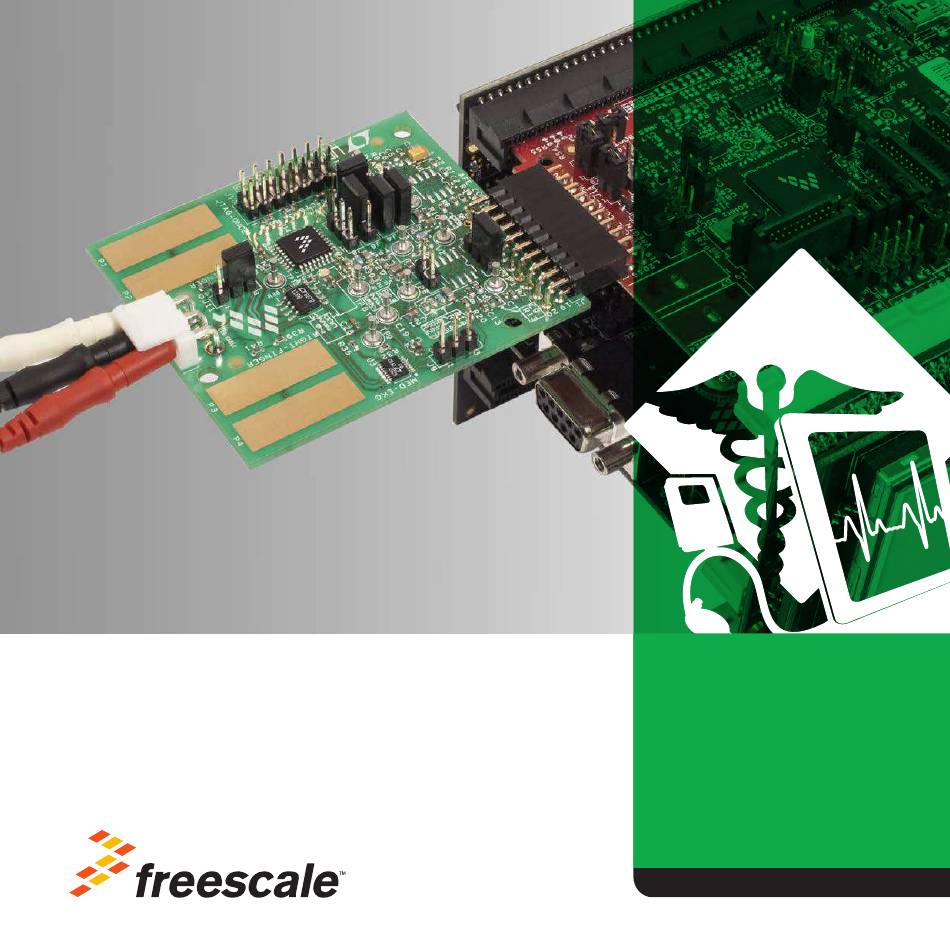

  • Page 1 Quick Start Guide MED-EKG Electrocardiograph Plug-in Board TOWER SYSTEM...
  • Page 2 Optional External Opamps Pad MED-EKG Freescale Tower System The MED-EKG plug-in board is compatible with the Freescale Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Elevate your design to the next level with this industrial powerhouse by...
  • Page 3 MED-EKG Features MED-EKG is an auxiliary board used for developing solutions oriented to electrocardiography and heart rate monitoring. This board allows designers to accelerate the development of medical devices based on electrocardiography, providing a scalable solution that can be adjusted to the final product needs.
  • Page 4 Quick Start Guide Step-by-Step Installation Instructions In this quick start guide, you will learn how to set up the MED-EKG and Tower System and run the included demonstrated software. For more detailed infomation, review the user manual at freescale.com/healthcare. Verify the Jumper...
  • Page 5 AN4323SW.zip. Open the File Connect a USB Cable Open the file MED-EKG K53.eww using IAR from \Software\MED-EKG K53\app\ Connect a USB cable from the computer cdc\iar_ew\kinetis. to the USB port on the TWR-K53N512 board. Wait for drivers to install.
  • Page 6 Quick Start Guide Step-by-Step Installation Instructions Continued Install the Change the Software Connection Install the Medical GUI software. It can Disconnect the USB cable from the be downloaded from freescale.com. TWR-K53N512 and connect it to the TWR-SER board. ® Note: Make sure you have already installed Java JDK on your computer.
  • Page 7 TOWER SYSTEM Install Drivers for Look for the JM CDC Demo COM Number If the driver is not installed automatically, In the device manager, look for the COM open Device Manager and install drivers number assigned to “Virtual Com Port.” for JM CDC Demo.
  • Page 8 Continued Attach Connect the the Leads EKG Wires Attach each EKG lead to an EKG patch Connect EKG wires to J12 on MED-EKG electrode. board. • Pin 1: White lead • Pin 2: Black lead • Pin 3: Red lead...
  • Page 9 TOWER SYSTEM Start Connect the Measurements Electrodes In the main window, click the ECG section Connect the patch electrodes to your (green) to start/stop measurements. body as follows: • Black electrode: Left abdomen • Red electrode: Right arm • White electrode: Left arm To obtain the DII lead that physicians most commonly use, please follow the following electrode placement:...
  • Page 10 Quick Start Guide MED-EKG Jumper Options The following is a list of jumper options. The default installed jumper settings are shown in white text within the green boxes. TWR-K53N512 Jumper Configurations Jumper Position Function Open R71 to ADC1_DM1 FlexBus Latch OE...
  • Page 11 TOWER SYSTEM TWR-SER Jumper Configurations Jumper Position Function VBDEV Source USB Mode Select CLK_SEL Source MED-EKG Jumper Configurations Jumper Position Function Opamp 2 VREF Selector Intsrumentation Amplifier Gain Selector 1 Instrumentation Amplifier Gain Selector 2 Right Electrode Output Selector Left Electrode Output Selector...
  • Page 12: Warranty

    Quick Start Guide Visit freescale.com/healthcareAFE for the latest information, including: • AN4323 application note Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org Freescale and the Freescale logo are trademarks of Freescale Semiconductor, ...
