User Guide

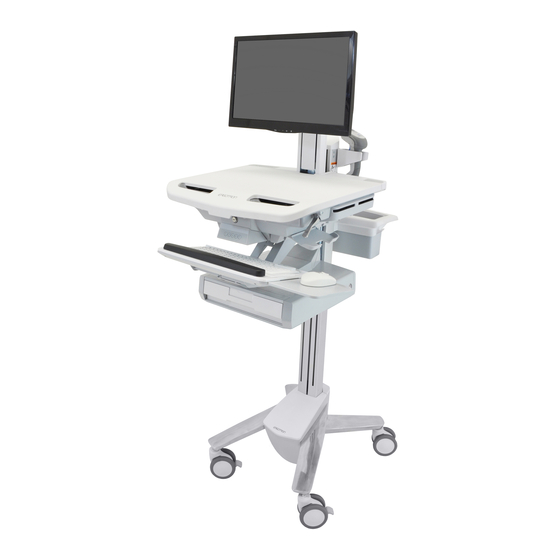

StyleView® SV43/44 Supplemental Drawer
or
< 2 lbs (1 kg)
<0.25 lbs (0.1 kg)
Total weight capacity per drawer.
Total weight capacity per drawer.
2.5"
10.5"
(64 mm)
10.5"
(267 mm)
(267 mm)
12.5"
3.75"
(315 mm)
(96 mm)
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-97-356-G-00 rev. A • 09/14
1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView SV43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ergotron StyleView SV43

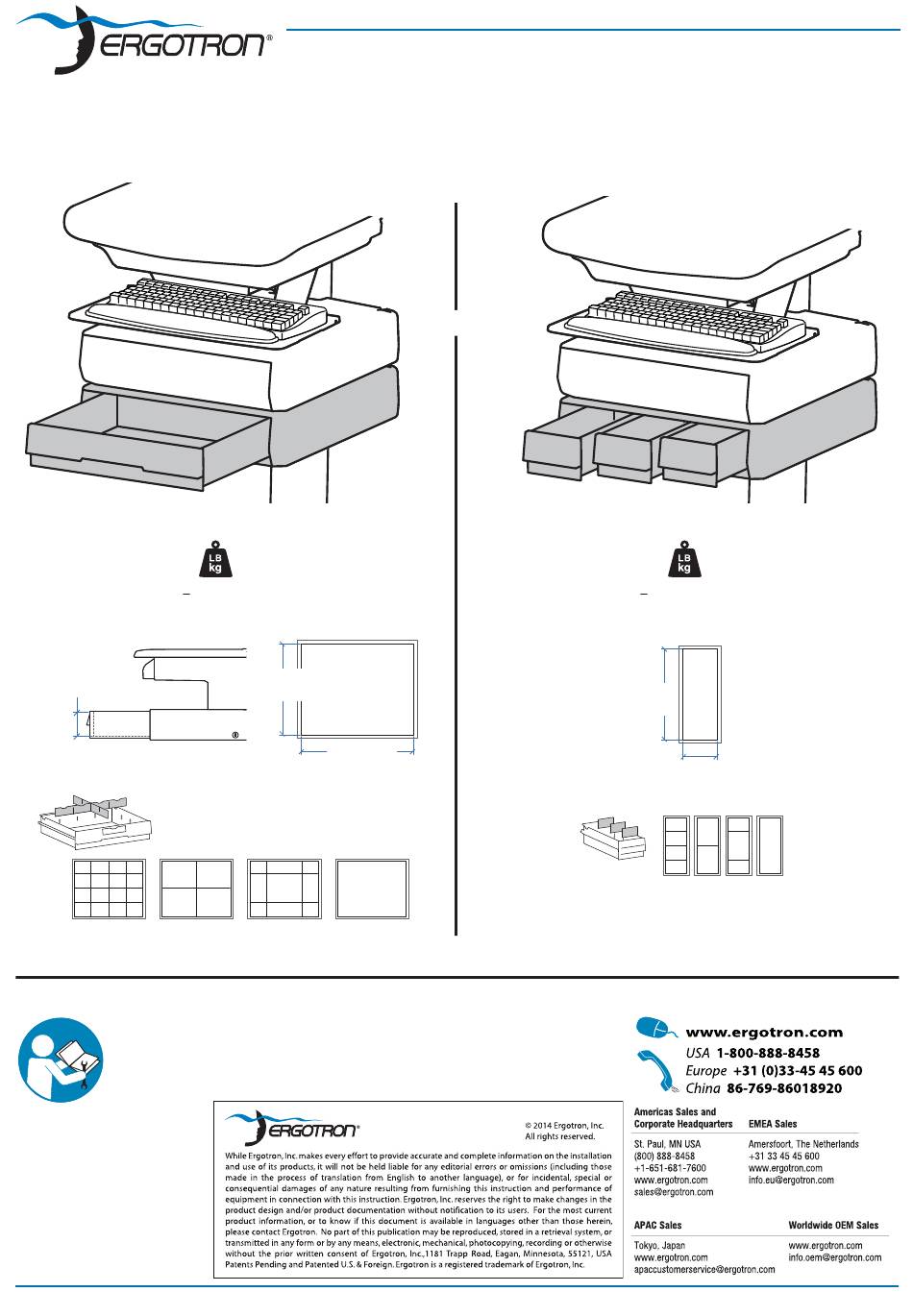

  • Page 1 (267 mm) (267 mm) 12.5" 3.75" (315 mm) (96 mm) For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français Gebruikersgids - Deutsch Benutzerhandbuch - Nederlands Guida per l’utente - Italiano Användarhandbok - svenska...
