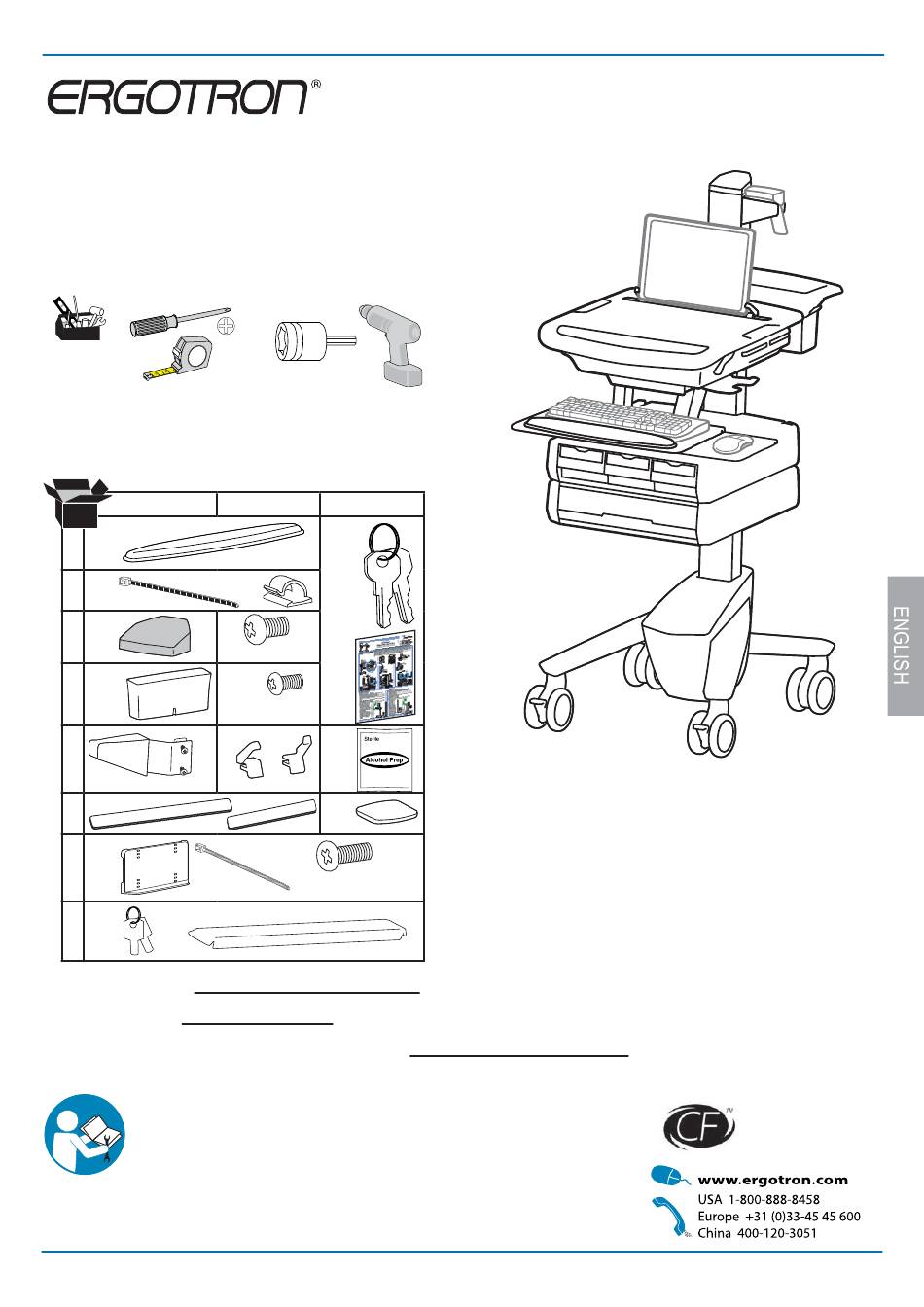

StyleView® SV43 Cart
Features & Specifi cations ............................................... 2 - 4
Set-up .............................................................................5 - 15
Adjustment ........................................................................ 11
Auto-Lock Drawer ....................................................... 12 - 14
Ergonomics .........................................................................15
Maintenance & Safety ................................................ 16 - 17
User Guide
with Laptop Mount
Includes
Constant Force™
Technology
1/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron StyleView SV43-1110-0
Summary of Contents for Ergotron StyleView SV43-1110-0
-
Page 1: Table Of Contents
Maintenance & Safety ..........16 - 17 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com User's Guide - English Includes Guía del usuario - Español Constant Force™... -
Page 2: Features & Specifi Cations
Keyboard Light under Front Handle Changes or modifi cations not expressly approved Keyboard Light Switch by Ergotron, Inc. could void the user’s authority to Cable Management and Storage for excess cables and power supplies operate the equipment. Storage Basket and Rear Handle... - Page 3 Features & Specifi cations Part Number Auto-Lock Drawer SV43-1110-0 1 Drawer*/16 compartments 1 Drawer*/9 compartments SV43-11B0-0 SV43-1120-0 2 Drawers*/32 compartments SV43-11A0-0 2 Drawers*/8 compartments SV43-11C0-0 2 Drawers*/8 compartments 3 Drawers*/48 compartments SV43-1130-0 SV43-1140-0 4 Drawers*/28 compartments SV43-1160-0 6 Drawers*/24 compartments SV43-1190-0 9 Drawers*/36 compartments *Auto-Lock Drawer...
- Page 4 Features & Specifi cations 20" (508 mm) 12˚ 16" (406 mm) Dimensions 19.5" (495 mm) 50.5" 17" 3.27" 31" - 51" (1282 mm) (432 mm) (83 mm) (787-1295 mm) 13.4" (340 mm) 3.4" 7.4" (86 mm) (188 mm) 2" 8.5" 15.4"...
-
Page 5: Set-Up
Set-up Release Brake to move riser. CAUTION! Completely release brake engagement before raising or lowering the cart. Raising or lowering the cart with the brake partially engaged may cause product damage. 40" (1016 mm) M3.5 x 6mm 5/17 888-24-297-G-01 rev. D • 08/17... - Page 6 Set-up 6/17 888-24-297-G-01 rev. D • 08/17...
- Page 7 Set-up Connect Keyboard and Mouse to USB Hub USB (Type A) USB (Type A) NOTE: Bar Code Scanner should be connected directly to computer USB port. DO NOT connect Bar Code Scanner to the USB Hub. 7/17 888-24-297-G-01 rev. D • 08/17...
- Page 8 Set-up Set up laptop boosters so the screen fi ts through the slot in the worksurface and the bottom of the screen is visible when the worksurface is attached. 822-470-00 8/17 888-24-297-G-01 rev. D • 08/17...
- Page 9 Set-up Plug the following factory connected cables into your computer. USB: This cable runs from the USB Hub to your computer and uses your computer to power the USB Hub and Keyboard Lights. (NOTE: Your computer must be turned on for the USB Hub and Keyboard Lights to function). 9/17 888-24-297-G-01 rev.
- Page 10 Set-up DO NOT OBSTRUCT AIR VENTS! Obstructing air vents may cause overheating and result in equipment damage. If computer with cables are too wide, then follow these instructions. 10/17 888-24-297-G-01 rev. D • 08/17...
-
Page 11: Adjustment
Set-up Adjustment It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation. -
Page 12: Auto-Lock Drawer
Auto-Lock Drawer AutoLock Drawer Battery Pack Batteries may not come fully charged and may need to charge for several hours. To charge ALD batteries computer needs to be powered on and connected to the USB hub. AA Rechargeable Nickel Metal Hydride WARNING! Only use NiMh rechargeable batteries. - Page 13 - PINs entered on the cart and not managed by StyleLink may vary in length from 4-7 digits. - Ergotron recommends the following for choosing PIN digit length (assumes less than 1 in 25 chance of guessing random User PIN): Max number of User PINs >50, 5+digit length recommended...
- Page 14 Auto-Lock Drawer Unlock Drawer (2 methods): NOTE: All Drawers in row must be closed before a new row can be unlocked. • Enter User PIN and press ENTER (only numbers for available drawer rows fl ash green), then press desired drawer row number*. •...
-
Page 15: Ergonomics
Set-up Keyboard Light Keyboard Light will automatically turn off after 15 minutes if not manually turned off . Ergonomics Working Moving customize - to your size stow - before you go 1 Set top of monitor screen about one inch below eye level - Release brake and lift or lower riser 1 During normal movement, release brake and lower worksurface to lowest as needed. -
Page 16: Maintenance & Safety
CAUTION: Release Lift Brake before moving work surface! Moving work surface while Lift Brake is engaged may cause serious damage to Lift Engine. WARNING: In the event that repair of the StyleView Cart is needed, contact Ergotron Customer Care immediately. Cart repair can only be performed by Ergotron, Inc. or by an Ergotron authorized agent. - Page 17 2. Always replace with similar size battery (33 A-h to replace 33 A-h) and always replace in pairs For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com © 2015 Ergotron, Inc. All rights reserved. 17/17...
