Ergotron StyleView SV44 User Manual

Ergotron StyleView SV44 User Manual

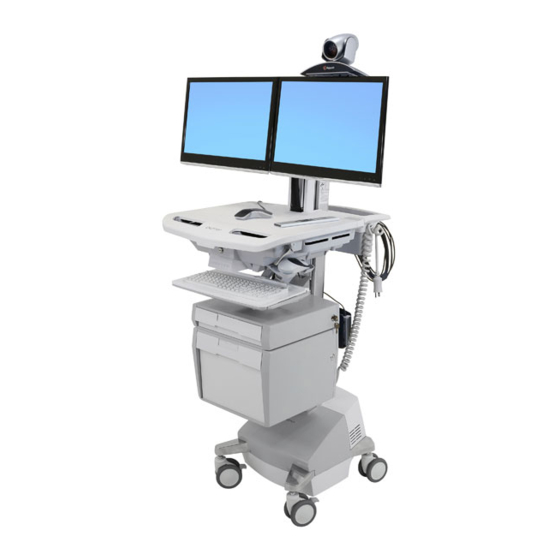

Telepresence cart with single lcd and power system
Hide thumbs Also See for StyleView SV44:

Advertisement

StyleView powered carts provide electrical AC power for mobile point
of care computing equipment in a healthcare environment. The carts
are not intended to power medical products or devices. Outlets are
provided to power information technology equipment only such as
computer equipment, computer peripherals, and teleconferencing
system equipment.
Components / Tools Needed ................................................................................... 2
Features & Specifi cations ................................................................................................. 3 - 4
Dimensions .............................................................................................................................5
Set-up ................................................................................................................................ 6-20
Battery Charge/Discharge .....................................................................................................7
Adjustment .................................................................................................................... 17-18
Auto-Lock Drawer ........................................................................................................... 19-20
Change Fuse (1 Amp) and Reset Circuit Breakers ..............................................................21
Change Power System Batteries ...................................................................................22 - 23
Cart Storage (long term/short term) ...................................................................................24
Ergonomics ...........................................................................................................................25
Maintenance & Safety ...................................................................................................25 - 28
For Warranty visit: www.ergotron.com/warranty
For Service visit: www.ergotron.com
For local customer care phone numbers visit: http://contact.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-24-314-G-01 rev. D • 08/17
StyleView® SV44 Telepresence Cart
with Single LCD and Power System
User Guide
Includes
Constant Force™
Technology
1/28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StyleView SV44 and is the answer not in the manual?

Questions and answers

Ashley Careen
April 2, 2025

Can this Ergotron SV 44 hold a DX 80 cisco unit

1 comments:
Mr. Anderson
April 2, 2025

The Ergotron StyleView SV44 includes a CPU holder that supports components 1.38"–3.75" (35–95 mm) thick. The Cisco DX80 has a thickness of approximately 3.3" (84 mm), which falls within this range. Therefore, the Ergotron StyleView SV44 can support a Cisco DX80 unit in terms of physical fit in the CPU holder.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Ergotron StyleView SV44

  • Page 1: Table Of Contents

    Cart Storage (long term/short term) ...................24 Ergonomics ...........................25 Maintenance & Safety ....................25 - 28 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com User's Guide - English Includes Guía del usuario - Español Constant Force™...
  • Page 2: Components / Tools Needed

    Components M4 x 8mm M4 x 8mm M4 x 12mm M4 x 10mm M4 x 10mm Camera Shelf M4 x 6mm M4 x 14mm M4 x 25mm CPU Holder Tools Needed 10mm 14mm (9/16") IMPORTANT! This product will need tension adjustments once installation is complete. Make sure all equipment is properly installed on the product before attempting range of motion or tension adjustments.
  • Page 3: Features & Specifi Cations

    Medical Grade Power Strip: 120VAC/60 Hz; Output: 120VAC/60 Hz, 15 A maximum, total. when the equipment is operated in a commercial Ergotron's Medical Grade Power Strip includes 4 power outlets with individual protectors, power indicator light, environment. This equipment generates, uses, and can...
  • Page 4: Features & Specifi Cations

    Features & Specifi cations 20˚ 5" 11.8" (127 mm) (300 mm) 5˚ 24˚ 12˚ 90˚ 90˚ Weight Capacity With Independent LCD Lift: Without Independent LCD Lift: 6-14 lbs (2.7-6.4 kg) 20 lbs (9 kg)* * See "How To Eliminate Independent LCD Lift"...
  • Page 5: Dimensions

    Dimensions 14.63" (372 mm) 7" - 12" (178-305 mm) 13.4" 50.5" (340 mm) (1283 mm) 3.27" 3.4" (83 mm) (86 mm) 7.4" 31" (188 mm) (787 mm) 8.5" 2.5" 43" 15.4" (216 mm) 31" - 51" 3.7" 2.9" (64mm) (74 mm) (1092 mm) (390 mm) 19.75"...
  • Page 6: Set-Up

    Set-up Release Brake to move riser. CAUTION! Completely release brake engagement before raising or lowering the cart. Raising or lowering the cart with the brake partially engaged may cause product damage. 6/28 888-24-314-G-01 rev. D • 08/17...
  • Page 7: Battery Charge/Discharge

    Battery has less than 30% charge. Light is red and alarm beeps. Plug-in power cord and charge contact Ergotron Customer Care. to 100%! You can use cart while charging. Alarm Mute button. Pressing this will temporarily mute alarm.
  • Page 8 Set-up 8/28 888-24-314-G-01 rev. D • 08/17...
  • Page 9 Set-up Connect Keyboard and Mouse to USB Hub USB (Type A) USB (Type A) NOTE: Bar Code Scanner should be connected directly to computer USB port. DO NOT connect Bar Code Scanner to the USB Hub. 9/28 888-24-314-G-01 rev. D • 08/17...
  • Page 10 Élevez l’ é cran au plus haut de l’ajustement vertical AVANT de le retirer. NE retirez PAS la vis d’arrêt avant que l’ é cran soit fixé. Dans un tel cas, le pivot d'écran se relèverait rapidement et cela pourrait engendrer des blessures. www.ergotron.com 822-055 M4 x 6mm If your monitor has recessed...
  • Page 11 Set-up M4 x 14mm 3 Mounting Options 11/28 888-24-314-G-01 rev. D • 08/17...
  • Page 12 Set-up To increase space and improve airfl ow, power brick may be stored under the storage area. M4 x 12mm Plug in power cables. WARNING! Connecting electrical equipment to the outlet eff ectively leads to creating a medical system and the result can be a reduced level of safety.
  • Page 13 USB Hub, Keyboard Lights and Fan to function). Optional StyleLink: This USB cable runs from the power system to your computer for StyleLink Software. For more info on StyleLink visit: http://4support.ergotron.com. WARNING: Fan must always be running when computer is on.
  • Page 14 Set-up Placement of CPU's in Secure Storage Area: USFF (Ultra Small Form Factor) Thin Client DO NOT OBSTRUCT AIR VENTS! Obstructing air vents may cause overheating and result in equipment damage. Center CPU in storage area. To increase space and improve airfl ow, power brick may be stored under the storage area.
  • Page 15 Set-up 15/28 888-24-314-G-01 rev. D • 08/17...
  • Page 16 Set-up Keyboard Light 1. Turn Computer on. 2. Test Keyboard Light. Keyboard Light will automatically turn off after 15 minutes if not manually turned off . 16/28 888-24-314-G-01 rev. D • 08/17...
  • Page 17: Adjustment

    Adjustment It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation. Adjustments should move smoothly and easily through the full range of motion and stay where you set it.
  • Page 18 Élevez l’ é cran au plus haut de l’ajustement vertical AVANT de le retirer. NE retirez PAS la vis d’arrêt avant que l’ é cran soit fixé. Dans un tel cas, le pivot d'écran se relèverait rapidement et cela pourrait engendrer des blessures. www.ergotron.com 822-055 18/28 888-24-314-G-01 rev. D • 08/17...
  • Page 19: Auto-Lock Drawer

    - PINs entered on the cart and not managed by StyleLink may vary in length from 4-7 digits. - Ergotron recommends the following for choosing PIN digit length (assumes less than 1 in 25 chance of guessing random User PIN): Max number of User PINs >50, 5+digit length recommended...
  • Page 20 Auto-Lock Drawer Unlock Drawer (2 methods): NOTE: All Drawers in row must be closed before a new row can be unlocked. • Enter User PIN and press ENTER (only numbers for available drawer rows fl ash green), then press desired drawer row number*. •...
  • Page 21: Change Fuse (1 Amp) And Reset Circuit Breakers

    AC Outlet power source. Power button for 1 - 3 seconds. Power light will shut off . 5 Amp Fuse Recommended: Before reseting circuit breakers, contact Ergotron to determine cause of trip. Littelfuse 312005HXP FUSE RATING VOLTAGE 250V CURRENT...
  • Page 22: Change Power System Batteries

    • Replace batteries with same Amp/Hour rating batteries only. and possible fire hazard. pourrait provoquer un incendie. • Only Ergotron-specifi ed batteries may be used in the StyleView Power System. Please call customer care for more details. • Recycle battery or contact Ergotron for proper battery disposal www.ergotron.com...
  • Page 23 Caution: Replace only one battery at a time. Do NOT swap battery cables, doing so will cause sparking and trip the circuit breakers. Black Caution: Remove Black (-) before removing Red (+). LEAD Recycle battery or contact Ergotron for proper battery disposal guidelines. BATTERY Black Caution: Connect Red (+) before connecting Black (-).
  • Page 24: Cart Storage (Long Term/Short Term)

    Store battery in cool, dry area while Cart is out of use. Optimal storage temperature is 15°C/59°F. Battery voltage should be checked every three (3) months. If voltage drops below 12.5VDC, fully recharge battery. Contact Ergotron Customer Care for information about how storage might impact the battery warranty.
  • Page 25: Ergonomics

    Ergonomics Working Moving customize - to your size stow - before you go 1 Set top of monitor screen about one inch below eye level - Release brake and lift or lower riser 1 During normal movement, release brake and lower worksurface to as needed.
  • Page 26 CAUTION: Release Lift Brake before moving work surface! Moving work surface while Lift Brake is engaged may cause serious damage to Lift Engine. WARNING: In the event that repair of the StyleView Cart is needed, contact Ergotron Customer Care immediately. Cart repair can only be performed by Ergotron, Inc. or by an Ergotron authorized agent.
  • Page 27 Maintenance & Safety Recommended Periodic Inspection and Maintenance Earth Bond Test: To ensure safety grounding between the power cord ground connection and any accessible metal Component Action How often By whom parts on the cart, although not mandatory, the following test UI, Ethernet, Inspect for wear, is recommended to be performed every two years using a...
  • Page 28 Magnetic Field location in a typical commercial IEC 61000-4-8 or hospital environment. Note: U is the AC mains voltage prior to application of the test level © 2015 Ergotron, Inc. All rights reserved. 28/28 888-24-314-G-01 rev. D • 08/17...
