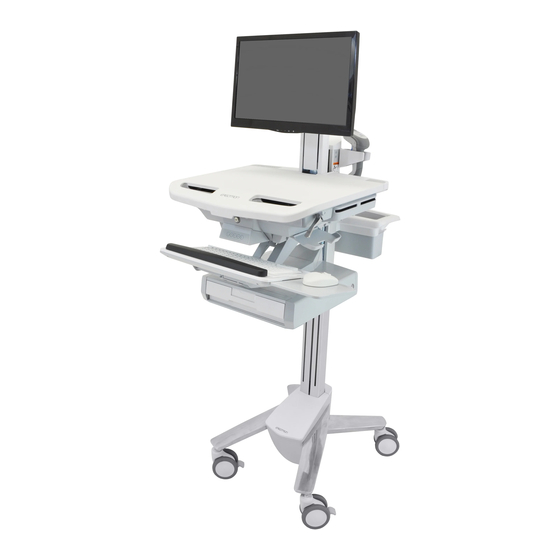

Ergotron StyleView SV43-1310-0 User Manual

With lcd mount
Hide thumbs

Advertisement

Quick Links

Download this manual
®
Features & Specifi cations ............................................... 2 - 4
Set-up ............................................................................ 5 - 18
Adjustment ................................................................. 14- 15
Auto-Lock Drawer ........................................................ 16 -18
Ergonomics .........................................................................18
Maintenance & Safety ................................................ 19 - 20
www.ergotron.com |
|
|
|
USA: 1-800-888-8458
Europe: +31 (0)33-45 45 600
China: 400-120-3051
Japan: japansupport@ergotron.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView SV43-1310-0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron StyleView SV43-1310-0

Summary of Contents for Ergotron StyleView SV43-1310-0

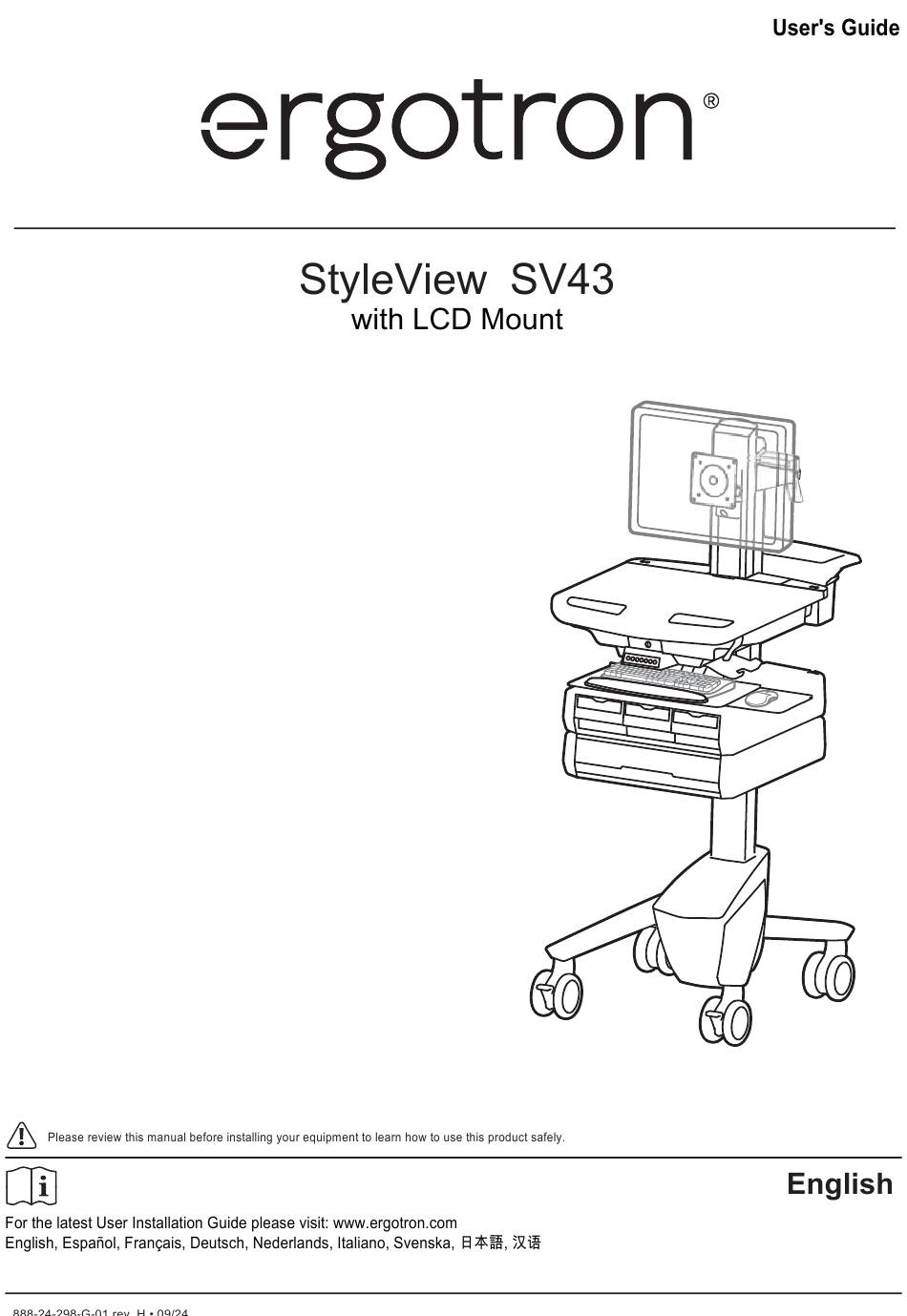

  • Page 1 Features & Specifi cations ..........2 - 4 Set-up ................5 - 18 Adjustment ..............14- 15 Auto-Lock Drawer ............16 -18 Ergonomics .................18 Maintenance & Safety ..........19 - 20 www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com...
  • Page 2 é quipement fixé, d’ e xpédier le chariot, de stocker le chariot Changes or modifi cations not expressly approved by Ergotron, Inc. could void the user’s authority to operate the equipment.
  • Page 3 Features & Specifi cations Part Number Auto-Lock Drawer SV43-1310-0 1 Drawer*/16 compartments SV43-13B0-0 1 Drawer*/9 compartments SV43-1320-0 2 Drawers*/32 compartments SV43-13A0-0 2 Drawers*/8 compartments SV43-13C0-0 2 Drawers*/8 compartments SV43-1330-0 3 Drawers*/48 compartments 4 Drawers*/28 compartments SV43-1340-0 SV43-1360-0 6 Drawers*/24 compartments SV43-1390-0 9 Drawers*/36 compartments *Auto-Lock Drawer...

  • Page 4: Features And Specifications

    Features & Specifi cations 20˚ 5" (127 mm) 5˚ 20" (508 mm) 12˚ 16" (406 mm) 24˚ 180˚ Features & Specifi cations 14.63" 19.5" (372 mm) (495 mm) 7" - 12" 17" (178-305 mm) (432 mm) 13.4" 50.5" 3.27" 3.4" (340 mm) (1282 mm) (83 mm)

  • Page 5: Tools Needed

    Set-up Components M4 x 5mm M4 x 10mm M4 x 10mm M3.5 x 6mm M4 x 8mm M4 x 8mm M4 x 12mm Tools Needed 14mm (9/16") 10mm...
  • Page 6 Set-up...
  • Page 7 Set-up CAUTION: Close worksurface before opening drawers. Open only one drawer at a time. Do Not push cart when drawers or worksurface are open. Failure to follow these instructions may cause the cart to be unstable.
  • Page 8 Élevez l’ é cran au plus haut de l’ajustement vertical AVANT de le retirer. NE retirez PAS la vis d’arrêt avant que l’ é cran soit fixé. Dans un tel cas, le pivot d'écran se relèverait rapidement et cela pourrait engendrer des blessures. www.ergotron.com 822-055...
  • Page 9 Set-up...
  • Page 10 Set-up...
  • Page 11 Set-up WARNING DO NOT OPERATE WITHOUT GUARD IN PLACE 822-447-00...

  • Page 13: Keyboard Light

    40" (1016 mm) M3.5 x 6mm Keyboard Light Keyboard Light will automatically turn off after 15 minutes if not manually turned off .
  • Page 14 It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
  • Page 15 Élevez l’ é cran au plus haut de l’ajustement vertical AVANT de le retirer. NE retirez PAS la vis d’arrêt avant que l’ é cran soit fixé. Dans un tel cas, le pivot d'écran se relèverait rapidement et cela pourrait engendrer des blessures. www.ergotron.com 822-055...
  • Page 16 Auto-Lock Drawer AutoLock Drawer Battery Pack Batteries may not come fully charged and may need to charge for several hours. To charge ALD batteries computer needs to be powered on and connected to the USB hub. AA Rechargeable Nickel Metal Hydride WARNING! Only use NiMh rechargeable batteries.
  • Page 17 - PINs entered on the cart and not managed by StyleLink may vary in length from 4-7 digits. - Ergotron recommends the following for choosing PIN digit length (assumes less than 1 in 25 chance of guessing random User PIN): Max number of User PINs >50, 5+digit length recommended...
  • Page 18 Auto-Lock Drawer Unlock Drawer (2 methods): NOTE: All Drawers in row must be closed before a new row can be unlocked. • Enter User PIN and press ENTER (only numbers for available drawer rows fl ash green), then press desired drawer row number*. •...

  • Page 19: Maintenance And Safety

    Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the StyleView Cart unless directed to do so through Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-certifi ed entity may adjust, service or replace StyleView Cart components. If any component on the Cart is missing or damaged, the Cart must not be used, contact Ergotron Customer Care immediately to request a replacement part.
  • Page 20 CAUTION: Release Lift Brake before moving work surface! Moving work surface while Lift Brake is engaged may cause serious damage to Lift Engine. WARNING: In the event that repair of the StyleView Cart is needed, contact Ergotron Customer Care immediately. Cart repair can only be performed by Ergotron, Inc. or by an Ergotron authorized agent.
