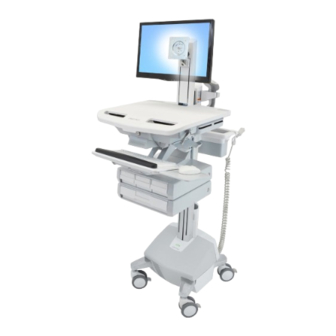

Ergotron StyleView SV44 User Manual

Cart with lcd mount and life power system
Hide thumbs Also See for StyleView SV44:

Advertisement

Quick Links

Download this manual

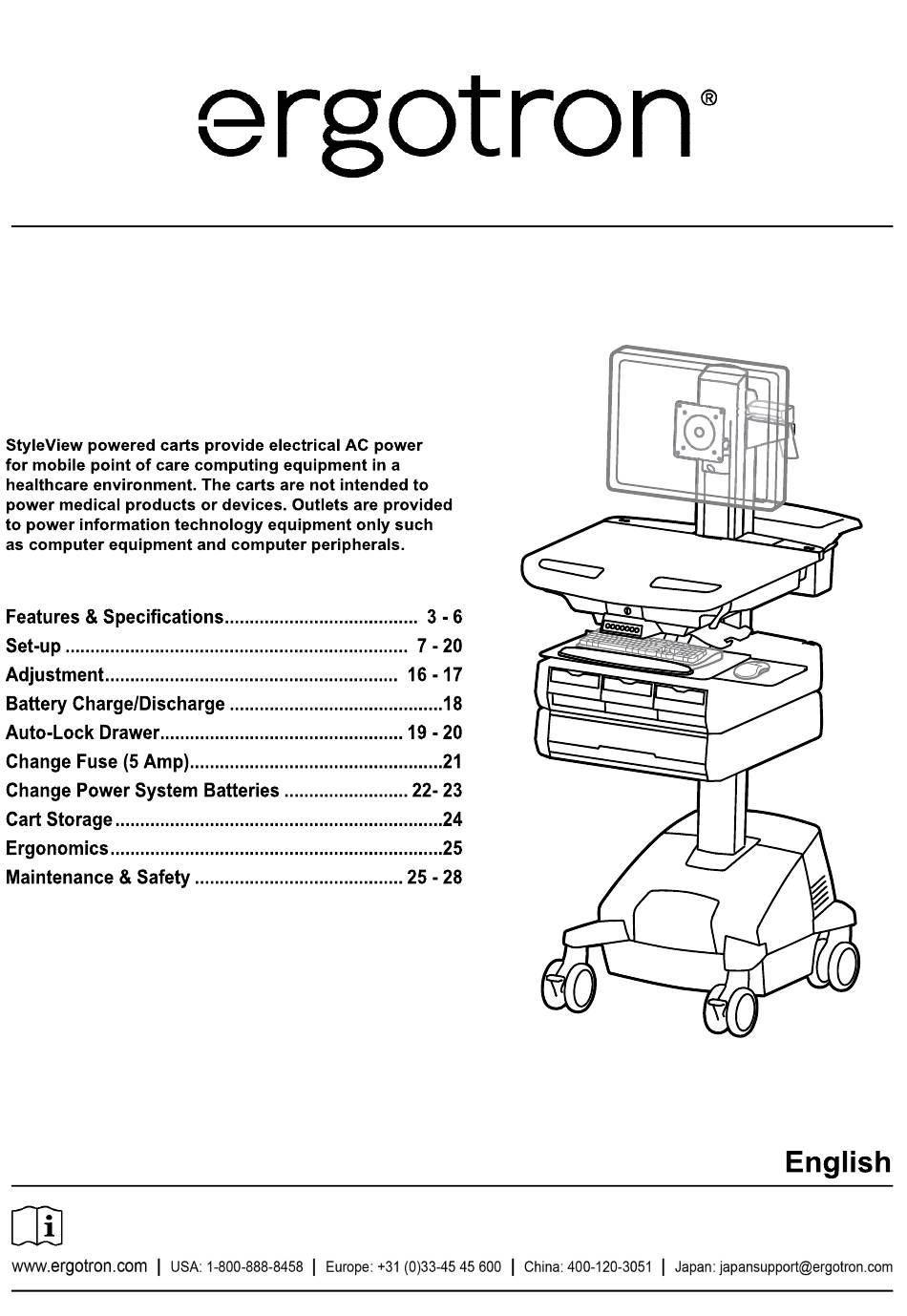

User Guide
StyleView
SV44 Cart
®
with LCD Mount and LiFe Power System
For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com
English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语
888-24-308-G-04 rev. P • 05/22
1 of 29

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView SV44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron StyleView SV44

Summary of Contents for Ergotron StyleView SV44

  • Page 1 SV44 Cart ® with LCD Mount and LiFe Power System For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 888-24-308-G-04 rev. P • 05/22 1 of 29...

  • Page 2: Tools Needed

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Please contact Ergotron for complete EMC compatibility information. Components...
  • Page 3 Height Adjustable LCD Mount attaches LCDs or tablet PC's with 75x75 or 100x100mm mounting interface Worksurface 2a. Worksurface Lock and Release User Interface for Power System Secure Storage for Laptop, Thin Client or CPU Front Handle Height Adjustment Brake Handle USB Hub connects keyboard and mouse USB cables Keyboard tray slides out, tilts and allows for right or left mousing with attached mouse holder Keyboard Light under Front Handle...
  • Page 4 SV44-1312-1 1 Drawer*/16 compartments SV44-13B2-1 1 Drawer*/9 compartments SV44-1322-1 2 Drawers*/32 compartments SV44-13A2-1 2 Drawers*/8 compartments Input: 120VAC/60 Hz, 5.0A; Output: 120VAC/60 Hz, 150VA, 150W. SV44-13C2-1 2 Drawers*/8 compartments • The cart and power system are certifi ed to UL 60601 and CAN/CSA-C22.2 601.1- SV44-1332-1 3 Drawers*/48 compartments SV44-1342-1...
  • Page 5 See "How To Eliminate Independent CAUTION: DO NOT EXCEED MAXIMUM LCD Lift" section LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! see inset, below *Combined LCD and CPU Compartment weight: <23 lbs (10.4 kg). If the combined LCD and CPU weight is greater than 27 lbs (12.2 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately).
  • Page 6 Front View Top View Side View 888-24-308-G-04 rev. P • 05/22 6 of 29...
  • Page 7 888-24-308-G-04 rev. P • 05/22 7 of 29...
  • Page 8 (Type A) (Type A) NOTE: Bar Code Scanner should be connected directly to computer USB port. DO NOT connect Bar Code Scanner to the USB Hub. M4 x 5mm 888-24-308-G-04 rev. P • 05/22 8 of 29...
  • Page 9 M4 x 10mm M4 x 12mm 888-24-308-G-04 rev. P • 05/22 9 of 29...
  • Page 10 Plug in power cables. Route power cable down along tower. If you do not have power outlets located here, then follow steps 'a' - 'f' to route power cables. 6' (1.8 m) Power cables need to be 6' (1.8 m) long. 888-24-308-G-04 rev.
  • Page 11 888-24-308-G-04 rev. P • 05/22 11 of 29...
  • Page 12 USB Hub, Keyboard Lights and Fan to function). This USB cable runs from the power system to your computer for StyleLink Software. For more info on StyleLink visit: http://4support. ergotron.com . Fan must always be running when computer is on.
  • Page 13 DO NOT OBSTRUCT AIR VENTS! Obstructing air vents may cause overheating and result in equipment damage. If computer with cables is too wide, then follow these instructions. 888-24-308-G-04 rev. P • 05/22 13 of 29...
  • Page 14 888-24-308-G-04 rev. P • 05/22 14 of 29...
  • Page 15 Wheel Rotation Wheel Rotation and Swivel Locked 888-24-308-G-04 rev. P • 05/22 15 of 29...
  • Page 16 M4 x 8mm 14mm (9/16") NOTE: Adjustment may require 40 - 60 revolutions. 888-24-308-G-04 rev. P • 05/22 16 of 29...
  • Page 17 10mm M4 x 8mm 888-24-308-G-04 rev. P • 05/22 17 of 29...
  • Page 18 45 min Battery has less than 10% charge and alarm beeps. Light is orange and then turns red please contact Ergotron Customer when battery has less than 5% charge. Plug-in power cord and charge to 100%! You can Care.
  • Page 19 - PINs entered on the cart and not managed by StyleLink may vary in length from 4-7 digits. - Ergotron recommends the following for choosing PIN digit length (assumes less than 1 in 25 chance of guessing random User PIN): Max number of User PINs >50, 5+digit length recommended...
  • Page 20 Unlock Drawer (2 methods): NOTE: All Drawers in row must be closed before a new row can be unlocked. • Enter User PIN and press ENTER (only numbers for available drawer rows fl ash green), then press desired drawer row number*. •...
  • Page 21 Turn power system off by Disconnect Power System from power source. Turn off all mounted equipment. holding down the AC Outlet Power button for 1 - 3 seconds. Power light will shut off . Recommended: Littelfuse 312005HXP VOLTAGE 250V CURRENT OPERATING SPEED FAST-ACTING BREAKING CAPACITY...

  • Page 22: Disconnect Cables

    • Replace fi rst battery before removing second battery. • Replace batteries with same Amp/Hour rating batteries only. • Only Ergotron-specifi ed batteries may be used in the StyleView Power System. Please call customer care for more details. • Recycle battery or contact Ergotron for proper battery disposal guidelines.

  • Page 23: Battery Harness

    Battery Harness Battery "Yellow" Comm 3 888-24-308-G-04 rev. P • 05/22 23 of 29...
  • Page 24 Once the process has fi nished the power system will resume charging as normal. if the low charge recovery process takes longer than 45 min please contact Ergotron Customer Care.
  • Page 25 stow - before you go customize - to your size 1 During normal movement, release brake and lower worksurface to 1 Set top of monitor screen about one inch below eye level - Release brake and lift or lower lowest position for optimal stability and unobstructed view. riser as needed.
  • Page 26 It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure surface is not harmed. Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the StyleView Cart unless directed to do so through Ergotron- approved documentation (i.e.
  • Page 27 Earth Bond Test: To ensure safety grounding between the Recommended Periodic Inspection and Maintenance power cord ground connection and any accessible metal parts on the cart, although not mandatory, the following test Component Action How often By whom is recommended to be performed every two years using a UI, Ethernet, USB Inspect for wear, pinching, bad calibrated medical device safety analyzer.
  • Page 28 Ergotron Electromagnetic Guidance and Manufacturer’s Declaration Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The Powered Computer Cart is intended for use in the electromagnetic environment specifi ed below. The customer or the user of the Powered Computer Cart should assure that it is used in such an environment.
  • Page 29 For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, reference the serial number. © 2014 Ergotron, Inc. All rights reserved. StyleView® is a registered trademark of Ergotron, Inc. 888-24-308-G-04 rev. P • 05/22 29 of 29...
