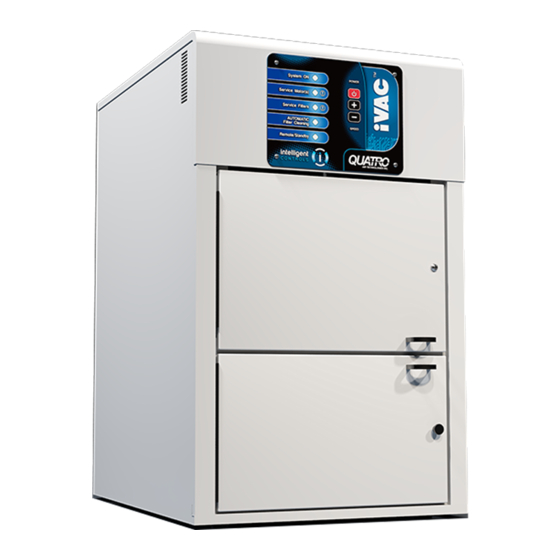

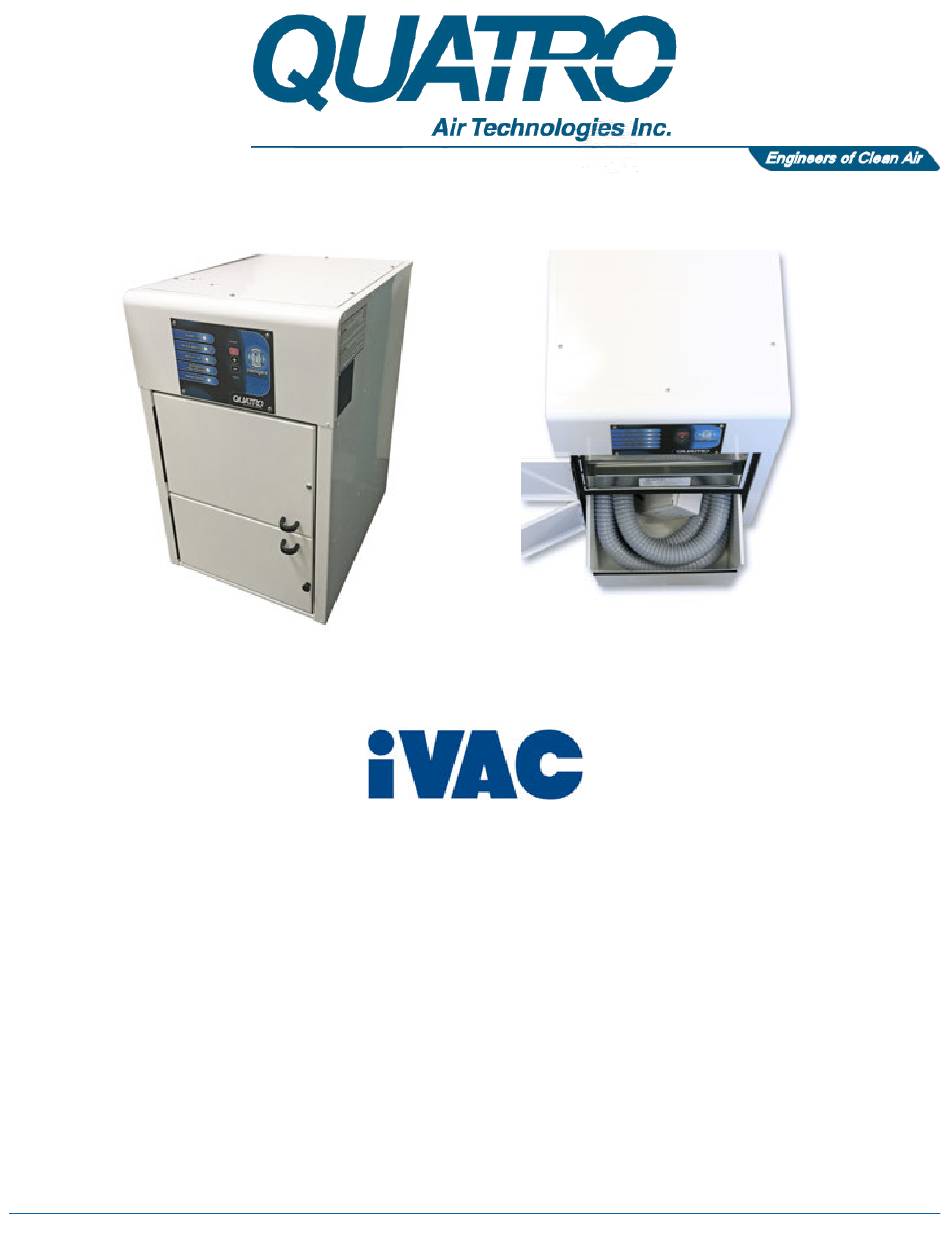

- Page 1 Premium SeriesTurbine Dust Collectors iVAC Compact 2.0 iVAC Infinity 2.0, iVAC TWIN 2.0 Operation and Maintenance Manual © Quatro Air Technologies| MAY 2019 | All rights reserved |...
-
Page 2: Table Of Contents
Contacting Quatro Air ........ - Page 3 Disclaimer................29 Page 3 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
-
Page 4: Introduction
Contacting Quatro Air If you require assistance with this or any other Quatro Air product, please call or email technical support (tech@quatroair.com). We value your comments. To help us assist you more effectively with problem reports, the following information may be required when contacting Quatro Air Support: •... -
Page 5: Contact Information
1-877-978-2876 (US and Canada) 1-514-630-4454 1-514-630-4444 (local calling) email Address (Head Office) General inquiries: info@quatroair.com 30 Hymus Blvd. Montreal, Quebec, Canada Technical Support: tech@quatroair.com H9R 1C9 Sales: sales@quatroair.com Page 5 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 6: Important Precautions And Instructions
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Page 6 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 7: System Contents
6,12 or 25 6ft of 1.5`` diameter hose • 6ft. remote hand-switch 2.C CadCam Series units include: • 6ft. of appropriate hose • Auto-Start cable to match milling machine Page 7 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 8: Installation
The HEPA filter in this system is NOT cleanable. It will need to be removed and disposed of and replaced periodically. • The Main filter should be replaced after approx 24 months of use. • "Filter Service and Replacement" on page 15 for more info. Page 8 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 9: Ensuring Proper Grounding Of Abs/Pvc Fittings And Tubing For A Dust Collection System
1. Peel off some of the “support” wire that is embedded inside the hose—peel off enough so that it reaches one of the inlet plate screws. 2. Tighten the screw to ground the wire (as shown below on the right) to ground to the unit. Page 9 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 10: Controls
Never use any form of remote control that switches the power source on and off. In doing so, serious damage to the controls and motors may occur. Contact QUATRO if power switching is the only way you have to remotely control the unit. -
Page 11: Led Diagnostics Table R17.0 And Higher - Ivac
"Filter Service and Replacement" on page 15 SOLID Filter Alarm Muted Replace Filter(s) ASAP And RESET ALERT L1 Flashing Slowly Alarm Mute Details On Previous Page "Filter Service and Replacement" on page 15 Page 11 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 12: Normal (Manual) Operation
Standby Piece Of Equipment OR Mc2 Remote Function (If Equipped) LED 5 (L5) Fading Shutdown Delay QUATRO System Continues To Run For A Short Period To Remove All IN-OUT Debris From Work Area Flashing Unit Is In Standby Waiting For Remote Switch To Close (Turn On) OR To Receiving Remote... -
Page 13: Remote (Automatic) Operation And Remote Status
DB9 port—the connection is made using the AA375 hand-switch or AA175 Remote Foot-pedal or specific Auto-Start cable connection to milling or dust-producing machine. DB9 Pin-Out Information Remote Operation Page 13 © Quatro Air Technologies| MAY 2019 | All rights reserved |... - Page 14 Then simply have the other piece of equipment close (short) the dry contact or supply a remote control voltage. When the unit is stopped the QUATRO System will shut down after a short delay. After Remote Sensing Has Been Activated: •...
-
Page 15: Filter Service And Replacement
15, 30, 60 minutes. See "Filter Cleaning System (FCS) Setting Menu" on page If operating more than 120 minutes at a time or in a heavy dust environment, Quatro recommends using the OnLine cleaning mode OnLine Filter Cleaning (Default Setting) NOTE: Recommended setting for milling or any continuous dust-generating process. -
Page 16: Filter Cleaning System (Fcs) Setting Menu
Main filter and/or the HEPA will need to be replaced. If Service Filter(s) alert is ON SOLID both the Main filter and the HEPA should be replaced. Page 16 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 17: Filter And Dust Tray Access
2. Loosen the plastic wingnuts located below the filter, accessible from dust/debris tray section. iVAC Compact and iVAC 1: Loosen/remove 2 wingnuts Remove Main filter from above iVAC 2: Loosen/remove 6 wingnuts Remove Main filter from above Page 17 © Quatro Air Technologies| MAY 2019 | All rights reserved |... - Page 18 The Main filter should be replaced after 24 months of use OR immediately if any tear is found on the pleats or the gasket. 1. Unplug power cord and open filter access door(s). Page 18 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
- Page 19 5. Remove and replace the main filter (the main filter can also be removed, cleaned and reinstalled). On iV and iVT units have ensure the Main filter is up against the filter guides and not sitting on top of them. Page 19 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
- Page 20 Resetting Service Filter(s) Alert 1. Ensure filter access door is closed 2. Plug power back to the unit 3. Press and hold SPEED UP and DN simultaneously until unit BEEPS Page 20 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
- Page 21 Press SPEED DN (3 Times) until Auto-Cleaning Filter LED is flashing. • Press and HOLD POWER button while Auto-Cleaning Filter LED is flashing and unit is beeping continuously. • Release, when LED stops flashing and stops beeping. Page 21 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
- Page 22 Premium Series Operation and Maintenence Manual Filter Service and Replacement Replacement FCS Part Numbers Description Part Replacement FCS Motor 120V AR123-16 Replacement FCS Motor 230V AR123-26 Page 22 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
-
Page 23: Motor Service And Replacement
NOTE: Infinity motors must be replaced at the end of their service life. Infinity Motors Are Considered Consumables And Will Not Be Changed Under Warranty Unless Found To Be DEFECTIVE Within The Warranty Period. Consumed Brushes On Infinity Motors Are Not Covered under Warranty. Page 23 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 24: Replacement Instructions
Follow the instructions below. • Ensure filter access door is closed. • Plug power back to the unit. • Press and hold SPEED UP and DN simultaneously until unit BEEPS. Page 24 © Quatro Air Technologies| MAY 2019 | All rights reserved |... - Page 25 In some extreme cases motor life can even be less than 2000 hours and this is usually due to the system being run at a high pressure (dirty filters) for extended periods of time. Page 25 © Quatro Air Technologies| MAY 2019 | All rights reserved |...
-
Page 26: Troubleshooting
• Motor impeller contacting housing • Replace motor • Replace motor • Motor bearing failure For units equipped with iSeries Controls see the ‘Light Diagnostics Table” for additional troubleshooting. Page 26 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 27: Specifications
Approx. Shipping Weight: 41lbs / 19 kg 70lbs / 32 kg 97lbs / 44 kg * add approximately 4” (108mm) to depth dimension for standard hose and cable Page 27 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 28: General Replacement Parts
Rubber Grommets for INFINITY Motor Support (4 Pack) * AR045 Rubber Grommets for Brushless Motor Support (4 Pack) * AR045 External Rubber Feet Under Unit (4/kit) AR116 Page 28 © Quatro Air Technologies| MAY 2019 | All rights reserved |... -
Page 29: Warranty
QUATRO Air Technologies warrants its equipment to be free from defect in material and workmanship under normal use and service for a period of one year from date of shipment. QUATRO’s obligation under this warranty shall be limited to replacing any parts, thereof, which shall be demonstrated to have been defective. This is expressly in lieu of all other warranties, express or implied, including the warranties of merchantability and fitness.
