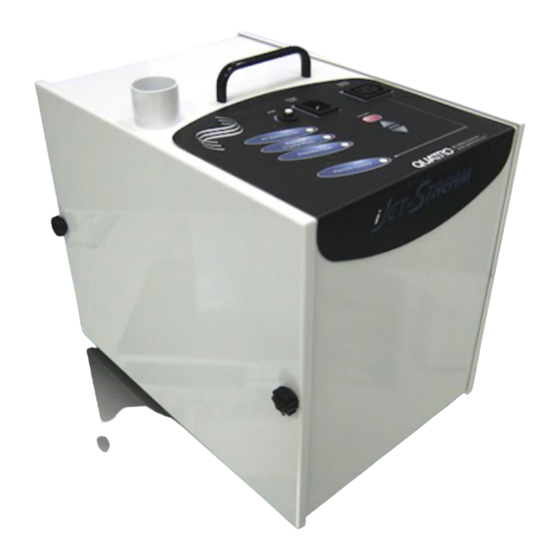

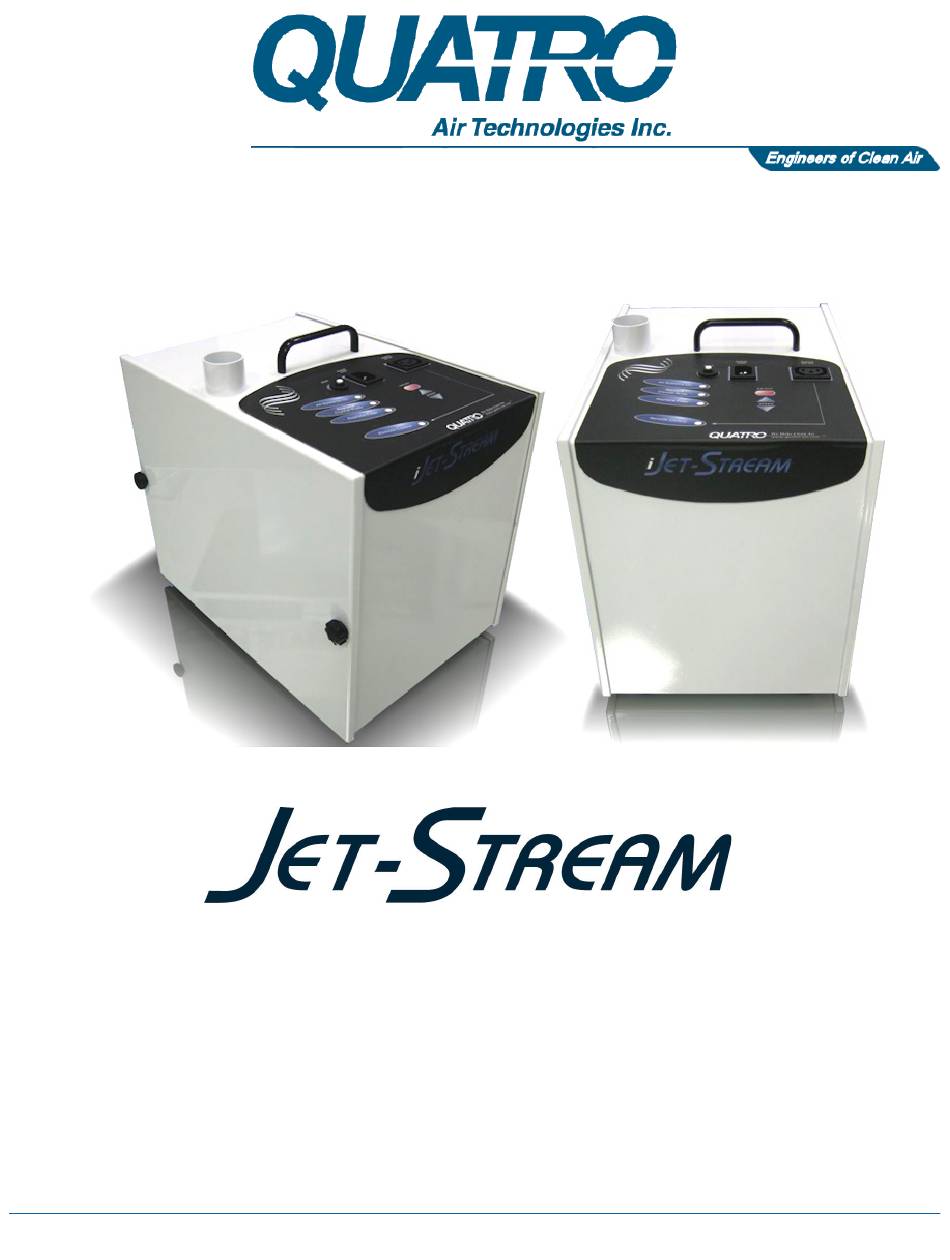

- Page 1 Compact Dust Collectors With i Series Controls JS-5293 and JHL-5293 Models Operation and Maintenance Manual © Quatro Air Technologies| JUNE 2019 | All rights reserved |...
-
Page 2: Table Of Contents
Replacement Filter Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Page 2 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... - Page 3 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Page 3 © Quatro Air Technologies| JUNE 2019 | All rights reserved |...
-
Page 4: Introduction
. Contacting Quatro Air If you require assistance with this or any other Quatro Air product, please call or email technical support (tech@quatroair .com) . We value your comments . -
Page 5: Contact Information
1-877-978-2876 (US and Canada) 1-514-630-4454 1-514-630-4444 (local calling) email Address (Head Office) General inquiries: info@quatroair.com 30 Hymus Blvd . Montreal, Quebec, Canada Technical Support: tech@quatroair.com H9R 1C9 Sales: sales@quatroair.com Page 5 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 6: System Contents
. For a seamless, automatic and user-friendly operation, opt for QUATRO’s "Custom Kits". These are specific auto-start cables (or hoses if necessary) to match your milling machine's exact specifications, call your dealer to order. -
Page 7: Important Precautions And Instructions
This is a class A product . In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures . Page 7 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 8: Pre-Startup Checklist
17 for more info . WARNING: All filters must be in place before operating the system. 3 . Connect the supplied hose (or optional arm) to the Quatro System . Startup REMINDER: Ensure to use proper voltage and sufficient amperage as indicated on the system before powering up the unit. -
Page 9: Series Controls
Never use any form of remote control that switches the power source on and off. In doing so, serious damage to the controls and motors may occur . Contact QUATRO if power switching is the only way you have to control the unit remotely . -
Page 10: Alarm Mute Feature
When mute is enabled, L1 Flashes and the muted alarms stay SOLID . The level of the alert will not be displayed until the 8 hour mute period is over . Page 10 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 11: Light Diagnostics Table (Rev 17.0 And Higher)
Motor Alarm Muted Replace Brushes OR Motor(s) ASAP And RESET L1 Flashing Slowly ALERT Alarm Mute Details On Previous Page "Motor Service and Replacement" on page 20 Page 11 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... - Page 12 -Motors Not Operating Due To Excess Heat. "Filter Service and Replacement" on page 17 -Access Door(s) Open . Close All Access Doors -Filters Not Or Improperly Installed . Verify Filters Page 12 © Quatro Air Technologies| JUNE 2019 | All rights reserved |...
-
Page 13: Variable Digital Speed Control And Autoflow
To enable the remote system startup simply supply a remote signal after the power supply and remote cable are connected to the system . The Jet-Stream System will respond by illuminating LED 1 (System On) and LED 5 (Remote/Standby) . -
Page 14: Remote (Automatic) Operation And Remote Status
Remote (Automatic) Operation and Remote Status The Quatro System is designed to be used with other pieces of equipment that can support remote operation and/or remote status monitoring . The connection is made using the AE427 QUATRO Universal Remote Cable . -
Page 15: Remote Operation
The Quatro Run Signal can only shut down the piece of equipment controlling it remotely if the piece of equipment supports that function. The piece of equipment must be set or programmed to shut itself off when the Quatro Run signal is OPENED . - Page 16 NC: Open Unit Has Shut Down NO: Closed Motors or Filters Require Service Immediately "Light Diagnostics Table (Rev 17 .0 and Higher)" on page 11 For More Info Page 16 © Quatro Air Technologies| JUNE 2019 | All rights reserved |...
-
Page 17: Filter Service And Replacement
Proper maintenance is critical to extend the life of the filtration system. The information presented below outlines basic maintenance procedures ensuring the unit will provide trouble-free operation for years to come . The Jet-Stream is designed to allow quick access to the filters. -
Page 18: Resetting Service Filters Alert
6 . Press and HOLD POWER button while Service Filter(s) LED is FLASHING and unit is BEEPING continuously . Release button when unit stops BEEPING 7 . LED will be OFF and unit will be ready to operate again Page 18 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 19: Replacement Filter Part Numbers
HEPA Standard F160 Stage 2 HEPA Optional F191S Stage 2 NOTE: Verify the filter(s) in your Quatro System for the correct part numbers before ordering. General Filter Maintenance Guide Stage Filter Reccomended Filter Change Interval iSeries Control Panel None Bag Filter... -
Page 20: Motor Service And Replacement
11 for details) . If you ignore the warning, the unit eventually will shut down to prevent damage . This will occur even if your Jet-Stream is in mid operation . It is advised to change the brushes when prompted or ASAP to avoid a shutdown . See "Servicing Motors... -
Page 21: Servicing Motors With Quick Change Brushes
Figure 3 - Brush casings and screws 5 . Replace both motor brushes making sure the locking tab on the brush is facing the motor and re-install the retaining screws . Page 21 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 22: Motor Replacement
A . Retaining nuts (4X) B . Motor-to-bracket mounting screws (4x) C . Black wire terminal D . Green wire terminal E . White wire terminal F . Motor retaining bracket Page 22 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... - Page 23 Service Motor(s) LED is FLASHING and unit is BEEPING • Press and HOLD POWER button continuously . • Release, when LED stops FLASHING and stops BEEPING . Page 23 © Quatro Air Technologies| JUNE 2019 | All rights reserved |...
-
Page 24: Troubleshooting
13” (330mm) High x 16” (406mm) Wide x 15” (381mm) Deep Voltage/Phase/Frequency, Current, Power 120/1/60, 7 Amps, 825 Watts Approximate Weight 28lbs (13kg) Inlets (1) 1 .5" diameter Page 24 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 25: Replacement Parts
E130 Remote Cable AE427 Replacement Black Door Knob Kit (2 pcs) AR097 External Rubber Feet under unit H615 Rubber Adapter, 1 .5"hose to 40mm Euro Inlet AA108 Page 25 © Quatro Air Technologies| JUNE 2019 | All rights reserved |... -
Page 26: Warranty
QUATRO Air Technologies warrants its equipment to be free from defect in material and workmanship under normal use and service for a period of one year from date of shipment . QUATRO’s obligation under this warranty shall be limited to replacing any parts, thereof, which shall be demonstrated to have been defective.
