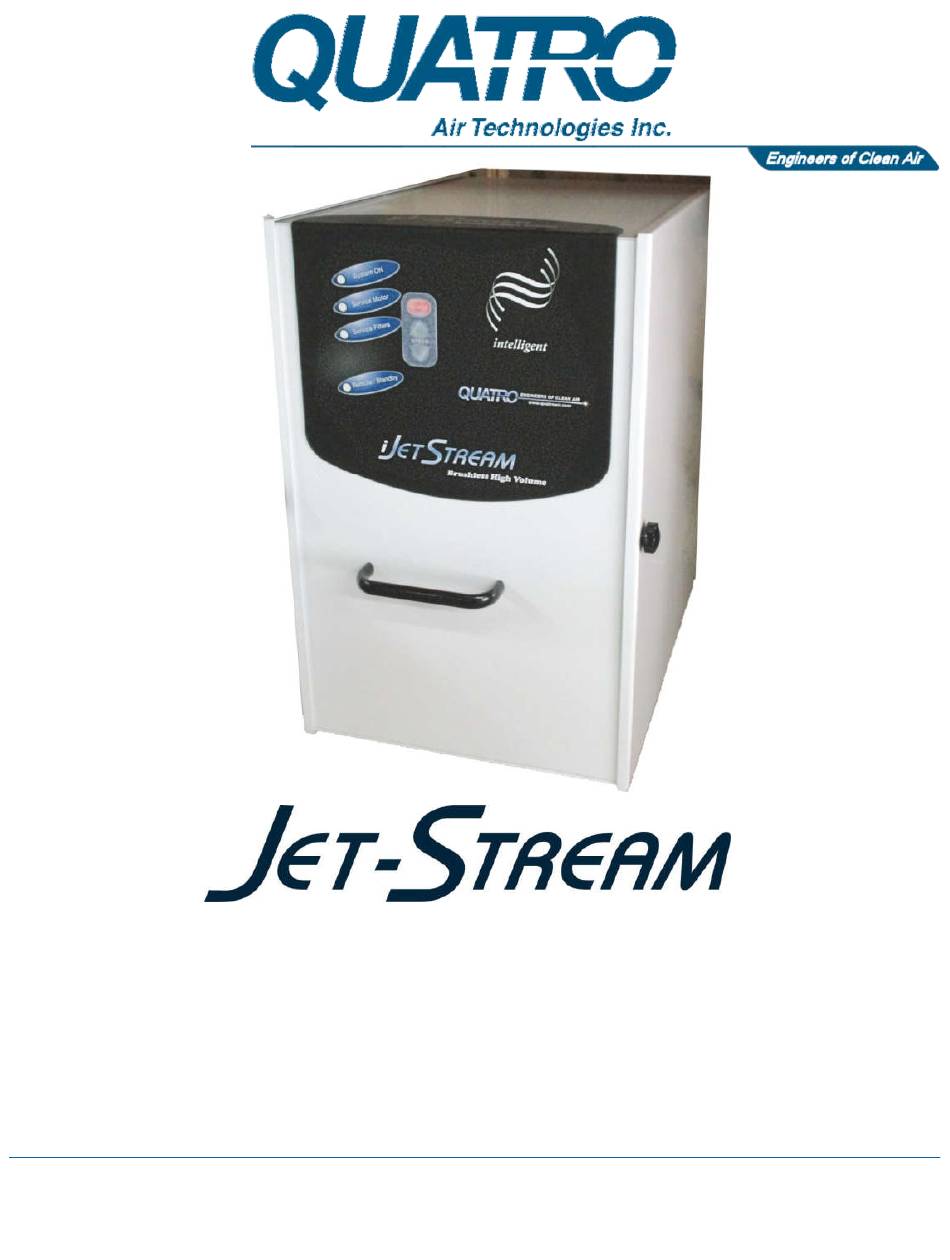

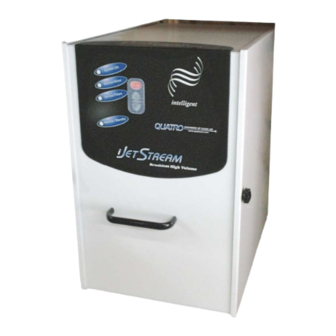

- Page 1 Tall Premium Brushless Dust Collectors With i Series Controls Operation and Maintenance Manual © Quatro Air Technologies| JULY 2019 | All rights reserved |...
-
Page 2: System Contents
Follow instructions depending on the type of signal your milling machine provides . For a seamless, automatic and user-friendly operation, opt for QUATRO’s "Custom Kits". These are specific auto-start cables (or hoses if necessary) to match your milling machine's exact specifications, call your dealer to order. - Page 3 Jet-Stream Tall Operation & Maintenance Manual Contacting Quatro Air Contacting Quatro Air If you require assistance with this or any other Quatro Air product, please call or email technical support (tech@quatroair .com) . We value your comments . • To help us assist you more effectively with problem reports, the following information may be required when contacting Quatro Air Support: •...
- Page 4 NOTE: This is a class A product . In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures . Page 4 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
-
Page 5: Pre-Startup Checklist
WARNING: All filters must be in place before operating the system. 3 . Connect the supplied hose (or optional arm) to the Jet-Stream . Startup REMINDER: Ensure to use proper voltage and sufficient amperage as indicated on the system before powering up the unit. - Page 6 Never use any form of remote control that switches the power source on and off. In doing so, serious damage to the controls and motors may occur . Contact QUATRO if power switching is the only way you have to control the unit remotely .
- Page 7 When mute is enabled, L1 Flashes and the muted alarms stay SOLID . The level of the alert will not be displayed until the 8 hour mute period is over . Page 7 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
- Page 8 Motor Alarm Muted Replace Brushes OR Motor(s) ASAP And RESET L1 Flashing Slowly ALERT Alarm Mute Details On Previous Page "Motor Service and Replacement" on page 20 Page 8 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
- Page 9 -Motors Not Operating Due To Excess Heat . "Filter Service and Replacement" on page 17 -Access Door(s) Open . Close All Access Doors -Filters Not Or Improperly Installed . Verify Filters Page 9 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
- Page 10 To enable the remote system startup simply supply a remote signal after the power supply and remote cable are connected to the system . The Jet-Stream System will respond by illuminating LED 1 (System On) and LED 5 (Remote/Standby) .
- Page 11 Remote (Automatic) Operation and Remote Status The Quatro System is designed to be used with other pieces of equipment that can support remote operation and/or remote status monitoring . The connection is made using the AE427 QUATRO Universal Remote Cable .
- Page 12 The status signals can either return a “signal” provided by your equipment or output a 12VDC+ or 12VDC-, depending on how the AE427 remote cable is wired . The Quatro System uses a single “common” for both the Run and Fault Signals .
- Page 13 NC: Open Unit Has Shut Down NO: Closed Motors or Filters Require Service Immediately "Light Diagnostics Table (Rev 17 .0 and Higher)" on page 11 For More Info Page 13 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
- Page 14 Proper maintenance is critical to extend the life of the filtration system. The information presented below outlines basic maintenance procedures ensuring the unit will provide trouble-free operation for years to come . The Jet-Stream Tall is designed to allow quick access to the filters.
- Page 15 Hold for 10+ seconds; when panel is beeping continuously, release buttons . In this condition, “System ON” LED is FLASHING quickly . 5 . Press SPD DN until “Service Filters” LED is FLASHING . Page 15 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
- Page 16 (Bag Filter)YELLOW Anti-Microbial (5 Pack) AG205-5 Stage 1 HEPA Standard F191S Stage 2 NOTE: Verify the filter(s) in your Quatro System for the correct part numbers before ordering. General Filter Maintenance Guide Stage Filter Reccomended Filter Change Interval iSeries Control Panel...
- Page 17 . To avoid downtime, “Service Motor(s) LED will illuminate when motor is approximately 90% worn . If you ignore the warning, the unit eventually will shut down to prevent damage . This will occur even if your Quatro system is in mid operation.
- Page 18 12 . Press & HOLD POWER button while “Service Motor(s) LED is FLASHING & unit is BEEPING continuously . 13 . Release when LED stops FLASHING & stops BEEPING . Page 18 © Quatro Air Technologies| JULY 2019 | All rights reserved |...
-
Page 19: Troubleshooting
Replacement Parts Description Part Power Cord 120v E220 Power Cord (Euro 230V) E130 Universal Auto-Start Remote Cable AE427 Remote Foot-Pedal (w/6ft cable) AA175 Remote Hand-Switch (w/6ft cable) AA375 Page 19 © Quatro Air Technologies| JULY 2019 | All rights reserved |... -
Page 20: Warranty
QUATRO Air Technologies warrants its equipment to be free from defect in material and workmanship under normal use and service for a period of one year from date of shipment . QUATRO’s obligation under this warranty shall be limited to replacing any parts, thereof, which shall be demonstrated to have been defective .
