BATTERY STATUS:
This function is used to check the charge status of the battery. Plug the fixture in and press the
MODE button until "BATT LEV XXX%" is displayed. "XXX" represents the currently remaining battery
life. If "BATT LEV ----" is displayed, it means that the unit is running on AC power. Please do not
fully deplete the battery charge, as this severly shortens the life of the battery.
NOTE: When the battery life is below 30%, the battery percentage number will flash. At 15% power
the fixture will shut off automatically.
NOTE: When using battery power, after 20 seconds of inactivity, the display will revert back to the
battery life display.
BATTERY RECHARGING:
To recharge the battery, plug one end of the supplied AC cord into the AC input on the side of the
unit, and the other end into a matching power supply. It takes approximately 5 hours to reach full
charge (with the power off). The display will STOP flashing when the unit reaches 100% charge.
NOTE: When unplugging the unit from charging and then applying power via battery, there will be a
small charge drop.
For a faster recharging, turn the Load setting to "Off" and turn the battery "On". See the "Battery
Load" sub-section in the Operating Instructions section of this manual.
Distance
R
D40
G
D40
B
D40
W
D40
A
D40
UV
D40
RGBWA+UV
D40

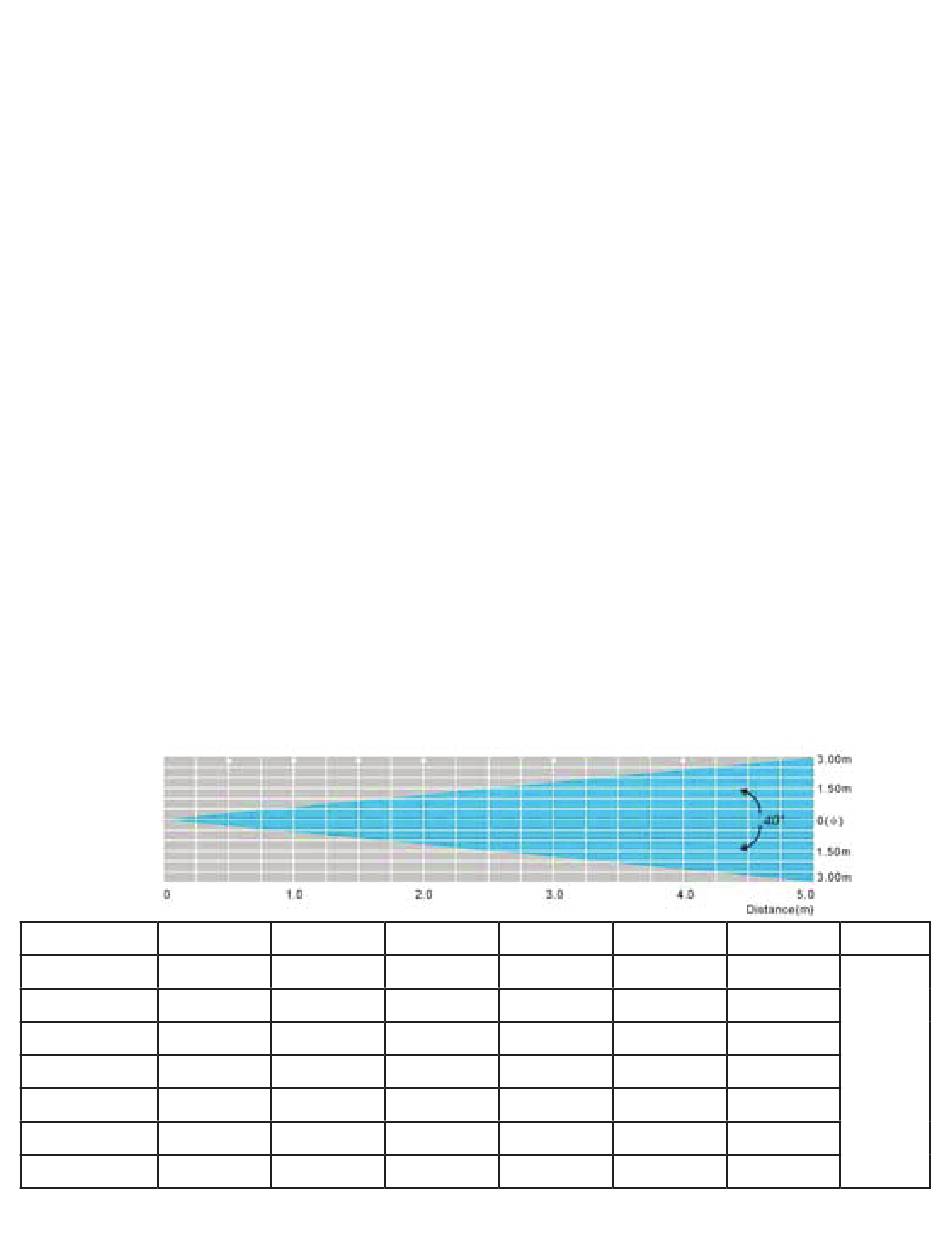

BATTERY STATUS AND CHARGING
PHOTOMETRIC CHART
0m 1.0m
917
951
815
1190
574
179
4240
2.0m 3.0m
237 97.8
257 108.5
217 85
302 113.8
140 50.6
47.7 38.3
966 449
24
4.0m 5.0m
48.9 32.1
55.7 37.5
53.1 31.7
67.6 42.3
28.9 17.6
10.9 6.5
241 154.5
lux
