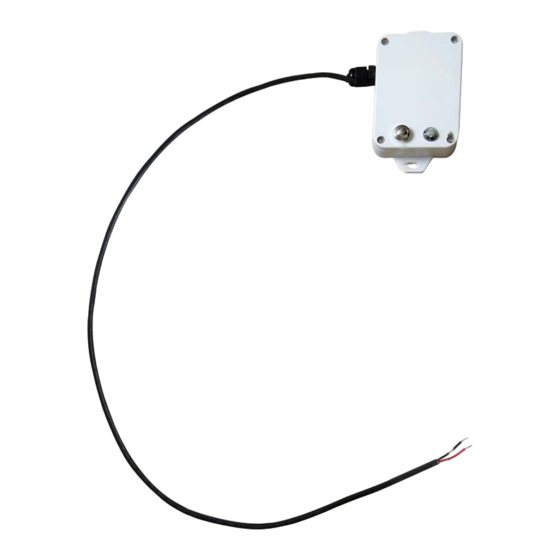

R718IB
Wireless 0-10V ADC Sampling Interface
Wireless 0-10V ADC Sampling Interface
R718IB
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be
maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission
of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718IB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R718IB

Summary of Contents for netvox R718IB

  • Page 1 Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction..................................2 2. Appearance ..................................3 3. Main Features ..................................3 4. Set up Instruction ................................4 5. Data Report ..................................5 5.1 Example of ReportDataCmd ............................5 5.2 Example of ConfigureCmd ............................6 5.3 Example for MinTime/MaxTime logic ........................7 6.

  • Page 3: Introduction

    1. Introduction R718IB is an ADC sampling interface detection device for Netvox Class A type devices based on LoRaWAN open protocol. The device is suitable for detecting 0V to 10V, and R718IB is compatible with LoRaWAN protocol. LoRa Wireless Technology: LoRa is a wireless communication technology famous for its long-distance transmission and low power consumption.

  • Page 4: Appearance

    ⚫ Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne ⚫ Low power consumption and long battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert batteries. (users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes 20 times. Power off Remove Batteries.

  • Page 6: Data Report

    1. The cycle of the device sending the data report is according to the default. 2. The interval between two reports must be the MinTime Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/page/index to resolve uplink data.

  • Page 7: Example Of Configurecmd

    Device Report Device NetvoxPayLoadData Type Type Battery ADCRawValue Reserved 0x01 R718IB 0x2A (1Byte, unit:0.1V) (2Bytes, unit:1mv) (5Bytes, fixed 0x00 Uplink: 012A012209C40000000000 Byte Value Attribute Result Resolution Version DeviceType ReportType Battery 3.4v 22(HEX)=34(DEC),34*0.1v=3.4v ADCRawValue 5th~6th 09C4 2500mv 09C4(HEX)=2500(DEC),2500*1mv=2500mv 0000000000 7th~11th Reserved 5.2 Example of ConfigureCmd...

  • Page 8: Example For Mintime/Maxtime Logic

    ADCRaw Reserved ReadConfig MinTime MaxTime BatteryChange 0x82 Value Change (2Bytes,Fixed ReportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) (2byteUnit:1mV 0x00) (1) Configure the device parameter MinTime = 1min, MaxTime = 1min, BatteryChange = 0.1v, ADCRawValue Change= 100mv Downlink: 012A003C003C0100640000 Device Return: 812A000000000000000000 (configuration success) 812A010000000000000000 (configuration failure) (2) Read the device parameter...
  • Page 9 Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V MaxTime Sleeping(MinTime) sleeping sleeping sleeping Wakes up and Wakes up and Wakes up and Wakes up and collects data collects data collects data collects data REPORT 3.6V 3.6V 3.6V...

  • Page 10: Information About Battery Passivation

    6. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 11: Important Maintenance Instruction

    7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
