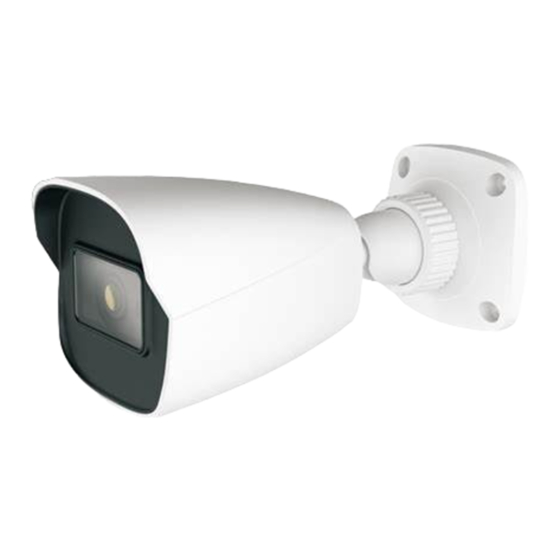

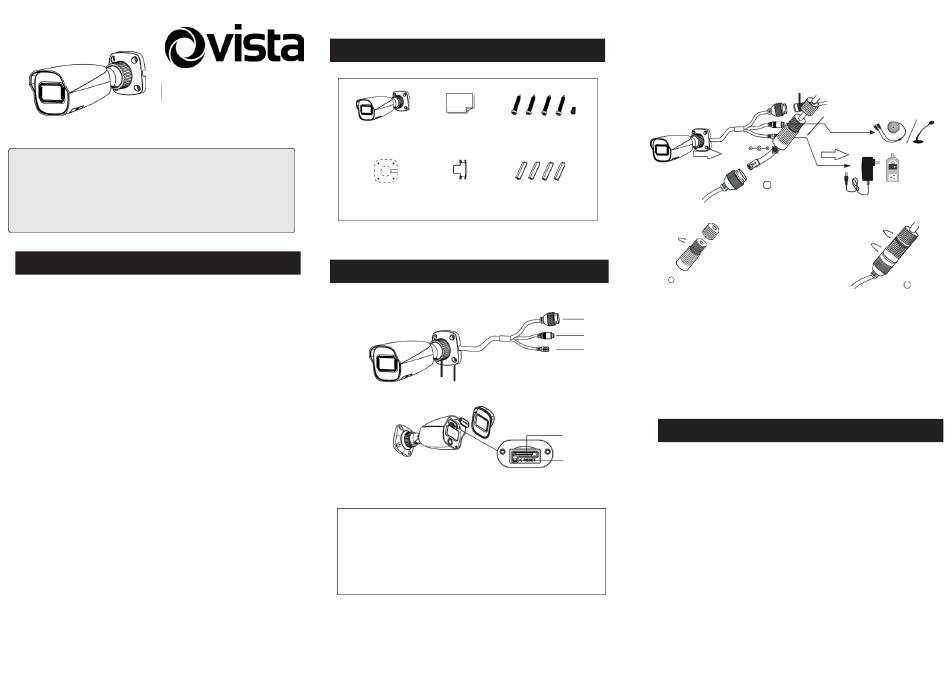

Vista VLI-4BL28IRQ Quick Start Manual

Quick Start Guide
■ Please read this g u i d e carefully before operating the unit
and keep it for further reference.
■ All examples and pictures used here are for reference only.
■ The contents of this g u i d e are subject to change without
notice.
1

Warning and Caution

■ If the product does not work correctly, please contact Technical
Support via the details over the page. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems caused
by unauthorized repair or maintenance.)
■ In the use of
the product, you must a d h e r e t o compliance with
electrical safety regulations of your nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not allow water or liquid intrusion into the camera.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at d i r e c t sunlight.
■ Do not place the camera in extremely hot, cold (operating
temperature is -30˚C~60˚C), dusty or damp locations and do not
expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

Package

VLI-4BL28IRQ
Camera
Drill
template
3

Overview

1 Fixed ring
2 Mounting base
3 Network connector*
4
Audio input
4 tapping
Quick start
screws
guide
1 machine
screw
Rubber Plastic plug ×
plug
4
3
4
5
1 2
6
7
5 Power connector*
6 Micro SD card slot
7 Reset (hold 5 secs)
* It is recommended y o u install the security cap for outdoor installation.
* If a PoE switch is used to power the camera, DC12V power supply is
not required.

Connecting Network Cable

DC12V
2
1
① Loosen the nut from the main adapter.
② Pass the network cable (before RJ45 connector crimping)
through both parts of the connector, then crimp .
③ Plug in the new RJ45 plug into the hermetic connector. Tighten the
nut and the main cover.
4

Installation

Please make sure that the wall or ceiling is strong enough to
withstand 3 times the weight of the camera. Please install the
camera into a dry environment.
① Drill the screw holes and the cable e n t r y hole i n the wall
according to the following drill template.
Security
cap
3
