Vista VK2-108VRDIR35V16e Quick Manual

Hide thumbs Also See for VK2-108VRDIR35V16e:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
VK2-1080XNPR10Z
Quick Guide
Please read this manual thoroughly before use and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VK2-108VRDIR35V16e and is the answer not in the manual?

Questions and answers

Related Manuals for Vista VK2-108VRDIR35V16e

Summary of Contents for Vista VK2-108VRDIR35V16e

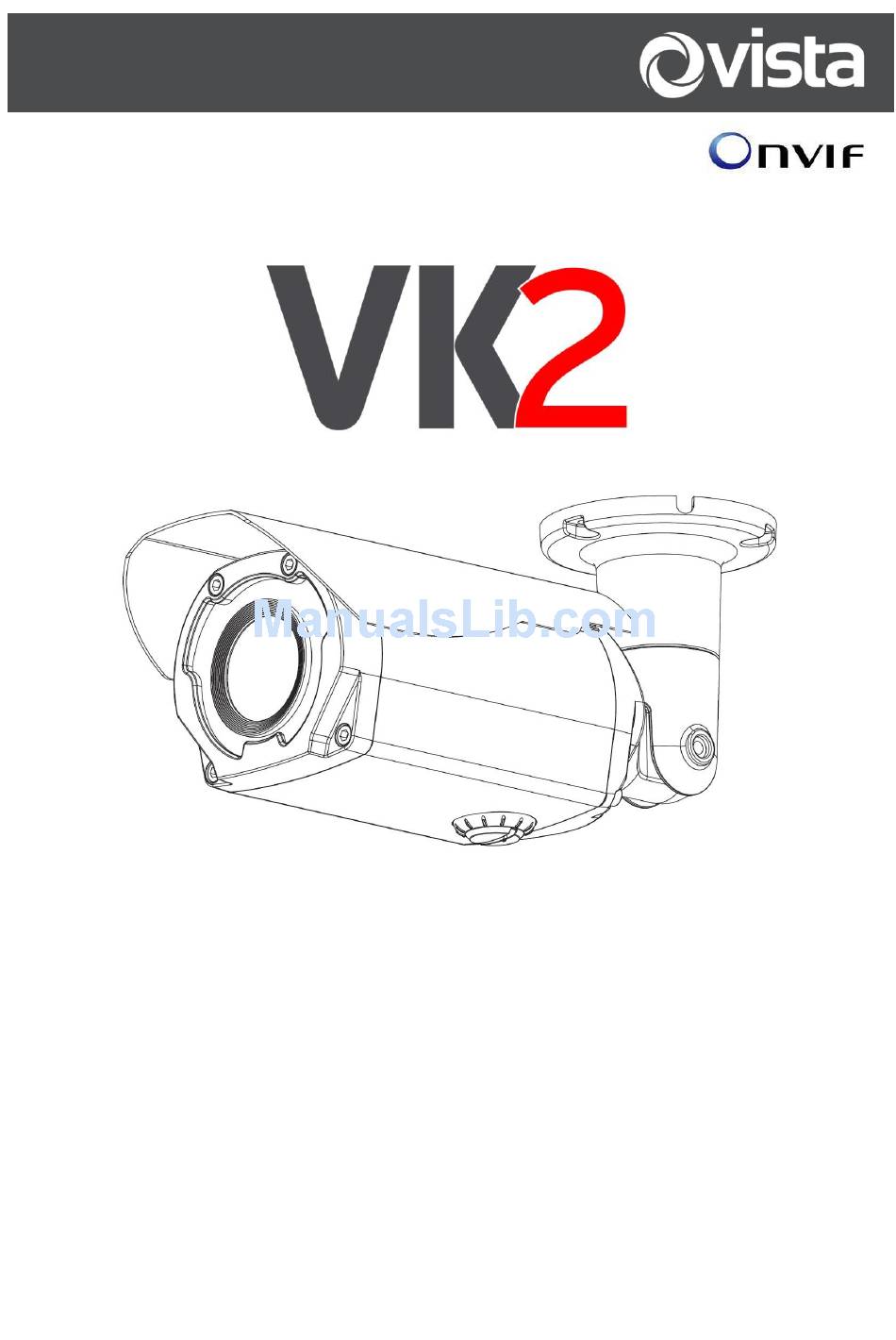

  • Page 1 VK2-1080XNPR10Z Quick Guide Please read this manual thoroughly before use and keep it handy for future reference.
  • Page 3 1 Introduction The network camera supports the network service for a sensor image with progressive scan, which can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the network camera at once or a single user can monitor various network cameras at the same time.

  • Page 4: Key Features

    1.2 Key Features • Brilliant video quality The network camera offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Wide Dynamic Range The network camera provides true WDR (Wide Dynamic Range) that improves video exposure quality in scenes with high contrast between bright and dark areas in the video, for example a shady area and a sunny area in the same scene.

  • Page 5: Installation

    2 Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer. 2.1 Overview ...
  • Page 6  Extension Cable Item Description Ethernet, RJ-45 port compatible with RJ-45 10/100Mbps PoE Modular Jack DC Jack Main Power, DC12V Input AI (alarm In) Alarm input and output, 3pin terminal G (GND) AO (Alarm Out) MIC (Audio In) Audio line input, 2pin terminal G (GND) SPK (Audio Out) Audio line output, 2pin terminal...
  • Page 7 2.2 Connections  Micro SD memory slot Remove the rear cap of the camera to insert the SD memory card.  Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.

  • Page 8: Network Connection & Ip Assignment

    2.2.1 Network Connection & IP Assignment The camera supports the operation through the network. When a camera is first connected to the network, it is necessary to allocate an IP address to the device with the SmartManager utility on the CD. (Default IP 192.168.30.220) 1) Connect the network camera/device to the network and power up.

  • Page 9: Operation

    3 Operation The network camera can be used with Windows operating system and browsers. The recommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows. NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX controls.

  • Page 10: Access From The Internet

    3.2 Access from the internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 11: Live View Page

    3.4 Live View Page The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960), 1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most suitable one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring purposes.
  • Page 12 2) Control toolbar The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the play and stop. The Play button connects to the network camera or starts playing a video stream. The Pause button pauses the video stream being played.
  • Page 13 3.5 Playback The Playback window contains a list of recordings made to the memory card. It shows each recording’s start time, length, the event type used to start the recording, calendar and time slice bar indicates if the recording is existed or not. The description of playback window follows.
  • Page 14 3) Time Chart Display an hour-based search screen for the chosen date. If there is recording data, a blue section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on the hour will be displayed. 4) Speaker Control Bar Use this scale to control the volume of the speakers.

  • Page 15: Network Camera Setup

    3.6 Network Camera Setup This section describes how to configure the network camera. Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome Configuration, and System.

  • Page 16: Resetting To The Factory Default Settings

    Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of Users Manual) or use the Reset button on the network camera inside the bottom cap. •...

  • Page 17: System Requirement For Web Browser

    System Requirement for Web Browser • Operating System: Microsoft Windows OS Series • CPU: Intel Core 2 Duo 2GHz or higher, 1GB RAM or more, 10GB free disk or higher • VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher) General Performance Considerations When setting up your system, it is important to consider how various settings and situations will affect performance.
  • Page 18 A Appendix A.1 Product Specification 10X FULL-HD BULLET NETWORK CAMERA Model NETWORK CAMERA IMAGE Lens 10x / 5.1mm ~ 51.0mm Angle of View 54.0° (H) ~ 4.9° (H) Type 1/2.8” SONY STARVIS CMOS sensor Image Sensor Pixels 1945 (H) x 1097 (V) Color : 0.35 Lux @ 50IRE Min.
  • Page 19 EXTERNAL Video Composite Output Yes (3.5pi Stereo Jack) IN/OUT Audio 1 Input, 1 Output (Terminal Block) Alarm 1 Input, 1 Output (Terminal Block) Ethernet RJ-45 (10/100Base-T) u-SD Card SDHC (Max. 32GB) RS485 OSD-Remote control RESET Button Tact Switch Operating Humidity 0 ~ 90% RH (Non-condensing) Operating Temperature -30℃...
  • Page 20 NORBAIN SD 210 Wharfedale Road IQ Winnersh Wokingham Berkshire. RG41 5TP (Subject to change without notice) Version 1.0...
