HARDWARE LIST
CODE
NAME
a
WOOD DOWEL
b
CAM BOLT
c
CAM LOCK
WOOD SCREW
d
(1/2"L)
e
KNOB BOLT
FRONT PANEL
f
KNOB
g
GLUE
Please do not return to the store
. Broken or Missing Parts?
. Need help with Assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com

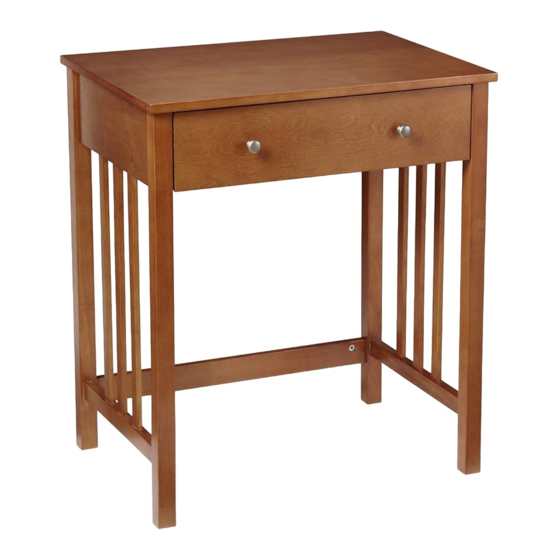

MISSION DESK
STYLE NO. 09 0102 MISSION OAK
09 0102W MISSION WHITE
FIGURE
Q'TY
12PCS
10PCS
10PCS
12PCS
2PCS
2PCS
1PC
PARTS LIST
CODE
NAME
LEFT SIDE
A
PANEL
RIGHT SIDE
B
PANEL
TOP SUPPORT
C
RAIL
BOTTOM
D
SUPPORT RAIL
E
BACK PANEL
F
DESK TOP
KEYBOARD
G
TRAY
FLIP DOWN
H
FRONT PANEL
FIGURE
Q'TY
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
Advertisement
Related Manuals for convenience concepts MISSION 09010
Summary of Contents for convenience concepts MISSION 09010
- Page 1 MISSION DESK STYLE NO. 09 0102 MISSION OAK 09 0102W MISSION WHITE HARDWARE LIST PARTS LIST CODE NAME FIGURE Q'TY CODE NAME FIGURE Q'TY LEFT SIDE WOOD DOWEL 12PCS PANEL RIGHT SIDE CAM BOLT 10PCS PANEL TOP SUPPORT CAM LOCK 10PCS RAIL WOOD SCREW...
-
Page 2: Hardware Needed
STEP 1 HARDWARE NEEDED Insert Cam Bolts ( b ) into Side Panels ( A ) & ( B ). 6 PCS STEP 2 HARDWARE NEEDED 8 PCS Install Wood Dowels ( a ) as shown below. 6 PCS Connect Flip Down Front Panel ( H ) to Side Panel ( B ). 1 PC Gently tighten cam locks (C). - Page 3 STEP 3 HARDWARE NEEDED Insert Cam Bolts ( b ) into Desk Top ( F ). 4 PCS STEP 4 HARDWARE NEEDED Insert Wood Dowels into assembly (a) as shown below. 4 PCS Place Desk Top ( F ) onto unit assembly and gently tighten cam locks ( c ). 4 PCS 1 PC ****...
- Page 4 STEP 5 HARDWARE NEEDED Install Back Panel ( E ) to Back of Desk with Wood Screws ( d ). 12 PCS STEP 6 HARDWARE NEEDED Install Front Panel Knobs ( f ) to Flip Down Front Panel ( H ) using the KnobBolts ( e ). 2 PCS 2 PCS...
- Page 5 STEP 7 Carefully slide Key Board Tray ( G ) into Desk and Enjoy!
