HARDWARE LIST
CODE
NAME
CAM LOCKS
A
(Ø
15x mm)
9
CAM BOLTS
B
(Ø6.5x35mm)
RAIL SCREW
C
(Φ1/4"*51mm)
SPRING WASHER
D
( Φ1/4")
FLAT WASHER
E
(Φ1/4"*16mm)
ALLEN WRENCH
F
HANDLE SCREW
G
(22mm)
HANDLE
H
Please do not return to the store
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com

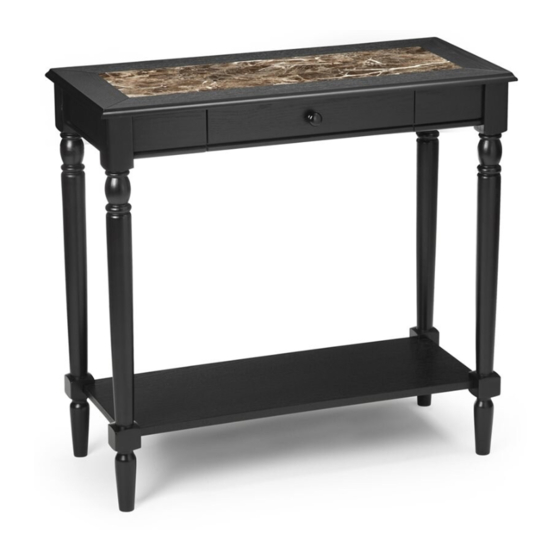

French Country Foyer Table
Item No. M6042189
FIGURE
Q'TY
4PCS
4PCS
8PCS
8PCS
8PCS
1PC
1PCS
1PCS
M6042189BL
PARTS LIST
CODE
NAME
TOP PANEL
1
BOTTOM PANEL
2
LEG
3
FIGURE
Q'TY
1PC
1PC
4PCS
Advertisement
Table of Contents
Related Manuals for convenience concepts French Country Foyer Table M6042189
Summary of Contents for convenience concepts French Country Foyer Table M6042189
- Page 1 French Country Foyer Table Item No. M6042189 M6042189BL HARDWARE LIST PARTS LIST CODE NAME FIGURE Q'TY CODE NAME FIGURE Q'TY CAM LOCKS TOP PANEL 4PCS (Ø 15x mm) CAM BOLTS BOTTOM PANEL 4PCS (Ø6.5x35mm) RAIL SCREW 8PCS 4PCS (Φ1/4"*51mm) SPRING WASHER 8PCS ( Φ1/4") FLAT WASHER...
- Page 2 STEP 1 B × 4pcs 1.) Screw Cambolts ( B ) into Legs ( 3 ). STEP 2 A × 4pcs 1.) Place Cam Locks ( A ) into Bottom Panel ( 2 ). **Arrow On Cam Lock Faces Outward Opening **** 2.) Insert Legs into Bottom Panel ( 2 ) and Lock into position by turning Cam Locks ( A ) Clockwise.
- Page 3 STEP 4 C × 8pcs D × 8pcs E × 8pcs F × 1pc 1.) Assemble Rails Screws ( C ) with Spring Washer ( D ) and Flat Washer ( E ) in order as shown. 2.) Using Allen Wrench ( F ), fasten Rail Screw Assembly to secure Top Panel ( 1 ) to Leg Assembly.
