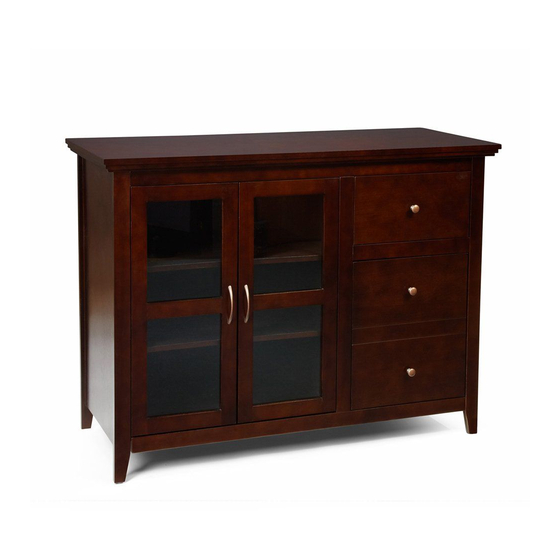

SIERRA HIGH BOY TV STAND
50" Maximum Flat Panel Television
100 lb. Maximum Capacity
Please do not return to
. Broken or Missing Parts?
. Need help with Assembly?
If you have any questions just call 1-800-468-6447
parts@convenience-concepts.com
Item No. 8043387
8043387 BL
8043387 CH
CC0047
Advertisement
Related Manuals for convenience concepts 8043387
Summary of Contents for convenience concepts 8043387
- Page 1 SIERRA HIGH BOY TV STAND Item No. 8043387 8043387 BL 8043387 CH 50" Maximum Flat Panel Television 100 lb. Maximum Capacity Please do not return to . Broken or Missing Parts? . Need help with Assembly? If you have any questions just call 1-800-468-6447 parts@convenience-concepts.com...
-
Page 2: Hardware List
HARDWARE LIST PARTS LIST CODE NAME FIGURE Q'TY CODE NAME FIGURE Q'TY THIN WOOD DOWEL FRONT PANEL OF 8PCS (Φ6X30mmL) DRAWDR THICK WOOD BACK PANEL OF DOWEL 22PCS DRAWER (Φ8X30mmL) CAM LOCK LEFT SIDE PANEL 16PCS (Φ15*9mmL) OF DRAWER CAM BOLT RIGHT SIDE PANEL 16PCS (Φ6.5*35mmL) - Page 3 STEP 1 HARDWARE NEEDED 1.) Insert Wood Dowels (A) into panels (1)&(2) A x 4 and attach them to panel (4) using Wood Screws (E) E x 4 STEP 2 1.) Slide panel (5) into drawer assembly. STEP 3 HARDWARE NEEDED A x 4 E x 4...
- Page 4 STEP 5 HARDWARE NEEDED F x 4 H x 2 1.)Attach Door Hinges (H) to Wood Door Panel (7) using Medium Screws (F) STEP 6 HARDWARE NEEDED B x 2 C x 2 D x 2 1.)Attach Left Side Panel (9) to Bottom Panel (14) using Thick Wood Dowels (B), Cambolts (D) and Camlocks ( C ).
- Page 5 STEP 9 HARDWARE NEEDED B x 8 C x 6 D x 6 1.) Attach Top Panel ( 8 ) to assembly using Wood Dowels ( B ), Cambolts ( D ) and Camlocks ( C ) . STEP 10 HARDWARE NEEDED O x 2...
- Page 6 STEP 13 HARDWARE NEEDED F x 4 I x 2 J x 2 1.) Attach Wood Door ( 7 ) to assembly by screwing Door Hinges ( H ) to Right Side Panel ( 11 ) with Medium Screws ( F ). 2.) Attach Knobs ( I ) to Wood Door ( 7 ) using Knob Screw ( J ).
