CONVENIENCE

Assembly instructions

We have designed our furniture with you,the customer in mind.Our clear,easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　Broken or missing Hardware?

　　Neen help with Assembly?

STOP

　　If you have any questions just call 1-800-468-6447 or email us at

　　parts@convenience-concepts.com

CONCEPTS

203096

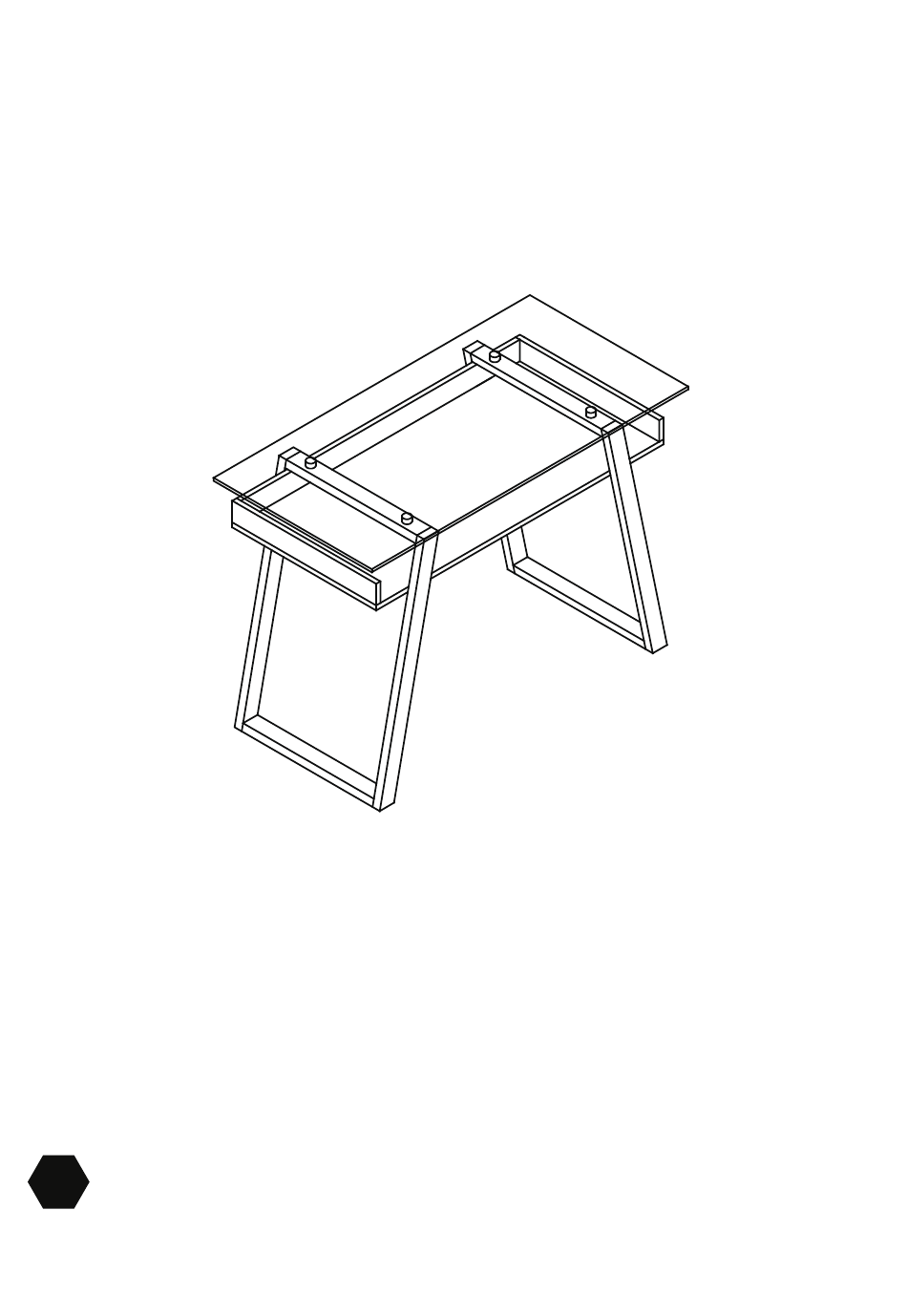

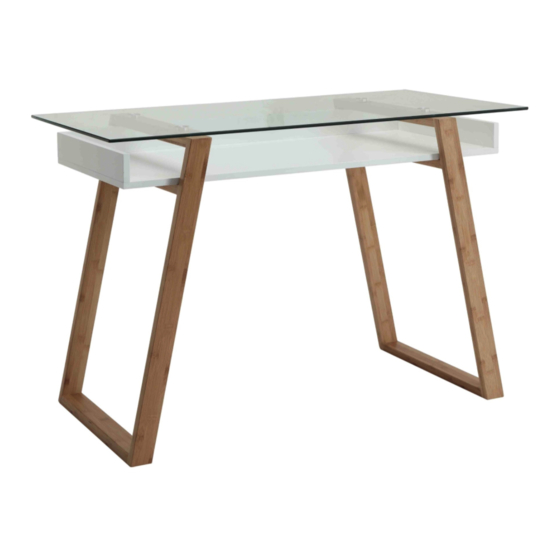

Oslo Sundance Desk

Need help?

Do you have a question about the Oslo Sundance Desk and is the answer not in the manual?

Page 1 CONVENIENCE CONCEPTS 203096 Oslo Sundance Desk Assembly instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 H x4 A x4 B x4 C x4 D x4 E x9 F x8 G x1 Assembling the unit with cams and wood dowels. Gently screw cam Insert cam lock with dowel into the arrow pointing down. threaded anchor. Screw the cam firmly into locked position.
Page 3 Note: Barrel nut (D)threads must face holes. Step 1 Attach legs ② and ③ to brace ④ using barrel nuts and allen bolts. Step 2 Attach panel ⑥ and 7 to panel ⑤ using cam lock hardware. Step 3 Attach panel ⑧ to panel assembly with screws(E).
Page 4 Step 4 1. Place legs as shown. 2. Fasten with screws (F). Step 5 1. Carefully place top panel ① onto assembly and fasten with screws(F). 2. Enjoy!
