Convenience Concepts
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
Broken or missing parts?
Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com

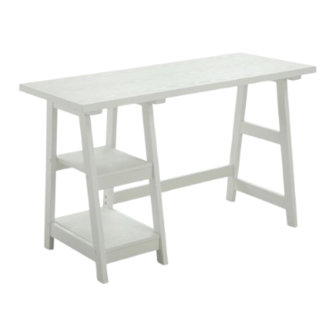

Trestle Desk
090107
Advertisement
Related Manuals for convenience concepts Trestle 090107
Summary of Contents for convenience concepts Trestle 090107
- Page 1 Convenience Concepts Trestle Desk 090107 ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish .
- Page 2 PAGE 2 OF 5 Hole sticker（12pcs） Cam dowel（4pcs） Allen wrench（1pc） Part List Desktop (1pc) Wood dowel（8pcs） Middle Shelf Bottom Shelf Shelf Supports Long Screw & Inserted Nut (1pc) (1pc) (4pcs) （12pcs） Support Rail (1pc) Left Middle Right Screw （6pcs） Frame Frame Frame (1pc)
- Page 3 PAGE 3 OF 5 step1 1.Attach Wooden dowels(B) and Cambolts(A)to Middle Shelf(2). 2.Insert Camlocks(A) into holes in Shelf Supports(4).Camlock arrow must face bolt hole. 3.Connect Shelf Supports（4）to Middle Shelf(2). Gently tighten camlocks. *Refer to page 2 for dowel assembly step2 1.Attach Wooden dowels(B) and Cambolts(A)to Bottom Shelf(3).
- Page 4 PAGE 4 OF 5 step3 1.Insert Nuts into Middle Shelf(2) and Bottom Shelf(3) and make sure Nut hole faces to bolt hole. （as seen in Diagram #1） 2.Carefully connect Left Frame(6) and Middle Frame(7) to Shelves (2)and(3).(Long Screw(C) goes through the Frame.Line up holes and Diagram #1 insert screws.) Tighten Long Screws(C).
- Page 5 PAGE 5 OF 5 step5 1.Insert Nuts into Support Rail(5)and make sure Nut hole faces to bolt hole. 2.Carefully connect Support Rail(5)to Middle Frame(7) and Right Frame(8).(Long Screw(C) goes through the Frame.Line up holes and insert screws.) Tighten Long Screws(C). step6 1.Carefully turn the desk。...
