LAUNCH

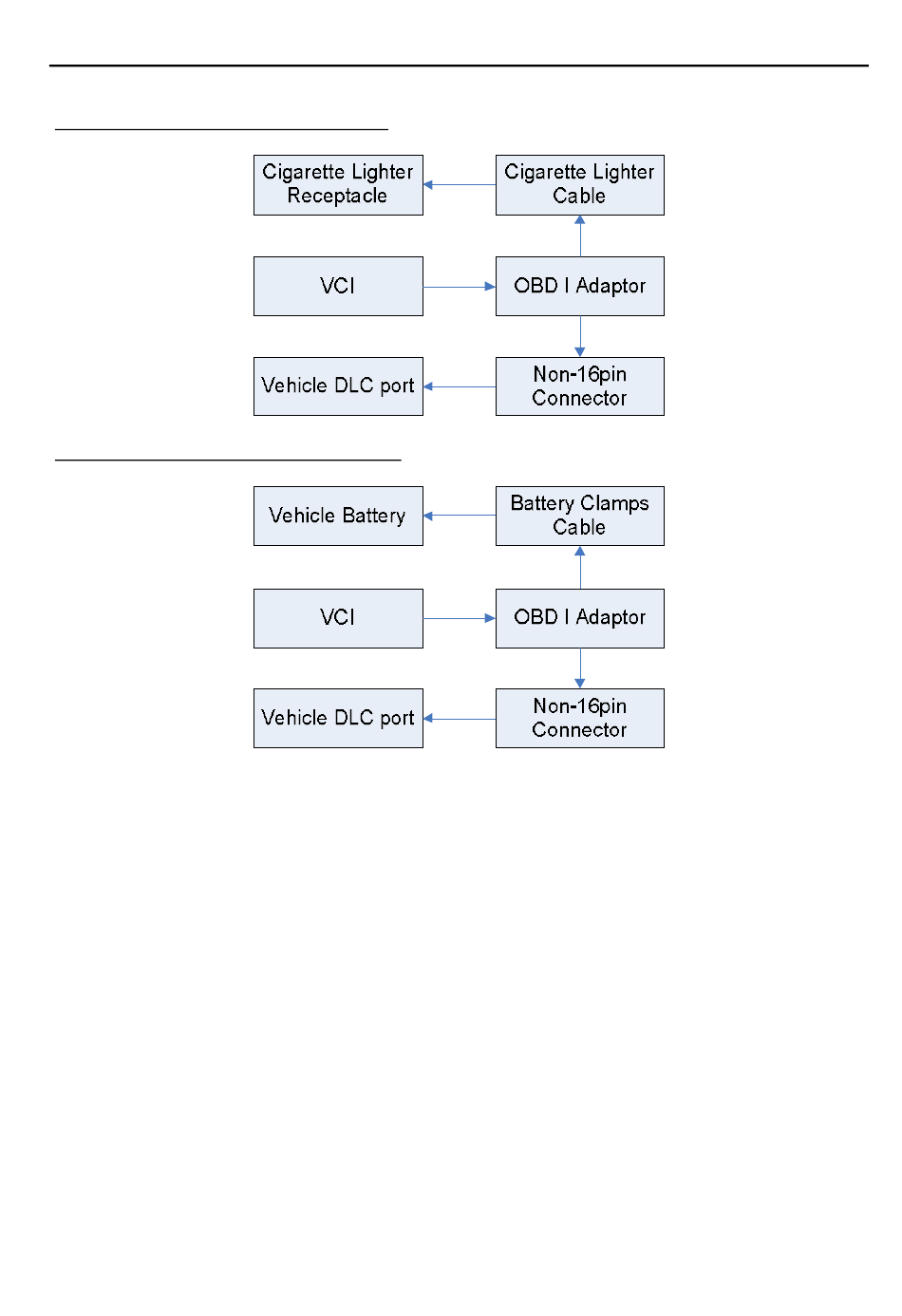

A. Battery Clamps Cable (optional):
B. Cigarette Lighter Cable (optional):
4.2 Vehicle Connection (Only for Commercial Vehicle
Configuration)

4.2.1 OBD II vehicle Connection

Use the included OBD II extension cable to connect the VCI to the vehicle's DLC
port.
X-431 PRO5 User Manual
20
