LAUNCH

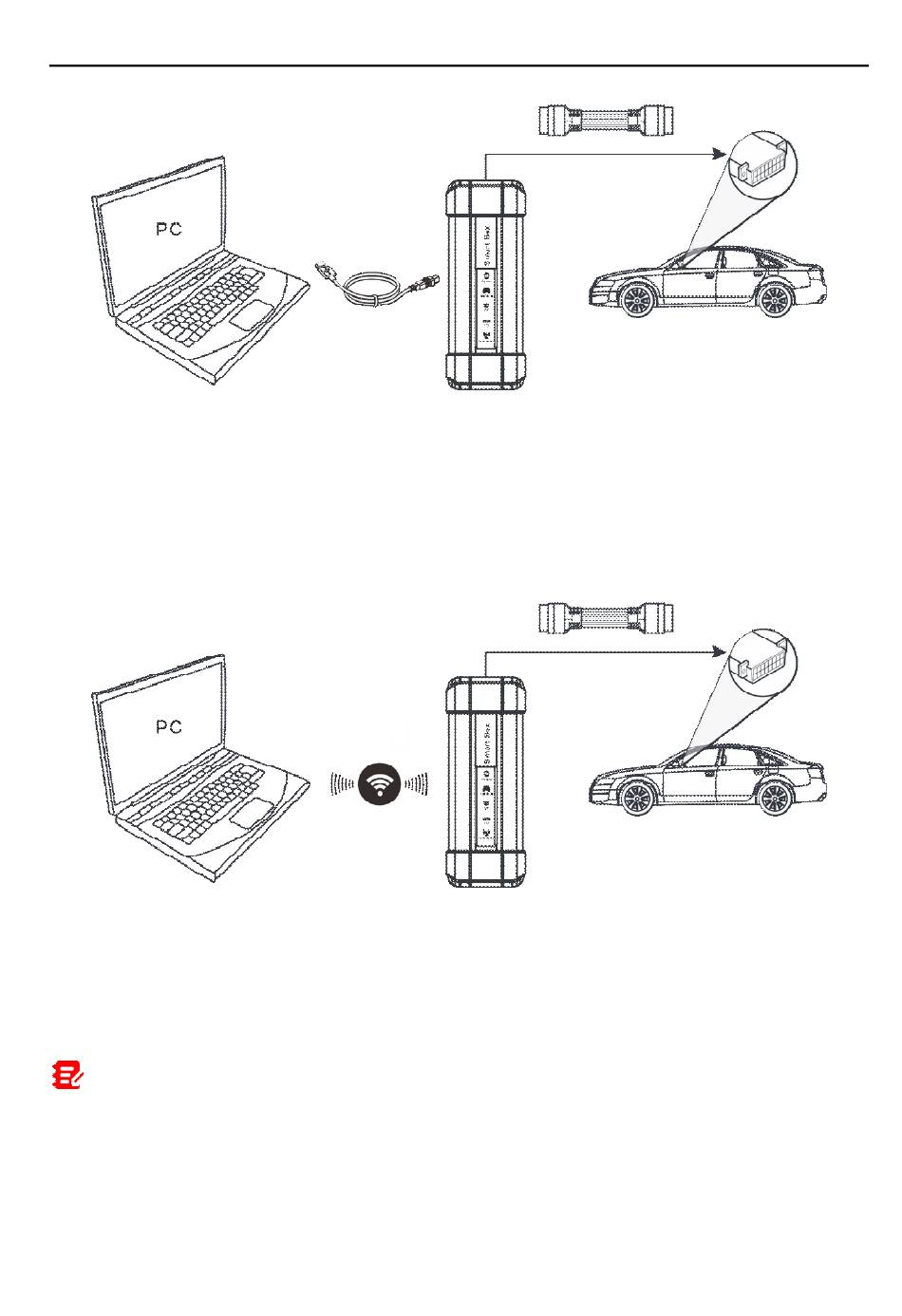

1. Connect B-shaped plug of the USB cable to the B-shaped USB port of the
VCI device, and the other end to the USB port of the PC.
2. Use the OBD II extension cable to connect the VCI device to the vehicle's
OBD II diagnostic socket.
Method 2: Via Wi-Fi Communication
1. Set the Wi-Fi on the PC(*the PC must have dual Wi-Fi modules or an external
network adaptor):
1). Right-click the wireless connection icon at the lower right corner of the PC.
2). In the searched wireless network list, click the network ID of the VCI device.
Note: This name can be found on the body of each VCI device, and the name is
usually 12 digits, starting with 98.
3). Enter the network key (the default password is 12345678), and then
repeatedly enter the network key to confirm, click Next after the input is
complete. The screen will display "Connected" when successfully connected.
2. Use the OBD II extension cable to connect the VCI device to the vehicle's
