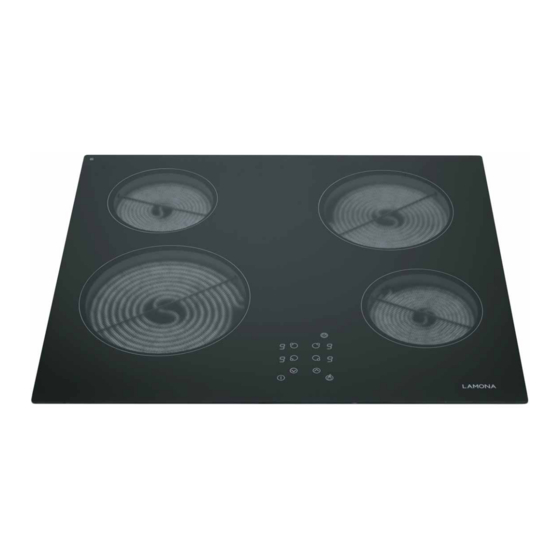

- Page 1 Ceramic LAM1741 Touch Control Hob User & Installation Guide...
- Page 2 LAMONA Appliances Dear Customer, Congratulations on your choice of hob which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. • • Please read this user manual before installing and using the hob.
-
Page 3: Table Of Contents
User manual LAM1741 Index 01 - Before Using the hob 02 - Safety General Fire safety advice Fire Safety If a pan catches fire Deep fat frying If you have an Electrical Fire 03 - Using your hob Touch controls Controls layout Initial setup... -
Page 4: Before Using The Hob
LAMONA Appliances 01 - Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and films from the hob surface. • It is recommended that you clean and wash the hob surface before using for the first time. • Apply a thin coat of ceramic hob cleaner to the hob to help maintain and protect it. 02 - Safety • WARNING: Keep electrical leads from trailing This appliance is for domestic cooking over or going near the hob. -
Page 5: Fire Safety Advice
User manual LAM1741 If a pan catches fire: • WARNING: The appliance must never be disconnected from the mains supply during use as this will seriously affect the safety and • Do not move it as it’s likely to be extremely hot. -
Page 6: Using Your Hob
LAMONA Appliances 03 - Using the hob - electric ceramic Touch Controls Initial set up The touch controls for your hob have been designed Before switching on the power supply to the to provide you with finger tip control of your hob, appliance, switch off any bright lights (such as providing accurate and repeatable power settings... -
Page 7: Functions
User manual LAM1741 Functions Switching a zone off Lock • To turn off a zone, touch and hold the desired zone symbol until the display flashes. Adjust the “-” symbol down to “0”. After 10 secs the zone will switch off, the display will stop A Red LED indicates when the key lock is active, to flashing and a beep is heard. -
Page 8: Timed Cooking
LAMONA Appliances Timed cooking Residual heat indicator Refered After a zone is switched off it will display “H” whilst Timer zone it remains hot. LED’s lock: • When the system is in child lock the controls All 4 cooking zones can be operated under the are deactivated. -
Page 9: Cleaning And Maintenance
User manual LAM1741 04 - Cleaning & maintenance Ceramic glass hobs • It is recommended that you clean and wash • The edge of the ceramic glass will always the hob surface before using for the first time. appear to be a different colour than the top Apply a thin coat of ceramic hob cleaner to the surface due to the ground safety edge. -
Page 10: Trouble Shooting
LAMONA Appliances 05 - Trouble shooting If you encounter a problem, it is often something minor, please read some of the suggested tips below. The hob is not working Check the fuse/circuit breakers to see if you are experiencing a power... -
Page 11: Installation
User manual LAM1741 06 - Installation General information Positioning Installation should only be carried out by a qualified Choosing your installation installer or engineer. • Make sure that the air inlets through the ventilator grids underneath the hob are never Please pay attention to the following points; blocked. - Page 12 LAMONA Appliances • There must be a minimum clearance of 50mm Protecting the cut-out between the edges of the hob and any side The types of chipboard used for work surfaces swell walls; this clearance must be maintained up to relatively quickly in contact with humidity.
- Page 13 User manual LAM1741 Underside of hob DO NOT fit silicone sealant under the glass hob Typical Installation positions instead of foam seal. Rear wall 53mm min CONVENTIONAL INSTALLATION Worktop cutout sizes Seal Worktop 560mm (60cm hobs) 660mm (70cm hobs) 860mm (90cm hobs) Typical Installation positions 1. Self adhesive seal...
-
Page 14: Connect To The Electricity Supply
LAMONA Appliances Connect to the electricity Supply This appliance must be earthed. Only connect to the electrical mains terminal with the power switched off. The electrical mains terminal is live. Follow the terminal block connection schematic. Loose and inappropriate connections can make the terminal overheat. -
Page 15: Technical Data
User manual LAM1741 Technical data Technical Data Electrical Supply 220~240V 50Hz Total Power Rating @ 220 - 240V ~ 50Hz (kW) Hob Details Normal Power Cook Zone Rating kW LH Front LH Rear RH Rear RH Front Hob Dimensions (W X D X H) mm 590 x 520 Cut Out Required (W x D) mm 560 x 490 Cable Type HORR-F5 4.0mm ², 3 core or equivalent... -
Page 16: Your Guarantee
LAMONA Appliances 07 - Your guarantee Product Guarantee Details (UK only) Your appliance has the benefit of a comprehensive manufacturer’s guarantee which covers the cost of breakdown repairs. (Details of which are shown on your Proof of Purchase Document). • Any claim during the period of the guarantee (MUST BE ACCOMPANIED BY THE PROOF OF PURCHASE) • The product must be correctly installed and operated in accordance with the manufacturer’s instructions and used for normal domestic purposes. - Page 17 User manual LAM1741 _ 17...
- Page 18 LAMONA Appliances Notes...
- Page 19 User manual LAM1741 Notes _ 19...
- Page 20 ISSUE v3-130712 If supplied, please stick your self adhesive product rating plate here, or make a note of the product serial number below in the box below for future reference. Serial Number : ...................
