Summary of Contents for Lamona LAM1704

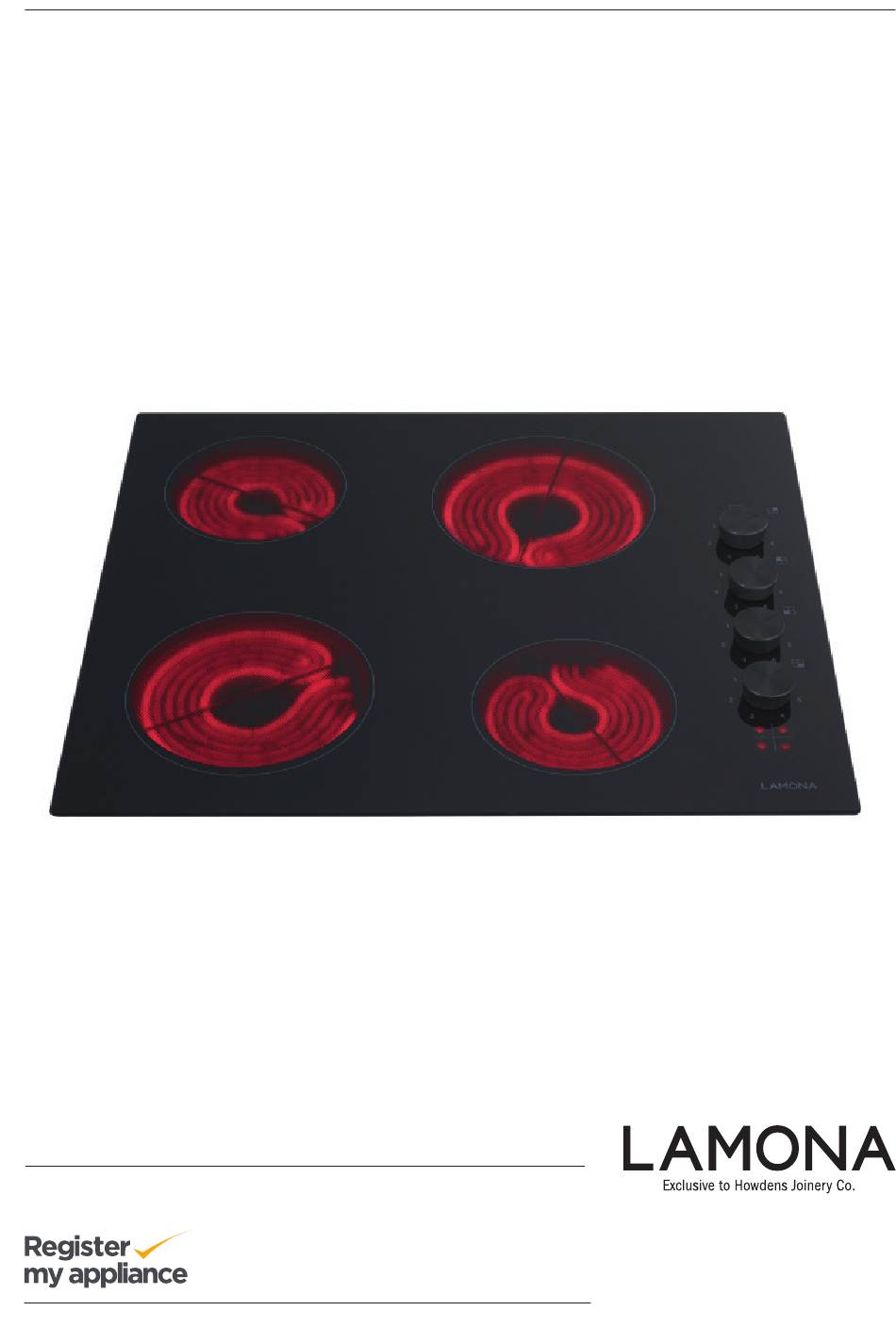

- Page 1 Ceramic Side Control Hob LAM1704 Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM1704 Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions.
-
Page 4: Table Of Contents
LAMONA Appliances Index 01 - Before Using the hob 02 - Safety General 05-06 Fire safety advice If a pan catches fi re Deep fat frying If you have an Electrical Fire 03 - Using your hob Controls Heat Settings... -
Page 5: Before Using The Hob
User manual LAM1704 01 - Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and fi lms from the hob surface. • It is recommended that you clean and wash the hob surface before using for the fi rst time (see p10). - Page 6 LAMONA Appliances • Always match the size of hob. They could become hot if pan to the heat zone – do not they are near a cooking area use large pans on small zones which is in use. or vice versa.
-
Page 7: Fire Safety Advice
User manual LAM1704 Fire safety advice Deep-fat frying presents more dangers in your kitchen • Most kitchen fires occur when people are distracted or • If you have put the fire out, leave things unattended, so leave the pan to cool com- remember: pletely. -
Page 8: Using Your Hob
LAMONA Appliances 03 - Using the hob - Side Control Ceramic Hob Do not use the ceramic hob if the glass surface is cracked, as electrical parts are directly beneath. Switch off the appliance at the supply to prevent electric shock and contact your supplier. -
Page 9: Hob Layout
User manual LAM1704 Hob layout Power on Indicator Rear Left Zone (140mm 1200w) Suitable for 6” or 15cm diameter saucepan Rear right Control Knob Rear Right Zone (180mm 1700w) Suitable for 7” or 18cm diameter saucepan Rear left Control Knob... -
Page 10: Cleaning And Maintenance
LAMONA Appliances 04 - Cleaning & maintenance How to clean your hob • The ceramic hob top can be cleaned using a • Regular cleaning will prevent any salts or clean, damp cloth or kitchen paper. Do not minerals from accumulating on your hob and use a used dishcloth or sponge as they can discolouring the glass. -
Page 11: Clearances And Dimensions Requirements
User manual LAM1704 Clearances and dimensions requirements Minimum distance between carcasses must be equal to width of hob 400mm min 55mm min 50mm min between hob and rear wall 560mm (+2) (>60mm to cut out aperture) 490mm (+2) 50mm Min... - Page 12 LAMONA Appliances Installation Installation above an oven If the appliance is installed with an oven underneath, please leave at least 15mm of Before installation ventilation, unless otherwise stated in your oven installation guidelines. The product should only be installed by suitably qualifi ed persons.
-
Page 13: Connect To The Electricity Supply
User manual LAM1704 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your hob is intended for permanent installation. Your appliance must be connected to fi xed wiring via the use of a double pole switched outlet with at least 3mm contact separation. -
Page 14: Technical Data
LAMONA Appliances The appliance may be connected to the mains supply only by a competent person. The mains lead must not be clamped, bent, trapped, or come into contact with hot parts of the appliance. If the mains lead is damaged, it must be replaced by a qualifi ed person (mains cable must not be longer than 2m for safety reasons). -
Page 15: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 16 LAMONA Appliances...
- Page 17 User manual LAM1704 _ 17...
- Page 18 LAMONA Appliances...
- Page 20 Product serial number (Place sticker here) Issue v12 010620 185.9291.25/R.AB/01.06.2020...
