Summary of Contents for Lamona LAM1750

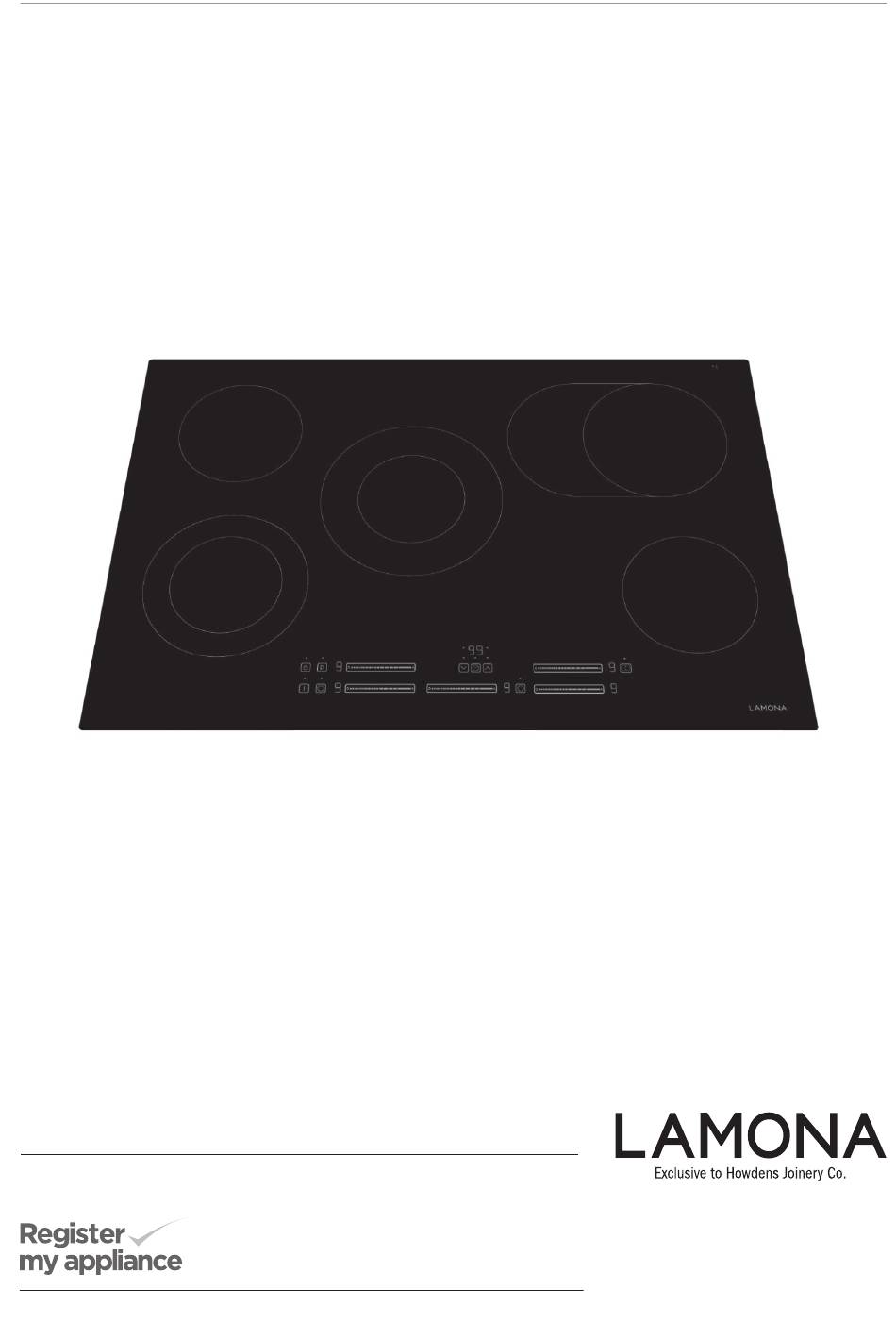

- Page 1 LAM1750 User Manual www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 Contents y l i l l a c i f Subject to change without notice.
-
Page 4: Safety Information
Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. -
Page 5: Safety Instructions
WARNING: Unattended cooking on a hob with fat or oil can • be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the • appliance and then cover flame e.g. with a lid or a fire blanket. -
Page 6: Electrical Connection
• Keep the minimum distance from other appliances and units. • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. • Seal the cut surfaces with a sealant to prevent moisture to cause swelling. •... - Page 7 • Remove all the packaging, labelling and protective film (if applicable) before first use. • Use this appliance in a household environment. • Do not change the specification of this appliance. • Make sure that the ventilation openings are not blocked. •...
-
Page 8: Product Description
Disposal WARNING! Risk of injury or suffocation. • Contact your municipal authority for information on how to discard the appliance correctly. • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. Product description Cooking surface layout Cooking zone... -
Page 9: Heat Setting Displays
Sen- Function Comment field Lock / Child Safety Device To lock / unlock the control panel. Pause To activate and deactivate the function. To activate and deactivate the outer ring. Heat setting display To show the heat setting. Timer indicators of cooking To show for which zone you set the time. -
Page 10: Daily Use
Daily use WARNING! Refer to Safety chapters. Activating and deactivating Touch for 1 second to activate or deactivate the hob. Automatic Switch Off The function deactivates the hob automatically if: • all cooking zones are deactivated, • you do not set the heat setting after you activate the hob, •... -
Page 11: Automatic Heat Up
Automatic Heat Up Activate this function to get a desired heat setting in a shorter time. When it is on, the zone operates on the highest setting in the beginning and then continues to cook at the desired heating setting. To activate the function the cooking zone must be cold. -
Page 12: Child Safety Device
Pause This function sets all cooking zones that operate to the lowest heat setting. When the function operates, all other symbols on the control panels are locked. The function does not stop the timer functions. Touch to activate the function. comes on. -
Page 13: Hints And Tips
Hints and tips WARNING! Refer to Safety chapters. Cookware The bottom of the cookware must be as thick and flat as possible. Ensure pan bases are clean and dry before placing on the hob surface. Cookware made of enamelled steel and with aluminium or copper bottoms can cause a colour change on the glass-ceramic surface. -
Page 14: Care And Cleaning
Heat setting Use to: Time Hints (min) 3 - 4 Steam vegetables, fish, meat. 20 - 45 Add a couple of tablespoons of liquid. 4 - 5 Steam potatoes. 20 - 60 Use max. ¼ l of water for 750 g of potatoes. - Page 15 What to do if... Problem Possible cause Remedy You cannot activate or oper- The hob is not connected to Check if the hob is correctly ate the hob. an electrical supply or it is connected to the electrical connected incorrectly. supply.
-
Page 16: Installation
Problem Possible cause Remedy Automatic Switch Off oper- Deactivate the hob and acti- comes on. ates. vate it again. Child Safety Device or Lock Refer to "Daily use". comes on. operates. There is an error in the hob. Deactivate the hob and acti- and a number come on. -
Page 17: Technical Data
750 min. 55mm min. 12 mm min. 28 mm min. 20 mm Technical data Rating plate Model LAM1750 PNC 949 594 461 00 Typ 60 HBD R3 AO 220 - 240 V / 400 V 2N 50 - 60 Hz... -
Page 18: Energy Efficiency
170 / 265 For optimal cooking results use cookware no larger than the diameter of the cooking zone. Energy efficiency Product information according to EU 66/2014 Model identification LAM1750 Type of hob Built-In Hob Number of cooking zones Heating technology... -
Page 19: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006. Product installed in a domestic or non-domestic kitchen where 8 or fewer people use the appliance. - Page 20 Product serial number (Place sticker here) ISSUE V2 010518...
