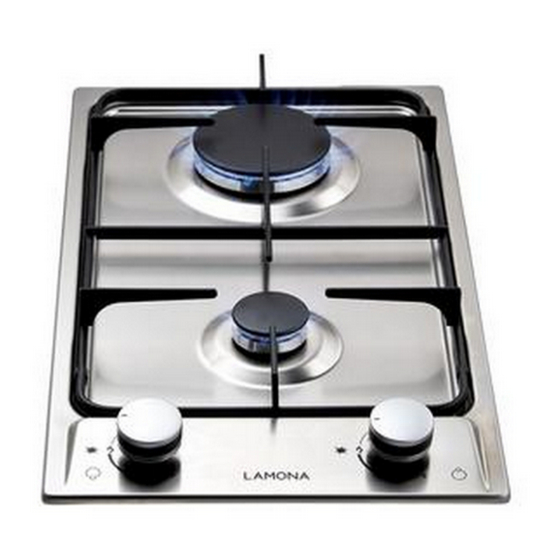

- Page 1 Gas Domino Hob LAM1004 User & Installation Guide...
- Page 2 LAMONA Appliances Dear Customer, Congratulations on your choice of hob which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob.
-
Page 3: Table Of Contents
User manual LAM1004 Index 01 - Before Using the hob 02 - Safety General Fire safety advice If a pan catches fire Deep fat frying If you have an Electrical Fire 03 - Using the hob Cooking with gas Controls... -
Page 4: Before Using The Hob
LAMONA Appliances 01 - Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and films from the hob surface. • It is recommended that you clean and wash the hob surface before using for the first time. -
Page 5: Fire Safety Advice
User manual LAM1004 Deep-fat frying presents more • Never heat up a sealed tin of food on the hob, as it may explode. dangers in your kitchen • Never leave pans overhanging the edge of the hob. • Never fill a chip pan (or other deep fat fryer) more than one-third full of oil. -
Page 6: Using The Hob
LAMONA Appliances 03 - Using the hob - Gas Hob How to use hobs The hob surface remains hot after use. The following diameter of pots should be used on the DO NOT TOUCH. burners: 1 Auxiliary burner (Front) 12-18 cm... -
Page 7: Flame Failure Device
User manual LAM1004 Flame failure device In case of flame failures of the burners for any reason, the flame failure sensor ‘A’ will cut off the gas flow after a few seconds. If this occurs, depress and turn the control knob to the ignition position clockwise direction and wait for ignition. -
Page 8: Hob Layout
LAMONA Appliances Hob layout Rear Burner (Rapid) 3000w Suitable for 7” or 18cm diameter saucepan Front Zone (Auxiliary) 1000w Suitable for 6” or 15cm diameter saucepan Front control Knob Rear control Knob... -
Page 9: Cleaning And Maintenance
User manual LAM1004 04 - Cleaning & maintenance How to clean your hob • Switch plates off and let cool. If necessary, • Do not use steam cleaners or high pressure treat plates with a cleaning agent (cleaner/ cleaning equipment. -
Page 10: Clearances And Dimensions Requirements
LAMONA Appliances to protect it from moisture ingress. Clearances and dimensions requirements Minimum distance between carcasses must be equal to overall width of all hobs 400mm min 150mm min between hob and rear wall (158mm min to cut out aperture) -
Page 11: Connect To The Electricity Supply
User manual LAM1004 Installation above an oven Place the hob in the aperture, checking the hob is If the appliance is installed with an oven covering the worktop along all four sides. Set the underneath, please leave at least 25mm of... -
Page 12: Adaptation To Various Types Of Gas
LAMONA Appliances Adaptation to various types of gas Should the appliance be pre-set for a different type 4. If the flame is higher than the desired position, of gas than that available, proceed as follows: turn the screw clockwise. If it is smaller turn anti clockwise. -
Page 13: Burner Characteristics
User manual LAM1004 Burner Characteristics / Injector Table Type Pressure Burner Injector Power (mbar) (1/100mm) consumption Natural Gas Front 1000 Rear 3000 G30/G31 28-30/37 Front 1000 Rear 3000 Technical Data Voltage / frequency 220-240 V ~ 50 Hz Mains cable H05RR-F 3 X 0.75 mm... -
Page 14: Your Guarantee
LAMONA Appliances 06 - Your guarantee Product Guarantee Details (UK only) Your appliance has the benefit of a comprehensive manufacturer’s guarantee which covers the cost of breakdown repairs. (Details of which are shown on your Proof of Purchase Document). •... - Page 15 User manual LAM1004 Notes _ 15...
- Page 16 ISSUE 1st Draft If supplied, please stick your self adhesive product rating plate here, or make a note of the product serial number below in the box below for future reference. Serial Number : ...................
