Ceramic Touch Control Hob LAM1745 User Guide www.howdens.com/appliance-registration Part No: 0835503001 Date: 09/02/2017...
Page 3
INTRODUCTION Thank you for buying this British-built appliance from us. This user guide book is designed to help you through each step of owning your new product. Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can.
Page 4
SAFETY WARNING • If the hob surface is cracked, broken or shattered, switch off the appliance to avoid the possibility of electric shock and call for a service engineer’s visit. • The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
Page 5
If you have an electrical fire in the kitchen: • Pull the plug out, or switch off the power at the fuse box - this may be enough to stop the fire imme- diately • Smother the fire with a fire blanket, or use a dry powder or carbon dioxide extinguisher •...

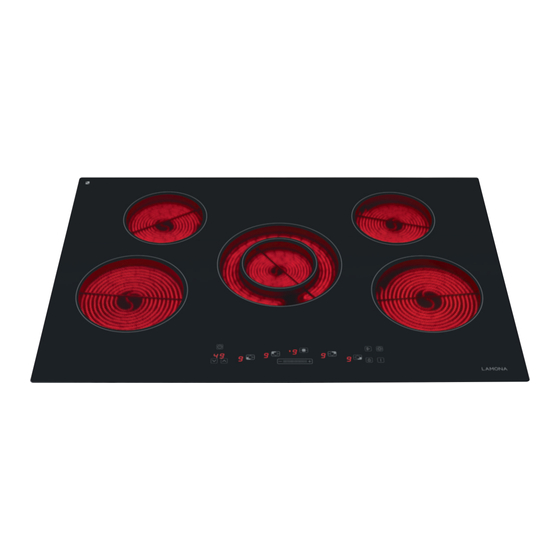

USING YOUR APPLIANCE Getting to know your product Note: Your appliance layout may differ depending on the model. Left hand rear Right hand rear Centre Right hand Left hand front front Hob controls Dual Zone key Timer symbol Pause key Dual zone Cook zone Cook zone...
Page 7
Overview Function Description Symbol Once a cook zone is selected, a power level can be Power Level set to a low or high temperature. After use, the cooking surface remains hot and the residual heat symbol will be displayed. As it cools, Residual Heat the residual heat symbol will disappear from the display.
Page 8
Always ensure the touch control area is clean, dry and free from any objects. A beeping sound will be activated and will keep on beeping every 10 seconds, to attract your attention. Please remove any objects and clean the area as appropriate. Note: During cooking, the elements will cycle on and off.
Page 9
Press and hold the On/Off key Press the required cook zone key Use the slider to adjust power level When a power level has been set, either touch the cook zone key again to confirm the setting or after 5-10 seconds, the hob will automatically set the hob power and will beep and stop flashing. Switching off an individual cook zone Press required cook zone key...
Page 10
Use the slider to select power level 0 Dual Zone (If fitted) COOK ZONE KEY (INNER ONLY) CENTRAL DUAL ZONE KEY (INNER & OUTER) Note; Generic illustration shown above your appliance may visually differ. To operate the dual cook zone Select cook zone Select power level...
Page 11
Press Dual Zone key The power level of the cook zone will stop flashing and the power level is set. To de-select the dual cook zone Select cook zone Use the slider to select power level 0 Press Dual Zone key Note: Only the inner ring can be be operated on its own, the outer ring can only be operated with the inner ring, match your pan accordingly.
Page 12
Residual Heat Indicators (for each cook zone) If the glass surface is hot an “H” will be displayed in the cook zone display until the glass has sufficient- ly cooled. Note: “ H” and “0” will flash alternatively if the cook zone is hot and another cook zone is in use. Pause function The heaters actual power settings are stored and all the active heaters power are set to 0, the heaters auto switch off time is stopped, all the timers running count downs are stopped, all keys are locked...
Page 13
Use the slider to select the power level Press the up or down keys to select the timer Press the up or down keys to set a time Note: Once the time has elapsed, touch the timer key to cancel the alarm. When more than one cook zone is being timed, touch the cook zone key to view the timer.
Safety Shut Down If the power level is not changed for a long period of time the cook zone will automatically turn itself off. The maximum time a cook zone can stay on depends on the power level. Max Time (Hours) Power Level Error Codes Hob status Fault Description...
CLEANING YOUR APPLIANCE Do’s Note: Always switch off your appliance and allow it to cool down before you clean any part of it. Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading.
INSTALLATION INSTRUCTIONS Before you start please read the instructions. Planning your installation will save you time and effort. FAILURE TO INSTALL APPLIANCES CORRECTLY IS DANGEROUS AND COULD LEAD TO PROSECUTION. Please take care when handling - we recommend the use of protective gloves during installation. Installation should only be carried out by a competent electrician / qualified technician.
CHOOSING YOUR INSTALLATION Installation above an oven Refer to the manufacturer’s instructions for clearances above the oven. We recommend a minimum 20mm gap between the bottom of the hob and appliance, should the work surface be less than 38mm deep Installation above a unit with a drawer or door If necessary, remove the front crosspiece of the unit.
DIMENSIONS AND CLEARANCES rear wall Hobs - 53mm min Worktop cutout sizes Please see table below for hob cut out dimensions for your appliance X(mm) Y(mm) Product *60cm hob *77cm hob 737.5 487.5 The nominal dimensions are shown on the hob cut out table and must be fabricated to a toler- ance of +2.0mm -0.0mm with maximum corner radi of 4.0mm Fitting into work top Sufficient length of cable should be allowed so the hob can be removed for servicing, but make sure it...
Page 19
Cupboard / hood clearances Nominal width of the hob No shelf or overhang of combustible material should be closer than 650mm above the hob. Wall Unit Wall Unit inc cornice inc cornice 400mm 400mm 650mm 90mm 90mm worktop Self adhesive seal Apply the self adhesive seal to the underside edges of the hob glass.
Page 20
Recessed Method (selected models) Recess the work top to the appropriate depth (Approx 5mm) and shape to fit the hob (add 1mm to over- all glass size). Refer to the installation bracket advice to determine your installation type. Insert the hob into the re- cess, ensuring that the foam seal is sitting correctly.
Page 21
Push fit hob installation Your new hob is pre-fitted with push fit installation clips which are designed to simplify the installation procedure and retain the hob into the worktop. Care must be taken to not damage these clips whilst installing this product. Depending on your product the images below show the push fit clips...
Page 22
Depending on your product, the images below represents how the system interacts with your worktop. Note; The worktop cut out dimensions are critical and will affect the performance of how the push fit system works. The nominal dimensions are shown on the hob cut out table and must be fabricated to a tolerance of +2.0mm -0.0mm.
CONNECT TO THE ELECTRICITY SUPPLY This appliance must be earthed. Only connect to the electrical mains terminal with the power switched off. The electrical mains terminal is live. Loose and inappropriate connections can make the terminal overheat. A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening of at least 3mm.
Page 24
3 PHASE SUPPLY - FOR INSTALLATION IN MAINLAND EUROPE For connection to a 3 phase supply, the supplied mains cable and bridging links will need to be removed. • Firstly open the terminal block cover using a small flat bladed screwdriver in the door release tabs Terminal Block Connection shown.
RH Rear RH Front For the specific power rating of your model, refer to the data badge on the under side of your appliance. Warning: This appliance must be earthed. Product Information Commission Regulation (EU) No 66/2014 LAMONA Model LAM1745 Type of Hob Ceramic No of Cooking Zones Heating Technology Ceramic FL – 180mm RL – 150mm Diameter FR –...
Page 26
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance.
Page 27
Please keep this handbook for future reference, or for anyone else who may use the appliance.
Page 28
Product serial number (Place sticker here) ISSUE V2 070217...
