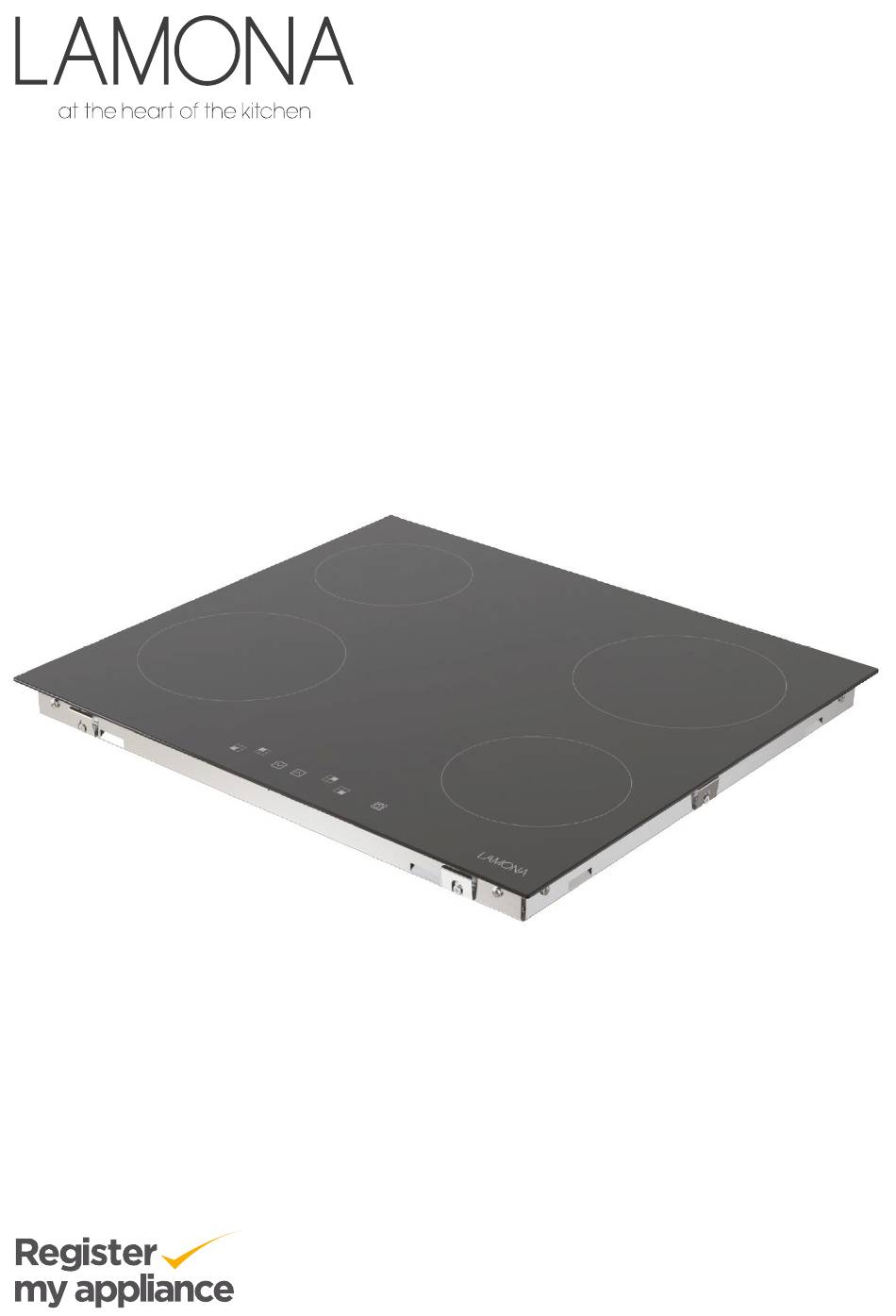

- Page 1 4-Zone Ceramic Hob LAM1746 Instructions and Installation www.howdens.com/appliance-registration ISSUE v3. 030522...
- Page 2 4-Zone Ceramic Hob LAM1746 www.howdens.com...
- Page 3 Instructions and Installation Welcome Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions. •...
-
Page 4: Table Of Contents
4-Zone Ceramic Hob LAM1746 Contents 1. Before using the hob 7. Installation General information 2. Safety Positioning General Clearances and dimensions Fire safety advice Before installation If a pan catches fire Self-adhesive seal Deep-fat frying Protecting the hob cut-out If you have an electrical fire Fitting the hob 3. -
Page 5: Before Using The Hob
Instructions and Installation 1. Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and films from the hob surface. • It is recommended that you clean the hob surface before using for the first time (see page 16). 2. - Page 6 4-Zone Ceramic Hob LAM1746 • Always match the size of pan to the heat zone – do not use large pans on small zones or vice versa. • Always lift pans onto and off the hob, rather than sliding them across the surface to avoid marks and scratches.
-
Page 7: Fire Safety Advice
Instructions and Installation • Fire safety advice • Most kitchen fires occur when people are distracted or leave things unattended, so remember: • If you’re called away from the hob – by the phone or someone at the door, either take pans off the heat, or switch off your hob. •... -
Page 8: Environmental Instructions
4-Zone Ceramic Hob LAM1746 3. Environmental instructions Waste regulation Disposing of the old product. Compliance with the WEEE Directive and disposing of the waste product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 9: Information About Cooking
Instructions and Installation 4. Information about cooking The following information will cooking time. You cab obtain help you to use your appliance energy savings up to 20% by in an ecological way, and to using residual heat. save energy: NEVER fill the pan with oil •... - Page 10 4-Zone Ceramic Hob LAM1746 • As the surface of the product Tips about glass ceramic hobs can be hot, do not put plastic • Glass ceramic surface is and aluminium vessels on it. heatproof and is not affected Clean any melted materials on by big temperature differences.
-
Page 11: Using The Hob
Instructions and Installation 5. Using the hob • Do not use the ceramic hob Symbol Description if the glass surface is cracked, Main key – On/Off as electrical parts are directly beneath. Power/timer set • Switch off the appliance at the supply to prevent an electric Cooking zone shock and contact your supplier. -
Page 12: Booster
4-Zone Ceramic Hob LAM1746 Selecting cooking zones: second, half second 9 ) once the booster time is over, power of 1. Turn on the hob. the cooking zone will be reduced 2. Touch one of the cooking and the temperature value will be zone selection controls to turn displayed continuously. -
Page 13: Key Lock
Instructions and Installation Key lock 2. If 9 will be selected as temperature level that will be You can protect the hob against activated after booster period being operated unintentionally and no other lower level is in order to prevent children from selected, then flashing of the turning on the cooking zone. -
Page 14: Operation Time Limits
4-Zone Ceramic Hob LAM1746 Operation time limits The hob control is equipped with an operation time limit. When one or more cooking zones are left on. Temperature Off time On time Operation time Booster time setting (seconds) (seconds) limit (hours) (seconds) –... -
Page 15: Sensor Calibration And Error Codes
Instructions and Installation Sensor calibration can only be operated when the calibration of all the sensors and error codes is successful. When the supply power is • You must be remove all applied, hob control system substances on the hob during performs calibration depending calibration. -
Page 16: Cleaning And Maintenance
4-Zone Ceramic Hob LAM1746 6. Cleaning and maintenance • Foods with high sugar content How to clean your hob (toffee, fruit juice, jam, etc.) that boil over while cooking, • The ceramic hob top can or spattered sugar stains must... -
Page 17: Installation
Instructions and Installation 7. Installation • If there is a drawer beneath the General information oven, a shelf must be installed between oven and drawer. • Installation should only be carried out by a registered • The following installation competent person. drawings are representational and may not match exactly •... -
Page 18: Clearances And Dimensions
4-Zone Ceramic Hob LAM1746 Clearances and dimensions requirements 50mm min. 490mm 50mm min. Minimum distance between cabinets must be equal to the overall width of all hobs. There must be a minimum Minimum height to extractor clearance of 50mm between... -
Page 19: Before Installation
Instructions and Installation Before installation Installation above an oven If the appliance is installed with The product should only an oven underneath, please be installed by a registered leave at least 15mm of ventilation, qualified person. unless otherwise stated in your The product must be installed oven installation guidelines. -
Page 20: Self-Adhesive Seal
4-Zone Ceramic Hob LAM1746 Self-adhesive seal Fitting the hob Turn the hob underside down, place it on a flat protected surface. Apply the self adhesive seal to the underside edges of the hob glass. For best results, the seal should be... -
Page 21: Electrical Connections
Instructions and Installation 8. Electrical connections • The appliance may be connected to the mains • IMPORTANT: The wires in supply only by a registered the mains lead are coloured competent person. in accordance with the • IMPORTANT: Ensure that the following code: electricity supply is switched BLUE... - Page 22 4-Zone Ceramic Hob LAM1746 BROWN BLUE (Live) (Neutral) GREEN YELLOW (Earth) For single-phase 220V to 240V UK Connect the wires as identified below: • Brown/Black cable = L (Live) • Blue/Grey cable = N (Neutral) • Green/yellow cable = (E) (Earth)
- Page 23 Instructions and Installation This hob is pre-fitted with a mains lead. The appliance may be connected to the mains supply only by a registered competent person. The mains lead must not be clamped, bent, trapped, or come into contact with hot parts of the appliance. If the mains lead is damaged, it must be replaced by a registered competent person (mains cable must not be longer than 2m for safety reasons) using the same cable type as defined in the...
-
Page 24: Technical Specifications
4-Zone Ceramic Hob LAM1746 9. Technical specifications Technical information Outer dimensions Width 580mm Depth 510mm Height 55mm Cut-out dimensions Width 560mm (+2) Depth 490mm (+2) Cook zones Hob wattage-front left / rear right Ø180-1800W Hob wattage-front right / rear left Ø140-1200W... -
Page 25: Troubleshooting
• Hob appears to be locked or not responding properly to the controls. ››› Power off the appliance at the switched outlet or circuit breaker. Wait 20 seconds and then reconnect it. If this does not cure the problem please call the Lamona Service Line. -
Page 26: Your Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within the UK: 0344 460 0006 Within Republic of Ireland: 01525 5703 • Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 27 Instructions and Installation Notes _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________ _____________________________________________________________________...
- Page 28 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA Imported in EU by: Houdan Cuisines SAS, Z.A. du Bois Rigault Nord, 1Rue Calmette, 62880 Vendin-le-Vieil, Cedex, France.
