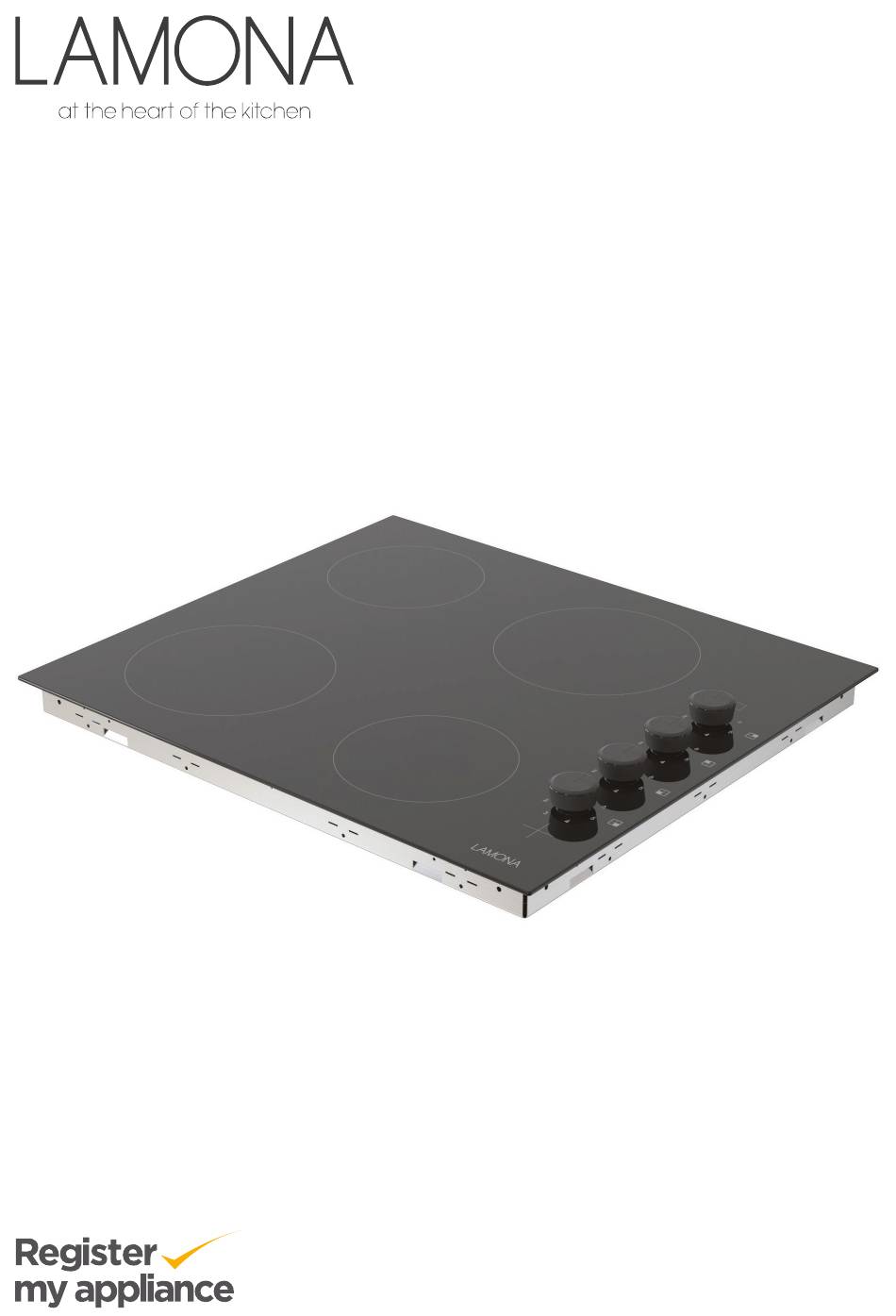

- Page 1 Ceramic Side Control Hob LAM1706 Instructions and Installation www.howdens.com/appliance-registration ISSUE v3. 030522...
- Page 2 Ceramic Side Control Hob LAM1706 www.howdens.com...
- Page 3 Instructions and Installation Welcome Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions. •...
-
Page 4: Table Of Contents
Ceramic Side Control Hob LAM1706 Contents 1. Before using the hob 2. Safety General Fire safety advice If a pan catches fire Deep-fat frying If you have an Electrical Fire 3. Environmental instructions Waste regulation Package information Future transportation 4. Using the hob... -
Page 5: Before Using The Hob
Instructions and Installation 1. Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and films from the hob surface. • It is recommended that you clean the hob surface before using for the first time (see page 14). 2. - Page 6 Ceramic Side Control Hob LAM1706 • Always match the size of pan to the heat zone – do not use large pans on small zones or vice versa. • Always lift pans onto and off the hob, rather than sliding them across the surface to avoid marks and scratches.
-
Page 7: Fire Safety Advice
Instructions and Installation Fire safety advice • Most kitchen fires occur when people are distracted or leave things unattended, so remember: • If you’re called away from the hob - by the phone or someone at the door, either take pans off the heat, or switch off your hob. •... -
Page 8: Environmental Instructions
Ceramic Side Control Hob LAM1706 3. Environmental instructions Waste regulation Disposing of the old product. Compliance with the WEEE Directive and disposing of the waste product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). -
Page 9: Using The Hob
Instructions and Installation 4. Using the hob • Do not use the ceramic hob if the glass surface is cracked, as electrical parts are directly beneath. Switch off the appliance at the supply to prevent electric shock and contact your supplier. •... -
Page 10: Hob Layout
Ceramic Side Control Hob LAM1706 Hob layout Rear Left Zone (140mm 1200w) Power on Indicator. Suitable for 6" or 15cm diameter Rear right Control Knob. saucepan. Rear left Control Knob. Rear Right Zone (180mm 1700w) Suitable for 7" or 18cm diameter Front left Control Knob. -
Page 11: Cleaning And Maintenance How To Clean Your Hob
Instructions and Installation 5. Cleaning and maintenance How to clean your hob • The ceramic hob top can • Regular cleaning will prevent be cleaned using a clean, any salts or minerals from damp cloth or kitchen paper. accumulating on your hob Do not use a used dishcloth and discolouring the glass. -
Page 12: Installation
Ceramic Side Control Hob LAM1706 6. Installation General information Positioning Installation should only be carried The hob is designed to be built out by a qualified installer or into a worktop as detailed in the engineer. image. Aperture width: Please note:... -
Page 13: Clearances And Dimensions
Instructions and Installation Clearances and dimensions 50mm min between hob and rear 490mm(+2) wall (>60mm to cut out aperture) 50mm min. Minimum distance between cabinets must be equal to overall width of all hobs. There must be a minimum Minimum height to extractor clearance of 50mm between the as recommended in extractor rear edge of the hob and the... -
Page 14: Before Installation
Ceramic Side Control Hob LAM1706 Place the hob in the aperture, • Surfaces, synthetic laminates checking the hob is covering and adhesives used must be the worktop along all four heat resistant. sides. Set the front edge of the • Kitchen cabinets must be set appliance parallel with the front level and fixed. -
Page 15: Installation Above An Oven
Instructions and Installation Installation above an oven If the appliance is installed with an oven underneath, please leave at least 15mm of ventilation, unless otherwise stated in your oven installation guidelines. Gently insert hob into cut out, allowing clips to hold the hob in place. -
Page 16: Electrical Connections
Ceramic Side Control Hob LAM1706 7. Electrical connections • IMPORTANT: Ensure that the • IMPORTANT: The wires in electricity supply is switched the mains lead are coloured off before connecting. Your in accordance with the hob is intended for permanent following code: installation. - Page 17 Instructions and Installation BROWN BLUE (Live) (Neutral) GREEN YELLOW (Earth) The appliance may be If the mains lead is connected to the mains damaged, it must be supply only by a suitably replaced by a suitably qualified person. qualified person (mains cable must not be longer The mains lead must not be than 2m for safety reasons).
-
Page 18: Technical Specifications
Ceramic Side Control Hob LAM1706 8. Technical specifications Outer Dimensions Width 580(+2)mm Depth 510(+2)mm Height 49,4 mm(not including glass) Outer Dimensions Width 560mm Depth 490mm Cook Zones Hob Wattage-Front Left Ø180-1700w Hob Wattage-Rear Left Ø140-1200w Hob Wattage-Front Right Ø140-1200w Hob Wattage-Rear Right Ø180-1700w... -
Page 19: Your Guarantee
• Your full contact details. Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on: Within the UK: 0344 460 0006 Within Republic of Ireland: 01525 5703 • Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 20 Product serial number (Place sticker here) REPRISE À DÉPOSER À DÉPOSER À LA LIVRAISON EN MAGASIN EN DÉCHÈTERIE Cet appareil se recycle Howden Joinery Ltd, Thorpe Road, Howden, East Yorkshire, DN14 7PA Imported in EU by: Houdan Cuisines SAS, Z.A. du Bois Rigault Nord, 1Rue Calmette, 62880 Vendin-le-Vieil, Cedex, France.
