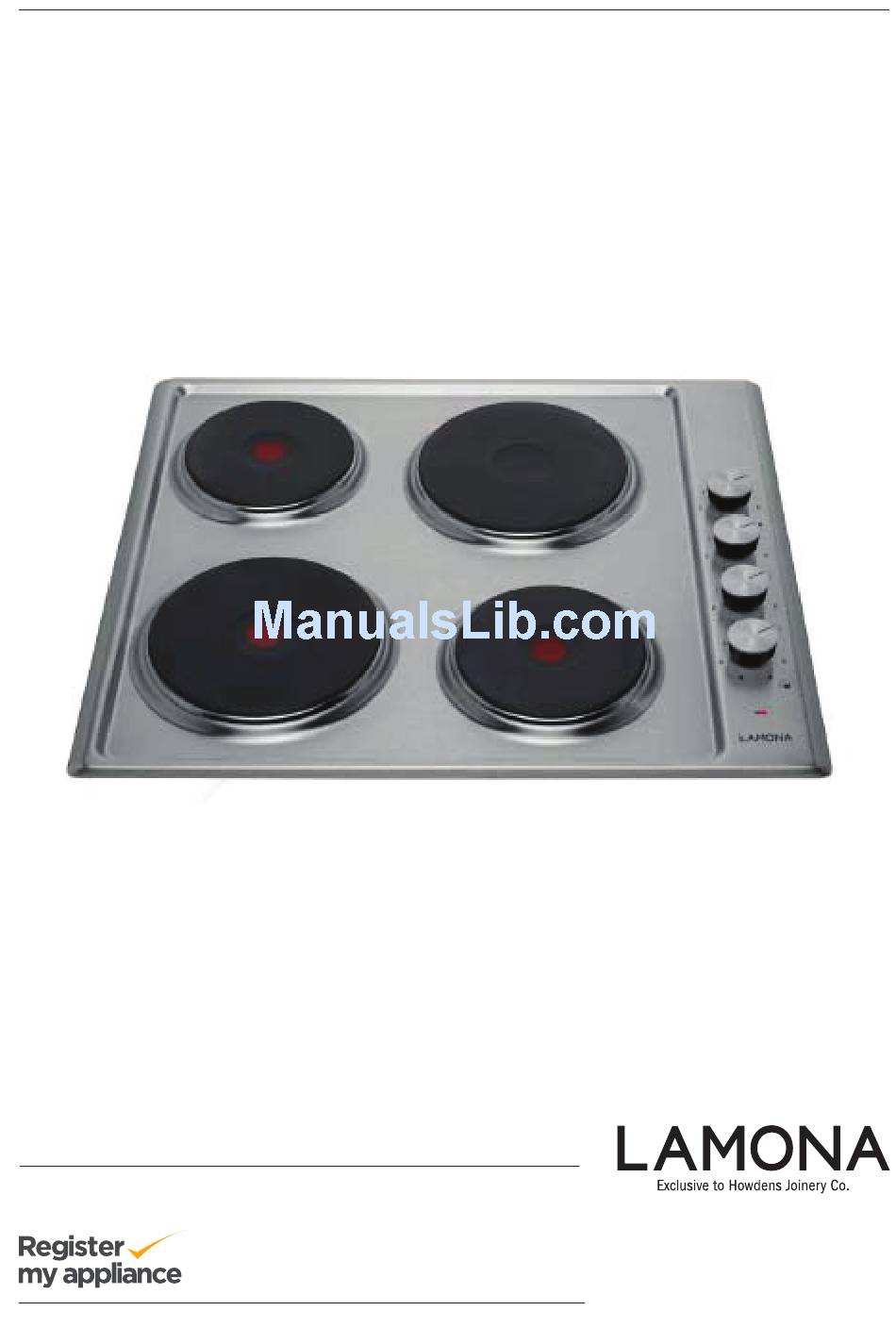

- Page 1 Electric Solid Plate Hob LAM1215 Instructions and Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM1215 Dear Customer, Congratulations on your choice of hob. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the hob. • Always follow the safety instructions.
-
Page 4: Table Of Contents
LAMONA Appliances Index 01 - Before Using the hob 02 - Safety General 05-06 Fire safety advice If a pan catches fi re Deep fat frying If you have an Electrical Fire 03 - Using your hob Controls Hob Layout... -
Page 5: Safety
User manual LAM1215 01 - Before using the hob • Make sure that you have removed all packaging, wrappings, stickers and fi lms from the hob surface. • It is recommended that you clean and wash the hob surface before using for the fi rst time (see p10). - Page 6 LAMONA Appliances • Always match the size of other metal objects on the pan to the heat zone – do not hob. They could become hot if use large pans on small zones they are near a cooking area or vice versa.
-
Page 7: Fire Safety Advice
User manual LAM1215 Fire safety advice Deep-fat frying presents more dangers in your kitchen • Most kitchen fires occur when people are distracted or • If you have put the fire out, leave things unattended, so leave the pan to cool com- remember: pletely. -
Page 8: Using Your Hob
LAMONA Appliances 03 - Using the hob - Electric Hob Do not use the hob if the surface is cracked, as electrical parts are directly beneath. Switch off the appliance at the supply to prevent electric shock and contact your supplier. -
Page 9: Hob Layout
User manual LAM1215 Hob layout Rear Left Zone (Rappid) Ø145mm 1500w Rear right control Knob Suitable for 6” or 15cm diameter saucepan Rear left control Knob Rear Right Zone (Standard) Ø180mm 1500w Suitable for 7” or 18cm diameter saucepan Front left control Knob Front right control Knob Front Left Zone (Rapid) Ø180mm 2000w... -
Page 10: Cleaning And Maintenance
LAMONA Appliances 04 - Cleaning & maintenance How to clean your hob • Switch plates off and let cool. If necessary, • Wipe any spillage as soon as possible after the treat plates with a cleaning agent (cleaner/ hob has cooled. -
Page 11: Clearances And Dimensions Requirements
User manual LAM1215 Clearances and dimensions requirements Minimum distance between carcasses must be equal to width of hob 400mm min 55mm min 50mm min between hob and rear wall 560mm (>60mm to cut out aperture) 490mm 50mm Min Minimum height to extractor... - Page 12 LAMONA Appliances Worktop 15mm oven or partition Apply a thin bead of the putty seal (provided) to the underside of the hob. For best results ensure the putty is applied evenly, as close to the edge as possible and only use the necessary amount.
-
Page 13: Connect To The Electricity Supply
User manual LAM1215 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your hob is intended for permanent installation. Your appliance must be connected to fi xed wiring via the use of a double pole switched outlet with at least 3mm contact separation. -
Page 14: Technical Data
LAMONA Appliances The appliance may be connected to the mains supply only by a competent person. The mains lead must not be clamped, bent, trapped, or come into contact with hot parts of the appliance. If the mains lead is damaged, it must be replaced by a qualifi ed person (mains cable must not be longer than 2m for safety reasons). -
Page 15: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 * Product installed within a domestic kitchen or non-domestic kitchen where 8 or fewer people are using the appliance. - Page 16 LAMONA Appliances...
- Page 17 User manual LAM1215 _ 17...
- Page 18 LAMONA Appliances...
- Page 20 Product serial number (Place sticker here) Issue v7 250117 185.9290.96/R.AA/25.01.2017...
