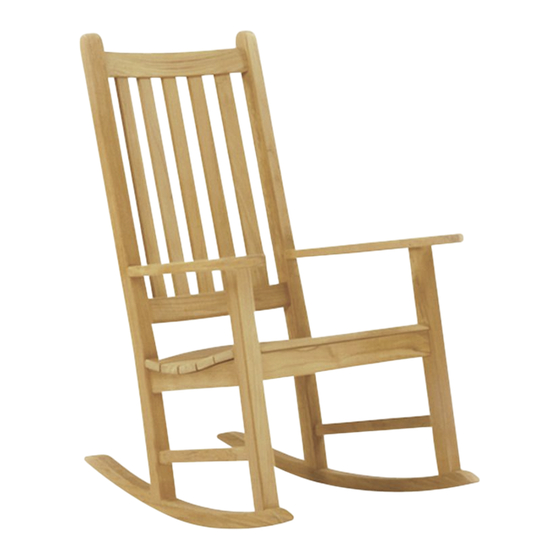

kingsley-bate CR - 25 Assembly Instructions

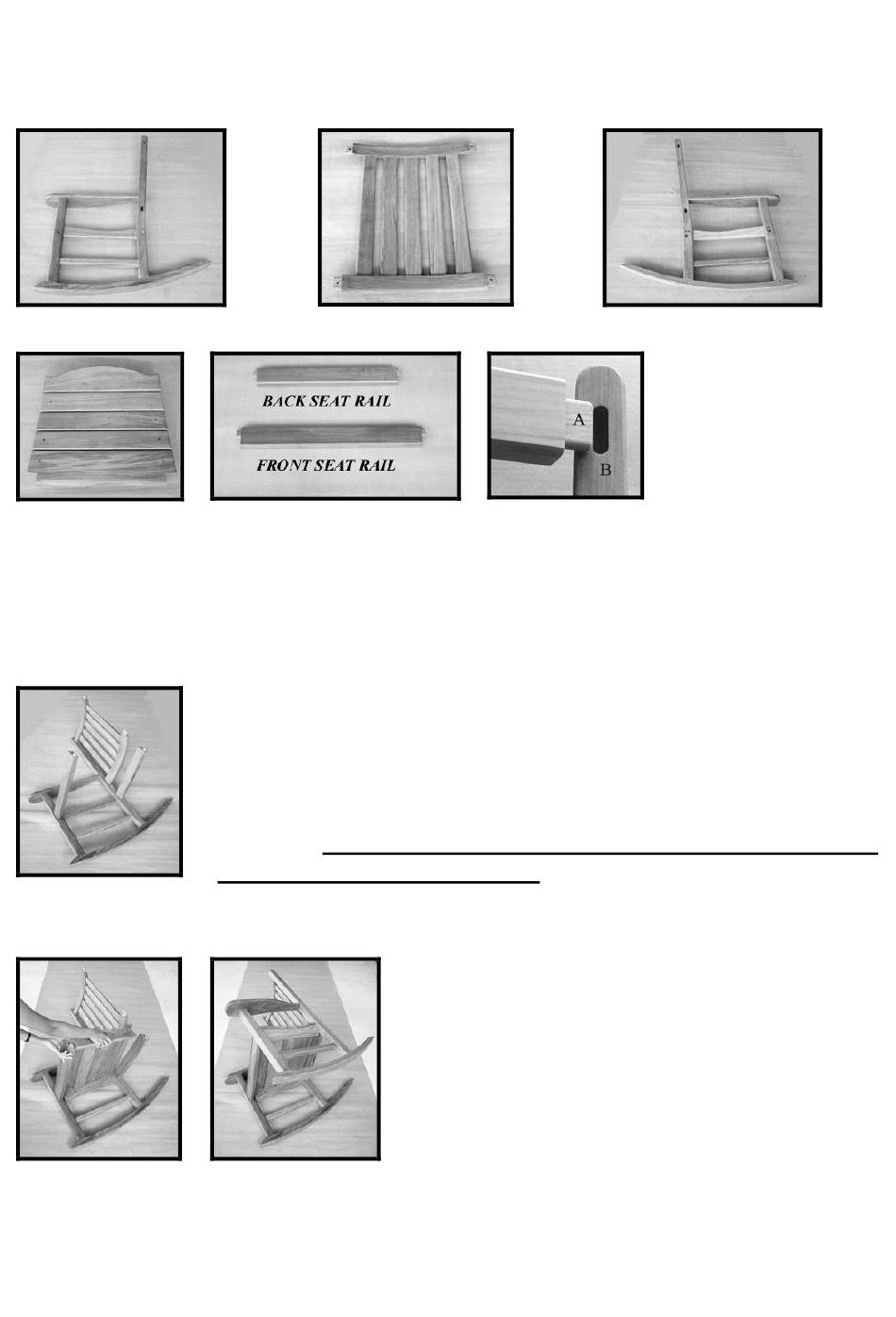

ASSEMBLY INSTRUCTIONS FOR THE CR - 25
RIGHT END FRAME
SEAT
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match all the joints with the
corresponding letters or numbers stamped on the furniture.
KINGSLEY – BATE
Fine Garden Furniture
BACK
STEP-II
Place the LEFT END FRAME on its side with the mortise joints
facing up. Insert the BACK and BOTH SEAT RAILS into the LEFT
END FRAME as shown in the diagram. If necessary, gently rock
the component pieces while pushing down until all joints fit snugly
together. It is important to match the numbers on the tenons
with those on the mortise holes.
STEP-III
Rest the SEAT between the FRONT and BACK
SEAT RAILS on the LEFT END FRAME. Fit
the RIGHT END FRAME onto the tenons of the
BACK and the two SEAT RAILS. If necessary,
you may wish to gently hammer the RIGHT
END FRAME with a rubber mallet to insure that
all the joints fit snugly together.
LEFT END FRAME
* NOTE:
A TENON
B MORTISE HOLE
