kingsley-bate TR-36 Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR THE TR - 36/42/50/60

LEGS

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match all joints with the corresponding

letters or numbers stamped on the furniture.

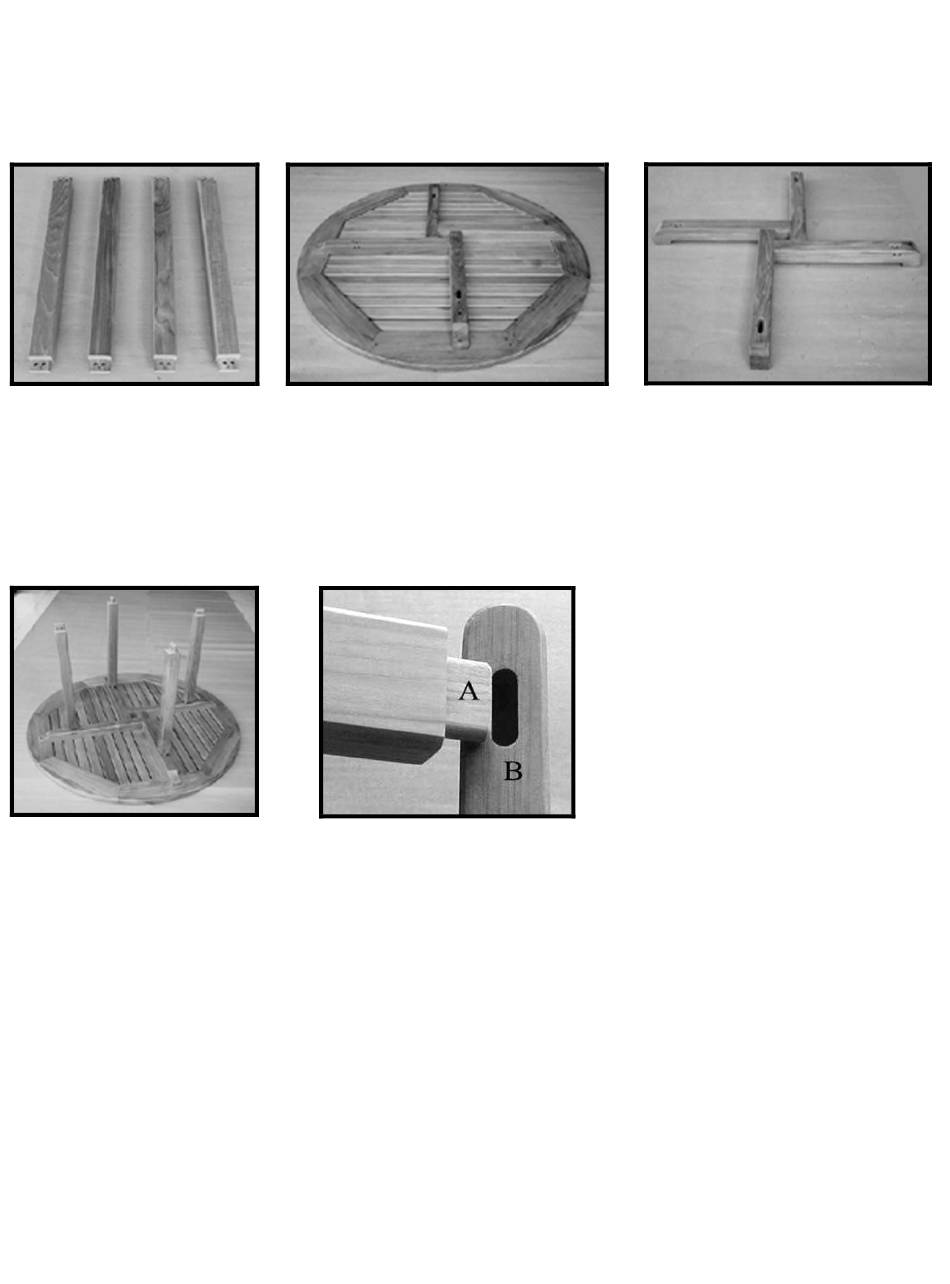

Place the TABLE TOP face down and carefully insert the LEG tenons into the respective

mortise holes of the TABLE TOP. Tenons of the LEGS will be marked with a number or

a letter to correspond with the respective mortise holes of the TABLE BASE. Insert all

four LEG tenons into the respective mortise holes of the TABLE TOP.

KINGSLEY – BATE

Fine Garden Furniture

TABLE TOP

TABLE BASE

* NOTE

A TENON

B MORTISE HOLE
