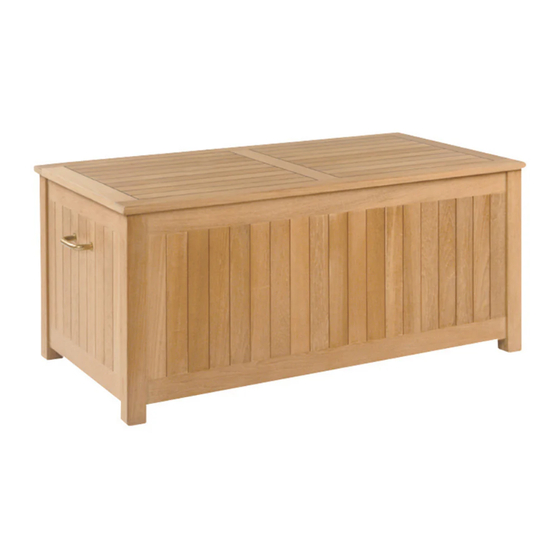

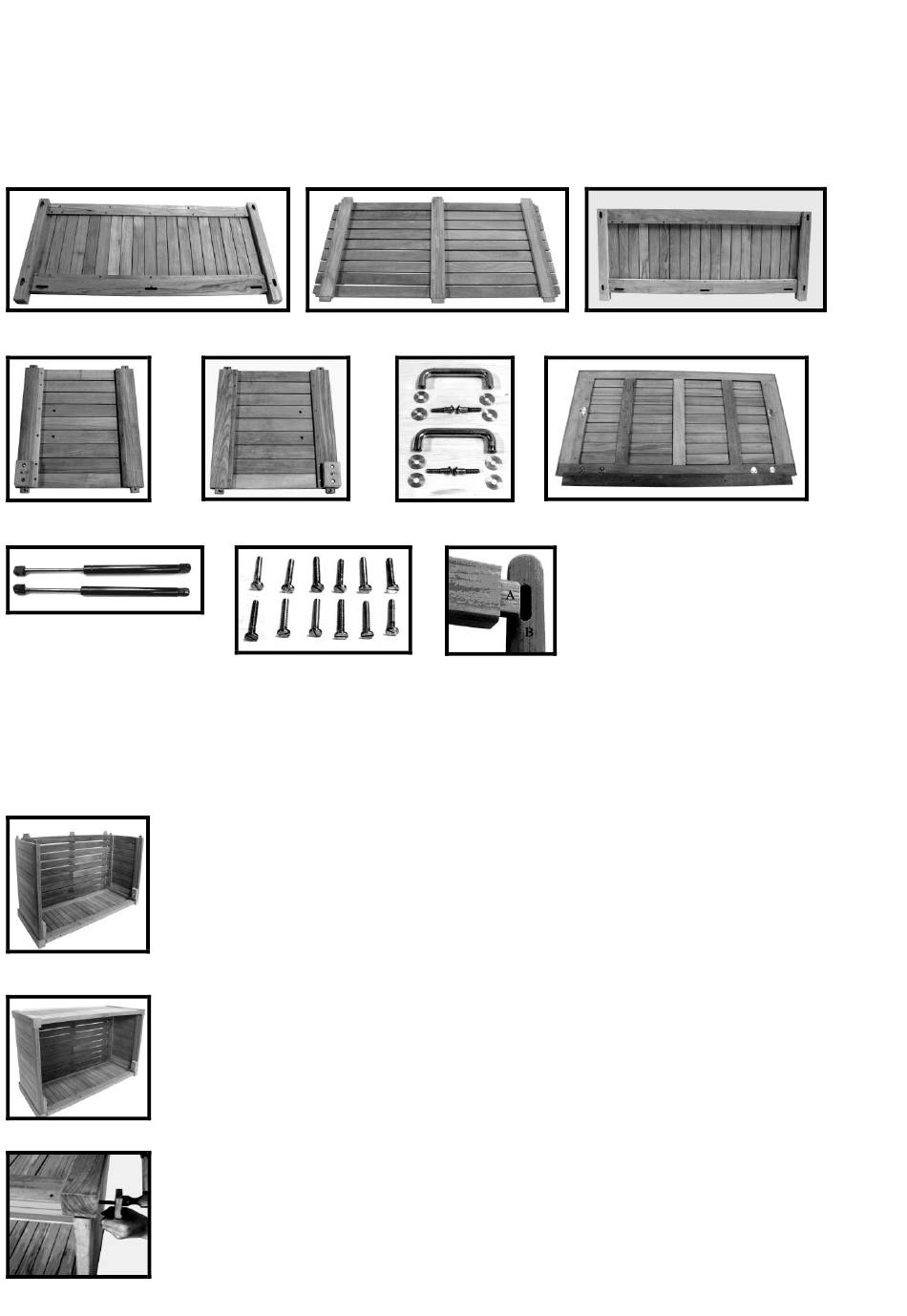

ASSEMBLY INSTRUCTIONS FOR THE CB-53/60
BACK PANEL
LEFT & RIGHT SIDE PANELS
HYDRUALICS
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match all joints with the corresponding
letters or numbers stamped on the furniture.
DOWELS.
KINGSLEY BATE
Fine Garden Furniture
KD BOLTS
STEP-II
Carefully place the BACK PANEL on a smooth, flat surface with the
mortise holes facing up. Matching the stamped numbers on the tenons
with those next to the mortise holes, gently insert the LEFT and RIGHT
SIDE PANELS and the BOTTOM into position as shown in the
photograph.
STEP-III
Fit the FRONT PANEL over and onto the exposed tenons and using a
rubber mallet, drive all joints together evenly. If you use a hammer, put
the sanding block between the hammer head and the wood to prevent any
damage or marring of the wood.
STEP-IV
Drive locking dowels into place with a hammer. Use the sanding block
between the hammer head and the dowel to prevent marring of the wood.
If dowel protrudes above the wood, sand it level with sanding block
provided. Make sure to sand along grain of the wood. DO NOT FORCE
BOTTOM
HANDLES
FRONT PANEL
LID
* NOTE:
A TENON
B MORTISE HOLE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for kingsley-bate CB-53
Summary of Contents for kingsley-bate CB-53
- Page 1 KINGSLEY BATE Fine Garden Furniture ASSEMBLY INSTRUCTIONS FOR THE CB-53/60 BACK PANEL BOTTOM FRONT PANEL LEFT & RIGHT SIDE PANELS HANDLES * NOTE: A TENON B MORTISE HOLE HYDRUALICS KD BOLTS STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
- Page 2 STEP-V From inside the box, insert 2 brass bolts fitted with one washer each. Slide 2 additional washers over the exposed threads on the outside of the box and using a proper screw driver, secure the handle into place; repeat on other side of box. Use of power screw driver could cause damage to the hardware or wood.
