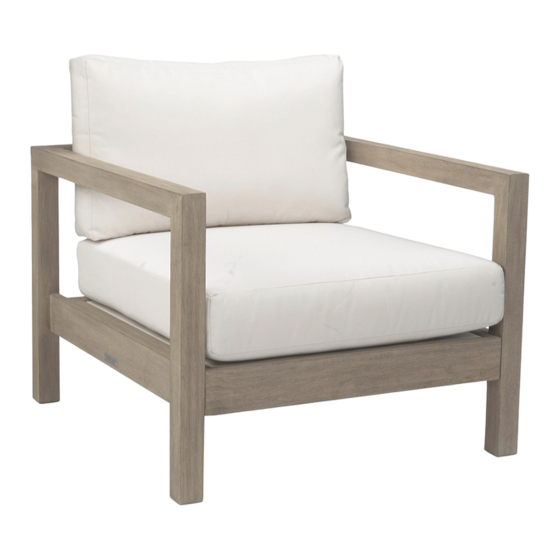

kingsley-bate MK-30 Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR THE MK-30

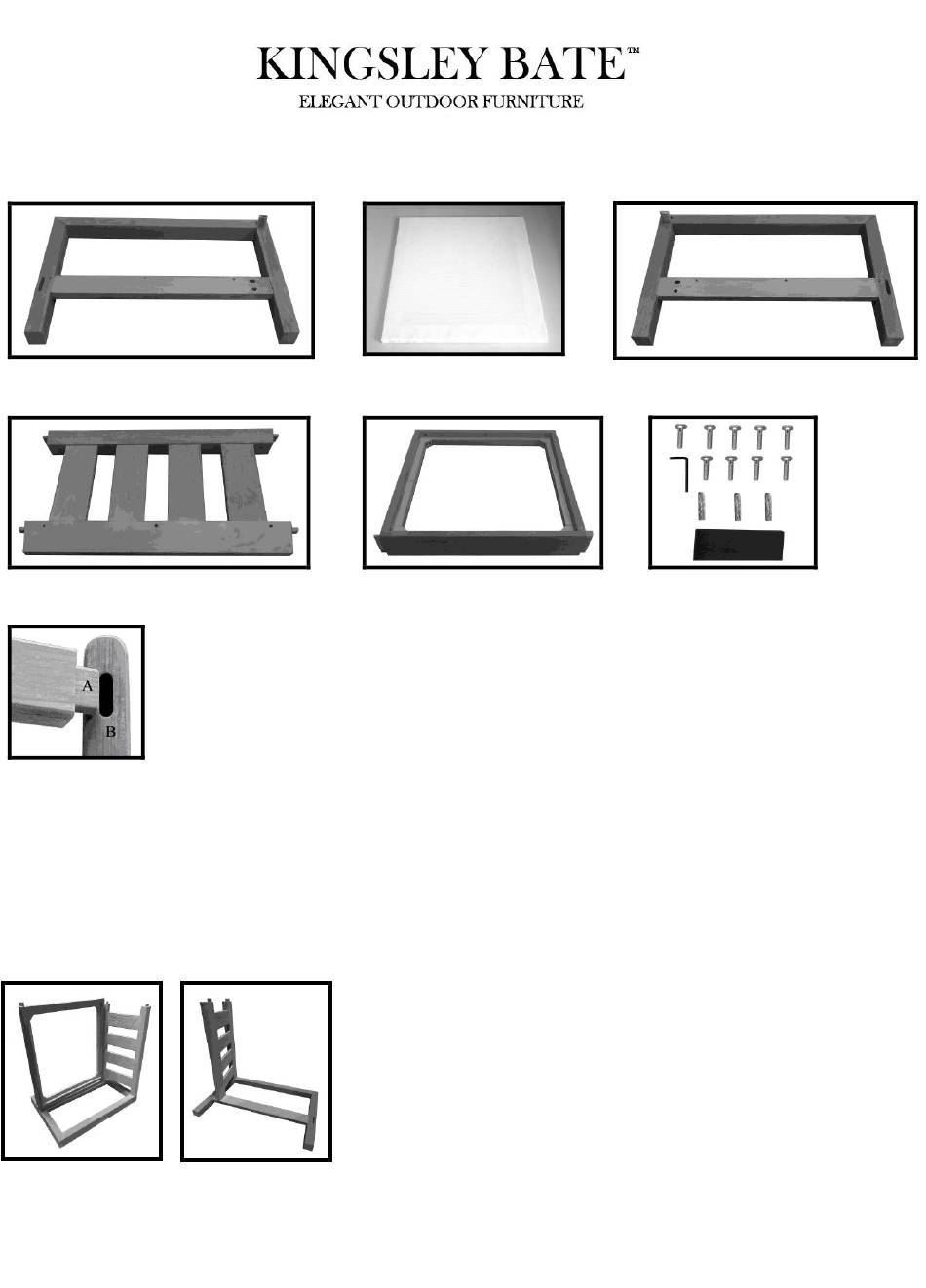

RIGHT END FRAME

BACK

* NOTE

A TENON

B MORTISE HOLE

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match joints with the corresponding letters or

numbers stamped on the wood.

SEAT INSERT

SEAT FRAME

STEP-II

Gently lay the END FRAME with the stamps near the

mortise holes on a clean, flat surface and fit the BACK

and SEAT FRAME tenons into the END FRAME

mortise holes. If necessary, gently rock the parts while

pushing down on them until all the joints fit snugly

together.

LEFT END FRAME

HARDWARE

Table of Contents

Need help?

Do you have a question about the MK-30 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS FOR THE MK-30 RIGHT END FRAME SEAT INSERT LEFT END FRAME BACK SEAT FRAME HARDWARE * NOTE A TENON B MORTISE HOLE STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
Page 2 STEP-III As shown in the photos above, carefully fit the remaining END FRAME mortise holes over all exposed tenons and using a rubber mallet or a regular hammer with the wood block between the hammer and the wood, gently drive all the mortise holes onto the tenons until all joints fit snugly together.
