ASSEMBLY INSTRUCTIONS FOR THE PV-73/96

TABLE TOP

TABLE BASES

STEP-I

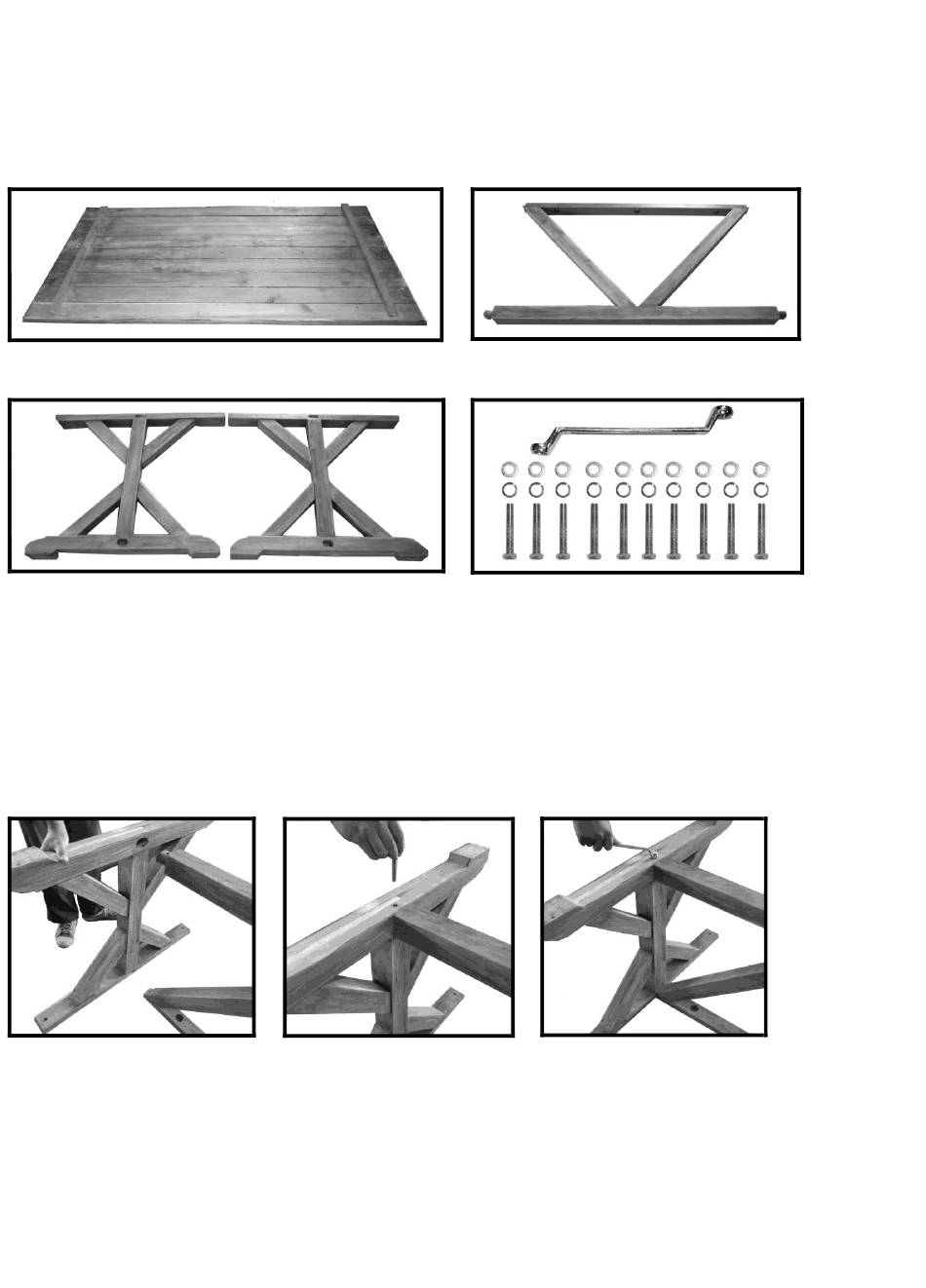

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match all joints with the corresponding

letters or numbers stamped on the furniture. ASSEMBLY OF THIS ITEM IS A TWO

PERSON PROCEDURE.

Set LEG STRETCHER upside down as shown in photograph and slide corresponding

TABLE BASE into position gently. Slide a split washer followed by a flat washer over 1 of

the Knock Down Bolts provided and secure with wrench provided. NOTE: Take care not

to over-tighten KD Bolts and DO NOT use power tool. Use of power tool could result in

damage to threaded inserts. Repeat procedure with opposite TABLE BASE.
