ASSEMBLY INSTRUCTIONS FOR THE TR - 30

LEGS

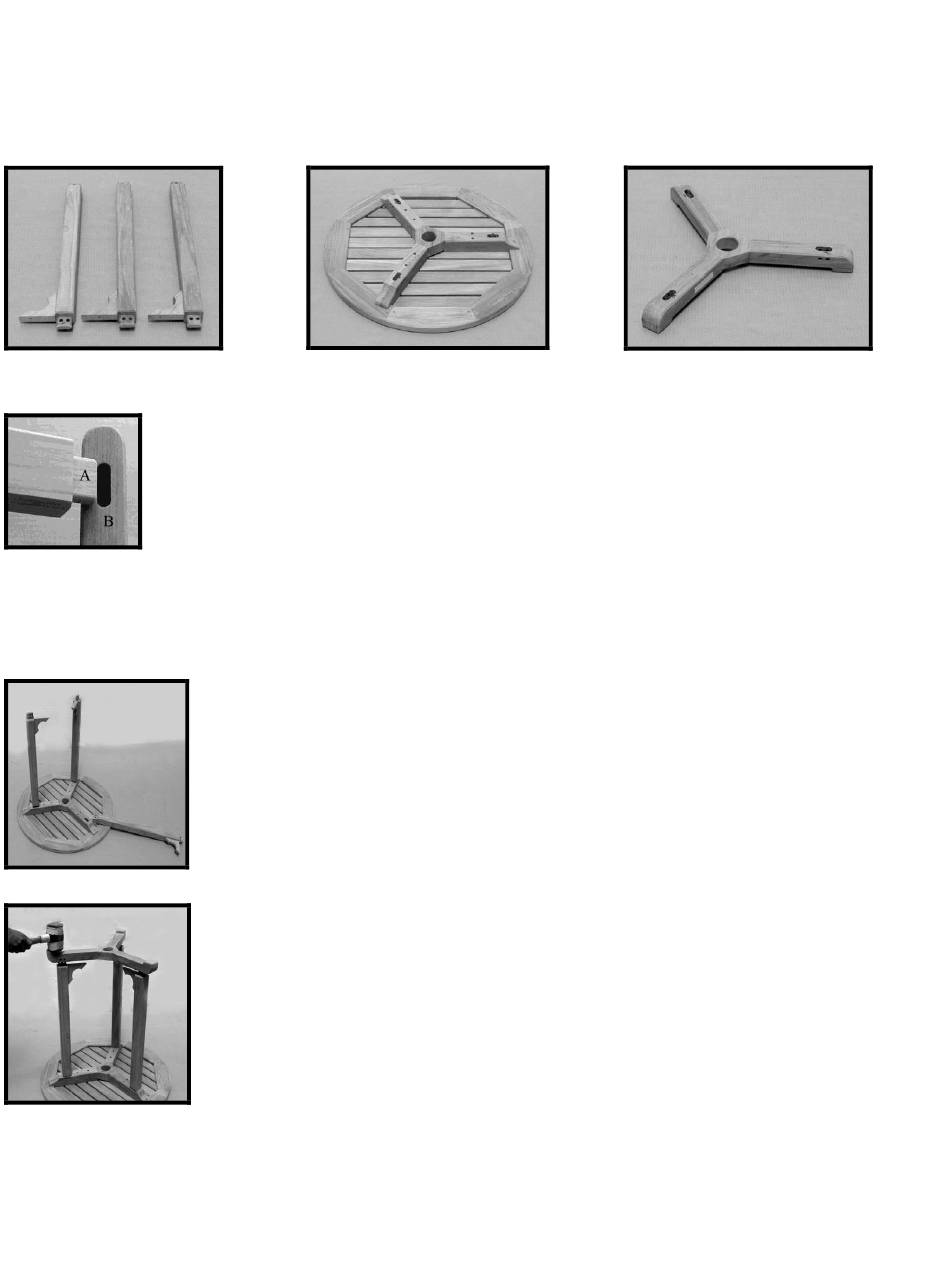

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid

marring the wood.

NOTE: During assembly of the furniture please match all joints with the

corresponding letters or numbers stamped on the furniture.

*NOTE:

A TENON

B MORTISE HOLE

KINGSLEY – BATE

Fine Garden Furniture

TABLE TOP

STEP-II

Place the TABLE TOP face down and carefully insert the LEG

tenons into their respective mortise holes on the underside of the

TABLE TOP. Tenons of the LEGS will be stamped with a number

or letter to correspond with their respective mortise holes on the

TABLE TOP.

STEP-III

Carefully take the BASE and insert the LEG tenons into their

respective mortise holes. Again, please be sure to line up the

stamped numbers or letters. Using a rubber mallet or a regular

hammer with a wood block between the hammer and the wood,

drive the tenons and mortise holes together until all the joints fit

snugly together.

BASE
