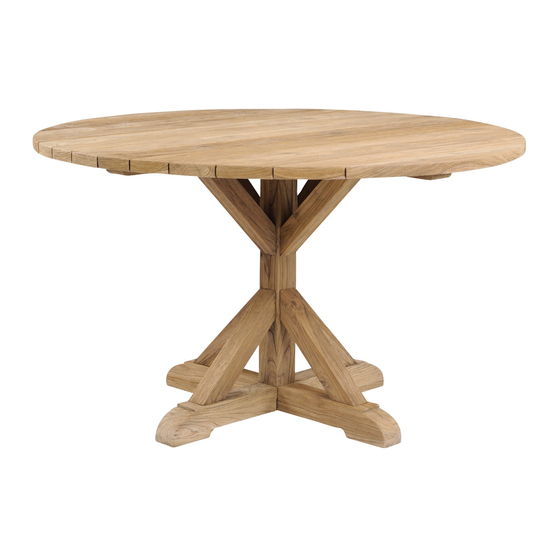

kingsley-bate PV-50 Assembly Instructions

Table

ASSEMBLY INSTRUCTIONS FOR THE PV-50/59

ANGLE BRACKETS

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.

NOTE: During assembly of the furniture please match all joints with the corresponding

letters or numbers stamped on the furniture.

KINGSLEY BATE

Fine Garden Furniture

TABLE TOP

* NOTE

A TENON

B MORTISE HOLE

TABLE BASE

HARDWARE

Table of Contents

Do you have a question about the PV-50 and is the answer not in the manual?

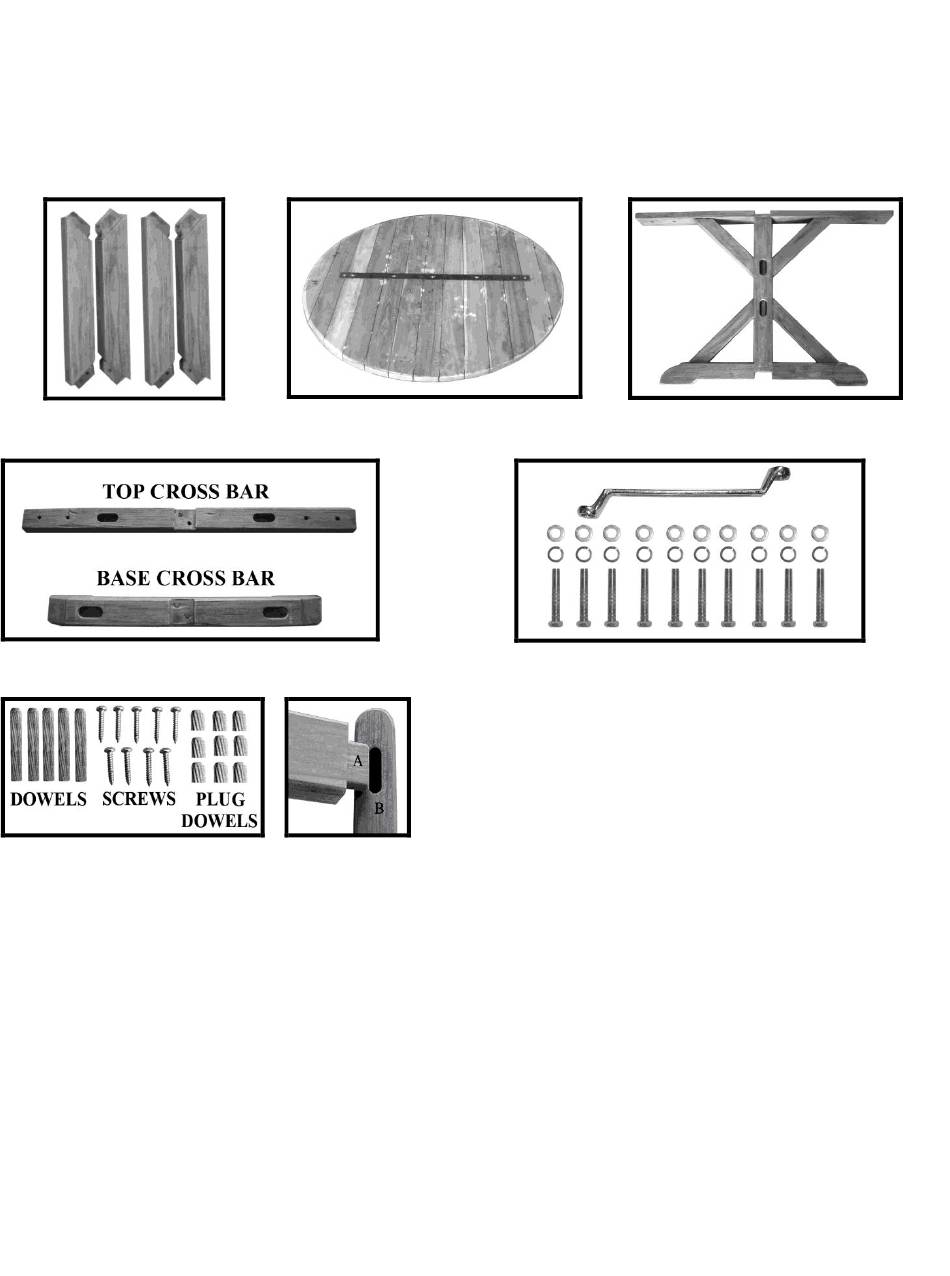

Page 1 KINGSLEY BATE Fine Garden Furniture ASSEMBLY INSTRUCTIONS FOR THE PV-50/59 ANGLE BRACKETS TABLE TOP TABLE BASE HARDWARE * NOTE A TENON B MORTISE HOLE STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
Page 2 STEP-II Upright the TABLE BASE and fit the TOP CROSS BAR along with ANGLE BRACKETS into place as shown in above photographs (NOTE: This is a two person procedure). Drive the tenons and mortise holes together until all joints fit snugly together. STEP-III Drive wooden...
Page 3 STEP-V Flip BASE ASSEMBLY right side up and insert screws into respective pre-drilled holes at the ANGLE BRACKETS as shown in the assembly photograph Do not hammer in the screws, but drive them in with a proper screw driver. Hammer plug dowels into place...
