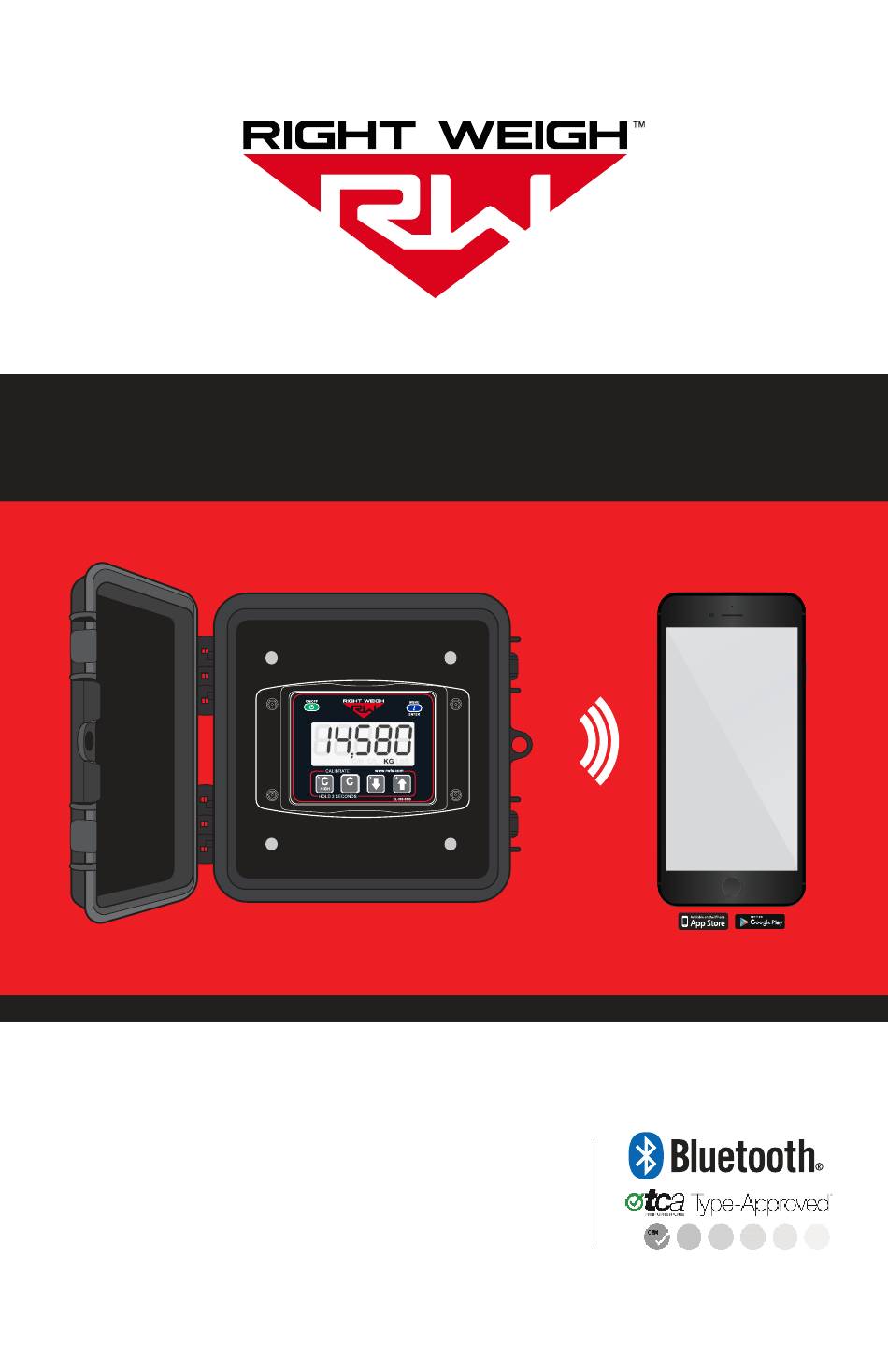

- Page 1 Operation Manual for Vehicle Operator ONBOARD LOAD SCALE 201 SERIES EXTERIOR DIGITAL...
- Page 2 The installation steps in this manual are for the sole use of trained installers. Right Weigh, Inc. accepts no responsibility or liability for issues involving, but not limited to, incorrect installation that occur from misinterpretation of the steps outlined in this document.
-
Page 3: Table Of Contents
EXTERIOR DIGITAL 201-EBT-01(B) The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Right Weigh, Inc. is under license. Other trademarks and trade names are those of their respective owners. -
Page 4: Specifications & Overview
SPECIFICATIONS & OVERVIEW Technical Specifications: Operating Temperature: -22° F to +185° F (-30° C to +85° C) Storage Temperature: -40° F to +185° F (-40° C to +85° C) Power Requirement: 9 VDC to 32 VDC (Switched) Units: Pounds (LBS) or Kilograms (KG) Housing: High impact polycarbonate blend Display: 0.8”... -
Page 5: Operating & Weighing
4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Adjust the suspension or the load itself until the Right Weigh load scale displays a weight value below your legal limit. 6: Press the blue MENU button to display other axle groups or calibration sets. -
Page 6: Mobile Device Connection
Below are the available options: RIGHT WEIGH LOAD SCALE APP Use the Right Weigh Load Scale App if your use case is one of the following: A ) You are not required to have a TCA compliant OBM system B ) You are required to have a TCA Category A Type-Approved OBM system For more information on the Right Weigh Load Scale App, refer to page 7. -
Page 7: Right Weigh Bluetooth™ App
RIGHT WEIGH LOAD SCALE APP CONNECT TO SCALE Go to the Google Play or App Store and download the Right Weigh App! TCA OBM Requirement: To comply with TCA requirements, a special app MUST always be used and setup properly to view vehicle weight. For Category B applications, this app must also be connected to a TCA approved telematics partner on the smart device anytime the vehicle is in use. - Page 8 RIGHT WEIGH LOAD SCALE APP CONNECT TO SCALE Once the app has been downloaded and opened, you will see the home screen with no gauge connected to it and a gross weight of “0”. The Bluetooth connection range is between 100 to...
-
Page 9: Home
RIGHT WEIGH LOAD SCALE APP HOME HOME SCREEN Share Print Menu Gross and Net Weight Tare Scale Name Connection Status Details Axle Group / Details Calibration Set Name Add Scale... - Page 10 View Data - view the data logged by the data saving feature found under Settings. Settings - see page 11 for more information. Contact Us - contact Right Weigh technical support. The app version number is also displayed at the bottom of the menu.
-
Page 11: Scale Details
RIGHT WEIGH LOAD SCALE APP SCALE DETAILS To get to the scale details screen: iOS devices: press the details link shown below the axle weights on the home screen. Android devices: press on the scale name shown on the home screen. -
Page 12: User Settings
RIGHT WEIGH LOAD SCALE APP USER SETTINGS To get to the settings screen, press the menu button on the top left of the home screen and navigate to “Settings” CHANGING UNITS Change the units to either pounds (LB) or kilograms (KG) -
Page 13: Connect To Telematics Device
If your vehicle is equipped with a V-DAQ telematics device, the V-DAQ mobile app must be used in order to connect to the Right Weigh system. The app will connect to each Right Weigh gauge via Bluetooth to collect mass data and manage the vehicle configuration. - Page 14 APPENDIX A GENERAL APP INFORMATION Be sure to add the scales on the app in the correct order (front to back). SCALE 1 SCALE 2 SCALE 3 If the trailer scales are in the wrong order, delete them and re-add them in the correct order.
-
Page 15: Troubleshooting & Revision Log
Drive the vehicle around the block and return to the same location. Acquire a second reading from the Right Weigh gauge. If the two readings are significantly different, then the HCV might be malfunctioning. The scale may be connected to the marker lights. These need to... - Page 16 SCAN FOR ADDITIONAL RESOURCES rightweigh.com.au/manuals-resources/ CONTACT US FOR FOLLOW US! ADDITIONAL SUPPORT RightWeighInc +61 418 622840 rightweigh_inc leigh@rwls.com.au rwlsinc right-weigh-inc- rightweigh.com.au PP-003-0063 Revision F Right Weigh, Inc. November 2021 Hillsboro, Oregon USA ©2015-2021 Right Weigh, Inc. All rights reserved.
