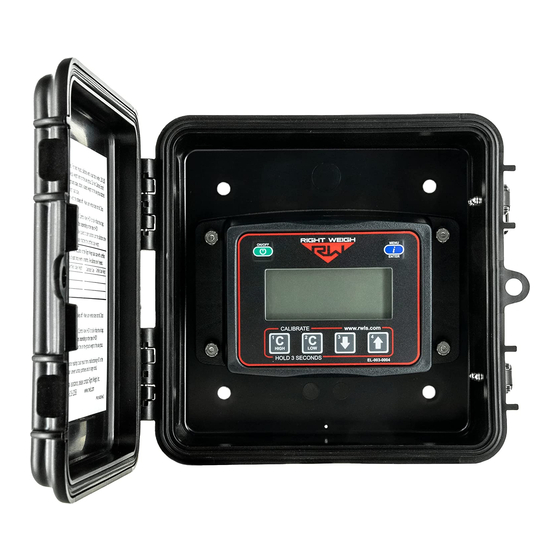

Right Weigh 201-EBT-01B Installation And Maintenance

INSTALLATION, CALIBRATION,
AND MAINTENANCE LOG
FOR 201-EBT-01B, 201-EBT-02B, & 201-EBT-04B
Right Weigh 201-EBT-01B, 201-EBT-02B, and 201-EBT-04B load scales are TCA (Transportation Certification Australia) Type-Approved
Mass Sensor Units (MSUs), part of a Category A and Category B Type-Approved On-Board Mass (OBM) system. This organization approves
automotive technology that follows a set of guidelines to ensure consumer safety and device reliability. For more information visit their
website at: https:/ /tca.gov.au/publication/obm-system-specification/
Please follow the instructions in the Installation & Operation Manual to correctly install and calibrate the MSU. To comply with TCA
requirements, the following pages must be used to record the installation and all calibration and maintenance events. This document must
be kept with the vehicle at all times.

INSTALLATION

Please follow the installation and set-up steps in the Installation & Operation Manual to correctly install the MSU and record the
completion on this form.
Registration Number: _______________________________________________
Vehicle Type(circle one):
MSU Model #(circle one):
MSU Firmware #(check one):
&
MSU Hardware Version:
MSU ID: Bluetooth MAC Address: _______________________________________________
RS232 Serial Number: _______________________________________________
Note: This information can be found on the product label on the outside of the packaging box. If packaging has already been discarded, follow the steps below to identify each value.
1. With the MSU off, press and hold the MENU button, press the ON/OFF button, and then release both. The display will show the MSU Firmware # (ex. 42.010).
2. Press the MENU button 2 times, the display will show the last 4 characters of the MSU ID (ex. 42:28). This will help identify the MSU in the Right Weigh Bluetooth
App where the full MSU ID is displayed.
3. Using the Right Weigh App, first delete the MSU if it has already been connected to. Press "+Add Gauge" to prompt the app to scan for the MSU. Once the app finds
the MSU, it will display the scale name and directly below it will be the MSU ID (ex. 84:71:27:AC:42:28). The last 4 characters of the MSU ID should match the ones
displayed in Step 2.
Operating Mode (circle one):
*Refer to Operating Mode section of Installation & Operation Manual
For information on security seals refer to 909-SSK Installation Manual (PP-003-0081)
Tamper-Evident Label Serial #: _______________________________________________
Enclosure Cable Seal Serial #: _______________________________________________
Bracket Cable Seal Serial # (if applicable): _______________________________________________
Name of Installer: _______________________________________________
Date of Installation: _______________________________________________
Time of Installation: _______________________________________________
Prime Mover
201-EBT-01B
(1 air sensor)
42.008* 42.010*
& &
RWLS-0-42-2(SKU-A) RWLS-0-42-2(SKU-A)
*Category B - Approved for use on prime movers only, Category A - Approved for use on all vehicles
AVG
Category B Only - Security Seals
Trailer
201-EBT-02B
(2 air sensors)
51.001* 52.001*
&
RWLS-0-51-3 RWLS-0-52-1
S-AVG IDP
PP-003-0065 REV N
Dolly
201-EBT-04B
(4 air sensors)
52.002
& &
RWLS-0-52-1
