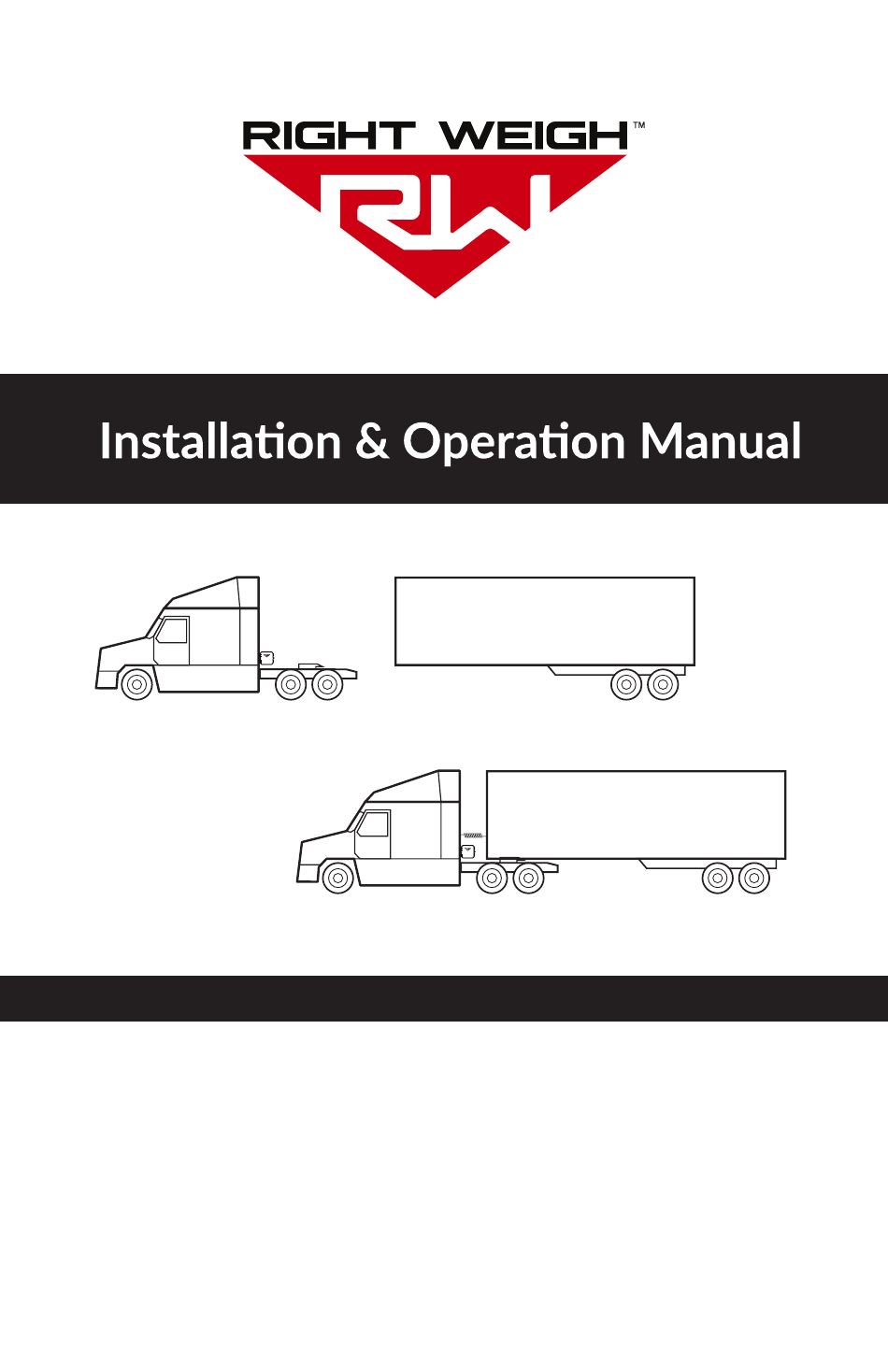

- Page 1 REMOTE SENSOR CONNECTION KIT Used with 201 Series Gauges 403-SK...
- Page 2 The installation steps in this manual are for the sole use of trained installers. Right Weigh, Inc. accepts no responsibility or liability for issues involving, but not limited to, incorrect installation that occur from misinterpretation of the steps outlined in this document.
-
Page 3: Table Of Contents
CONTENTS Parts Included Installation Configure Scale Operating Modes Appendix A Warranty Statement & Return Policy TCA OBM CATEGORY A & B REQUIREMENT: If you are required to have a Transport Certification Australia (TCA) Type-Approved On-Board Mass (OBM) system, the Remote Sensor feature must be DISABLED. -
Page 4: Parts Included
PARTS INCLUDED Please begin by following the installation steps outlined in the 201 series scale and RTK-01/-02 manuals for proper installation of each component before beginning. To use this feature for Drop & Hook tractor-trailer cases, a Remote Sensor must be installed and calibrated on each trailer in use. -
Page 5: Installation
INSTALLATION RS232 FORWARD 201 SERIES GAUGE RS232 BACKWARD REMOTE TRAILER RED = POWER BLACK = GROUND CHOOSE LOCATION FOR DATA COMMUNICATION SOCKET Mount the data communication socket to the back of the tractor where it is accessible to the driver. Using the supplied hardware, mount the mounting bracket in a convenient location on the back of the truck. - Page 6 INSTALLATION ASSEMBLE DATA COMMUNICATION HARNESS, BACK SHELL, AND SOCKET Choose a back shell (straight or angled) that best fits your application. Insert the connector and strain relief bushing into one half of the back shell, making sure the cutouts in the connector are properly aligned with the alignment tabs on the back shell. Fold the other half of the back shell over to fully capture the connector and strain relief bushing;...
- Page 7 INSTALLATION CONNECT ADAPTER HARNESS TO DATA COMMUNICATION HARNESS Match the 4 pin male connector from the Data Communication Harness to the 4 pin female connector on the Adapter Harness. Press the connectors together until they click into place. RS232 Communication (Optional) - For RS232 communication, connect the “RS232 Backward” labeled connectors to one another. RS232 FORWARD ADAPTER HARNESS RS232 BACKWARD...
-
Page 8: Configure Scale
CONFIGURE SCALE The 201-EBT-01(B), 201-EBT-02(B), and the 201-EBT-04(B) scales can display a separate axle group weight attached to any Right Weigh Remote Sensor. This is most commonly used in drop & hook trailer situations so that one scale - mounted on the tractor - can plug into to many different trailers, each with its own remote sensor. -
Page 9: Operating Modes
Before operation, all axle groups require calibration at both an empty and a loaded weight. For information on setting a CALIBRATION, changing UNITS, setting a PIN code, OPERATION, and other scale information, please refer to the 201 series scale manual. - Page 10 APPENDIX A The numbers on the images indicate the axle groups that will be displayed on the gauge. To cycle through the axle group on the gauge, press the MENU button. AIR SUSPENSION SPRING SUSPENSION VEHICLE CONFIGURATION OPERATING MODE ON/OFF MENU ENTER “1”...
-
Page 11: Warranty Statement & Return Policy
Right Weigh, Inc. will return the product at its expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer. - Page 12 (888) 818-2058 - Toll Free (USA ONLY) Australia - +61 418 622840 rightweigh_inc support@rwls.com rwlsinc Australia - leigh@rwls.com.au right-weigh-inc- www.rwls.com/how-to-calibrate-install/ Australia - rightweigh.com.au PP-003-0084 Revision A Right Weigh, Inc. November 2021 Hillsboro, Oregon USA ©2015-2021 Right Weigh, Inc. All rights reserved.
