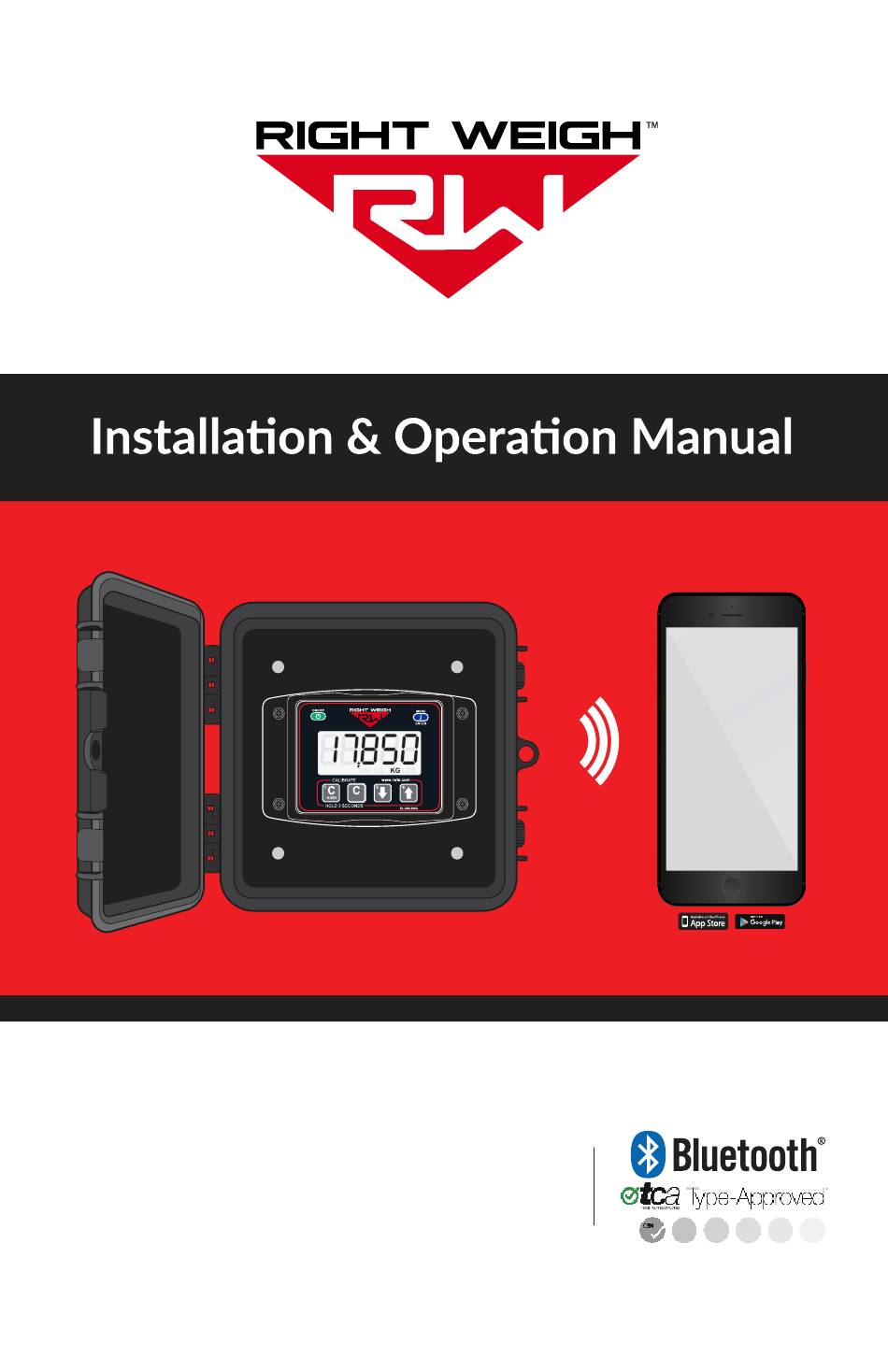

  • Page 1 ONBOARD LOAD SCALE 201-EBT-04(B) EXTERIOR DIGITAL...
  • Page 2 IMPORTANT! Please read instructions COMPLETELY and thoroughly before installation. Right Weigh, Inc. is not responsible or liable for product failure or vehicle damage due to improper installation. The installation requirements are outlined in this manual and should be followed thoroughly to avoid inaccuracy or damage to the product.
  • Page 3: Table Of Contents

    EXTERIOR DIGITAL 201-EBT-04(B) The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Right Weigh, Inc. is under license. Other trademarks and trade names are those of their respective owners.
  • Page 4: Specifications & Overview

    SPECIFICATIONS & OVERVIEW The Right Weigh 201-EBT-04B digital load scale has four internal air pressure sensors. This scale can monitor a tandem axle air suspension drive group where all 4 air bags can have differing pressures. The 4 pressures are averaged together so that a weight can be properly calculated.
  • Page 5 fifth wheel. Remote Sensor Feature: The 201-EBT-04(B) scale has the capability of connecting to a remote sensor that has been installed on a separate vehicle, most commonly used in drop & hook situations. For more information about this feature, please refer to the separate 403-SK Installation Instruction Manual (PP-003-0084).
  • Page 6 SPECIFICATIONS & OVERVIEW Technical Specifications: Operating Temperature: -22° F to +185° F (-30° C to +85° C) Storage Temperature: -40° F to +185° F (-40° C to +85° C) Power Requirement: 9 VDC to 32 VDC (Switched) Units: Pounds (LBS) or Kilograms (KG) Housing: High impact polycarbonate blend Display: 0.8”...
  • Page 7: Tca Compliance Information

    TCA COMPLIANCE INFORMATION The 201-EBT-04B is a Transport Certification Australia (TCA) Type-Approved Mass Sensor Unit (MSU) part of a Type-Approved On-Board Mass (OBM) system. This organization approves automotive technology that follows a set of guidelines to ensure consumer safety and device reliability. For more information visit their website at: https:/ /tca.gov.au/publication/obm-system-specification/ The 201-EBT-04B is approved for use in both Category A and Category B...
  • Page 8 TELEMATICS DEVICE The prime mover must have an approved telematics device installed and the device must be connected to the Right Weigh system. SECURITY SEALS Security seal kit p/n 909-SSK must be used to secure the MSU to the vehicle at the time of installation.
  • Page 9: Scale Installation And Electrical Connections

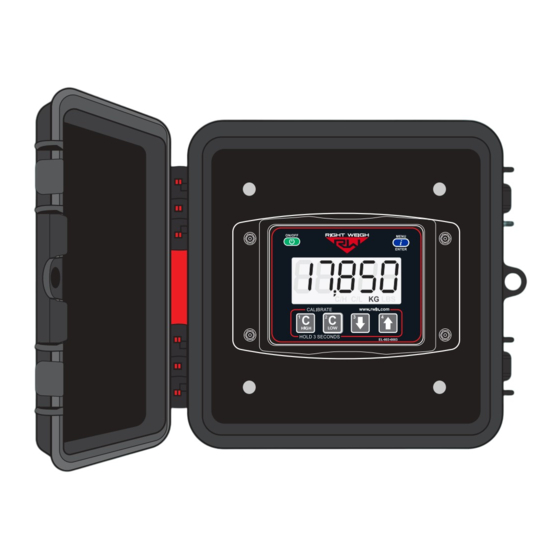

    & ELECTRICAL CONNECTIONS CHOOSE LOCATION The 201-EBT-04 scale is designed to be mounted on the outside of a truck or trailer, however it must still be mounted in a protective enclosure. A protective box and mounting bracket are included with the 201-EBT-04B.
  • Page 10 SCALE INSTALLATION & ELECTRICAL CONNECTIONS CUT EXISTING AIR LINE Cut the air line going to one of the air bags in the suspension group to be monitored. ASSEMBLE TEE FITTING Choose a tee fitting that matches the size of the existing air line, then install a female NPT tube fitting onto the tee as shown.
  • Page 11 SCALE INSTALLATION & ELECTRICAL CONNECTIONS If using the Remote Sensor Feature, stop these instructions at this time and follow the instructions on the 403-SK installation manual to finish product installation. INSTALL POWER CABLE CONNECTION HARNESS BLACK = GROUND RED = POWER Insert the male connector on the harness onto the female connector on the back of the scale.
  • Page 12 SCALE INSTALLATION & ELECTRICAL CONNECTIONS LOG INSTALLATION EVENT TCA OBM Requirement: Installation Log (PP-003-0065 page 1) must be completed at the time of installation. For more information on TCA requirements, refer to pages 7-8.
  • Page 13: Operating Modes

    OPERATING MODES Each vehicle configuration requires a specific operating mode. The modes available on this gauge are: AVG -Tractor or Trailer, One Axle Group (4 HCV) S-AVG - Tractor Drive’s (4 HCV) and Estimated Steer See the tables on the following pages to find your vehicle configuration and set the gauge to the corresponding operating mode.
  • Page 14: Tractor

    OPERATING MODES The numbers on the images indicate the axle groups that will be displayed on the gauge. To cycle through the axle group on AIR SUSPENSION SPRING SUSPENSION the gauge, press the MENU button. TRACTOR VEHICLE CONFIGURATION OPERATING MODE Axle Group 1 - Estimated Steer Axle Group 2 - Air Suspension ON/OFF...
  • Page 15: Trailer / Dolly

    OPERATING MODES TRAILER / DOLLY VEHICLE CONFIGURATION OPERATING MODE EXAMPLE: Air Suspension Single, Tandem, or Tri Axle Group (2 HCV) with 1 Integrated Air Ride Lift Axle This trailer axle group has 1 integrated lift axle. Calibration set “1” is when the lift axle is up and set “2”...
  • Page 16: Calibration & Unit Of Measure

    CALIBRATION The 201-EBT-04(B) load scale must be calibrated both empty and loaded to work properly. The scale associates the weight you enter with the air pressure in the suspension system at the time of calibration. You will need to calibrate once while the vehicle is empty, and again while the vehicle is loaded for each axle group being monitored.
  • Page 17 CALIBRATION & UNIT OF MEASURE 4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Press the blue MENU button to select the proper axle group or calibration set. 6: Press and hold the C HIGH button until the “C/H” symbol appears.
  • Page 18: Security Pin Code

    SET SECURITY PIN CODE PRESS With the gauge off, press and hold both the C LOW and C HIGH buttons, then press the ON/OFF button. Release all three buttons. The gauge will display "CodE". HOLDING Press the MENU button and PRESS “00000”...
  • Page 19: Change

    CHANGE SECUTIRY PIN CODE PRESS With the gauge off, press and hold both the C LOW and C HIGH buttons, then press the ON/OFF button. Release all three buttons. The gauge will display "CodE". HOLDING Press the MENU button and PRESS “-----”...
  • Page 20: Operate & Weigh

    4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Adjust the suspension or the load itself until the Right Weigh load scale displays a weight value below your legal limit. 6: Press the blue MENU button to display other axle groups or calibration sets.
  • Page 21: Mobile Device Connection

    MOBILE DEVICE CONNECTION RIGHT WEIGH LOAD SCALES APP download Scan here to the “Right Weigh Load Scales” App directly from the App store TCA OBM Requirement: To comply with TCA requirements, a special app MUST always be used and setup properly to view vehicle weight. For Category B applications, this app must also be connected to a TCA approved telematics partner on the smart device anytime the vehicle is in use.
  • Page 22: Maintenance

    MAINTENANCE To be sure the gauge remains accurate, proper maintenance and re-calibration is required every 6 months or when changes/repairs to the suspension have taken place. Follow the steps on the Maintenance Log (PP-003-0065 page 4) and check the corresponding box after each test is performed with a passing result. Once all tests are passed, re-calibrate the gauge;...
  • Page 23: Troubleshooting

    Drive the vehicle around the block and return to the same location. Acquire a second reading from the Right Weigh gauge. If the two readings are significantly different, then the HCV might be malfunctioning. Check that all air inputs are receiving air. Pull airline out of air Gauge reading “noAir”...
  • Page 24 PIN before calibration data can be changed. To understand how to code reset the PIN code, see page 16. If the PIN code has been forgotten, please call Right Weigh technical support listed on page 2 for further assistance.
  • Page 25: Appendix A - Additional Parts

    APPENDIX A The following is a list of additional parts needed for air line installation. This list is just a suggestion and may not be all of the parts needed for your specific vehicle. These parts are sold separately in the 103-SK kit: 1/4 Inch Air Line Approximately 6 to 9 meters...
  • Page 26: Appendix B - Wiring Insulation

    APPENDIX B It is important that all wiring connections be made watertight. Connections which are not watertight can develop corrosion and result in loss of contact over time. Heat shrink type butt connectors are recommended. Crimp each end of the wire into the connector with a wire crimp tool (tool not provided).
  • Page 27: Appendix C - Estimated Steer

    APPENDIX C ESTIMATED STEER Estimated Steer is an estimated readout of the steer axle weight without using a sensor on the steer axle. The way this works is the user inputs calibration data for the steer axle both empty and loaded. The scale associates the entered weights to the pressure measured from the drive axle air suspension at the time of calibration.
  • Page 28 NOTES...
  • Page 29: Revision Log

    REVISION LOG REVISION SUMMARY AUTHORIZED BY DATE Preliminary Release H. Gooding 10/15/20 Added 12 pin connector and Drop & Hook Trailer connection 1/18/21 H. Gooding instructions Removed overweight warning, moved remote sensor feature to 8/16/21 H. Gooding separate manual (PP-003-0082) Added all TCA OBM Category B requirements, removed RWLS 10/20/21 H.
  • Page 30: Warranty Statement

    (including loss of profits or loss of time) resulting from the performance of a Right Weigh, Inc. product. In all cases, Right Weigh, Inc. liability will be limited to the original cost of the product in question. Right Weigh, Inc. reserves the right to make improvements in design, construction, and...
  • Page 31: Return Policy & Repairs

    Right Weigh, Inc. will return the product at its expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer. Products or parts thereof not covered by warranty will be repaired or replaced at customer expense upon authorization by the customer.
  • Page 32 SCAN FOR ADDITIONAL RESOURCES rightweigh.com.au/manuals-resources/ CONTACT US FOR FOLLOW US! ADDITIONAL SUPPORT RightWeighInc +61 418 622840 rightweigh_inc leigh@rwls.com.au rwlsinc right-weigh-inc- rightweigh.com.au PP-003-0075 Revision D Right Weigh, Inc. October 2021 Hillsboro, Oregon USA ©2015-2021 Right Weigh, Inc. All rights reserved.
